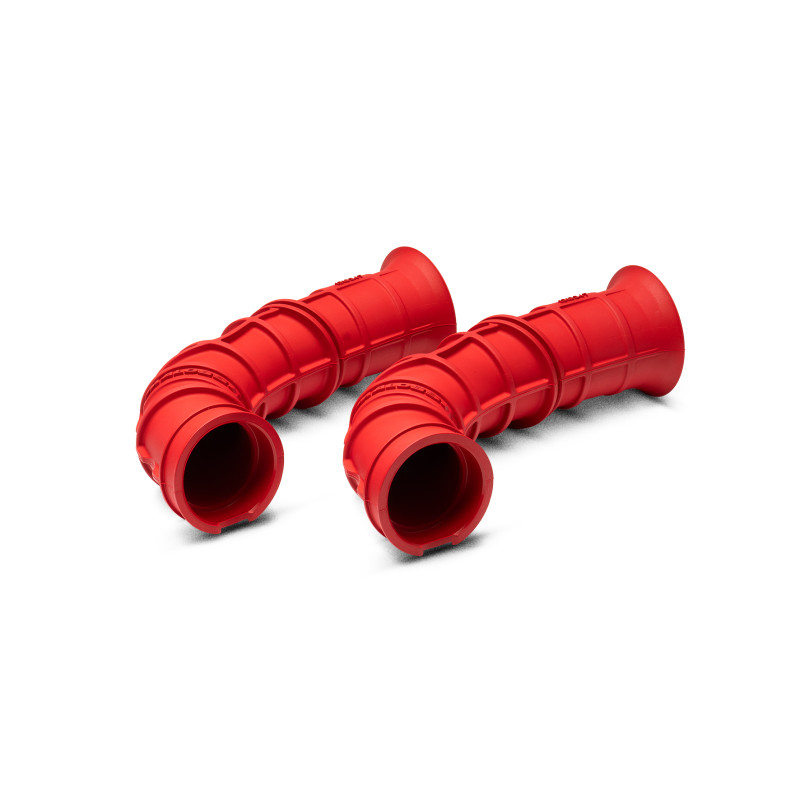

Malossi intake manifold horns for T-Max 560

Increase the power of your T-Max 560 at high revs without sacrificing the mid-range. How?
By replacing your T-Max 560 intake manifold horns with Malossi one code 0519910, which improve the performance of original engines and express their maximum potential on those using modified exhausts — like Malossi Wild Lion — and more efficient air filters — like our W BOX code 1419312B.

Optimizing the airflow between the airbox and the throttle bodies contributes to better engine performance. How to achieve it? With a hose that favors a more linear and less curved duct, aiming for maximum performance at high revs while minimizing pressure losses.

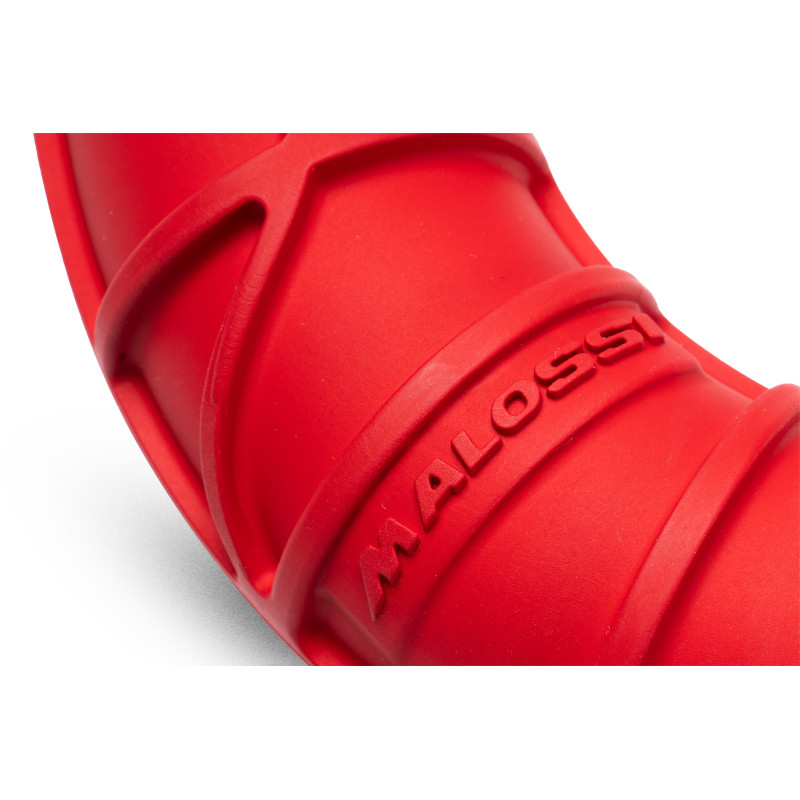

The intake manifold horns for T-Max 560 code 0519910 must support constant and intense vibrations. That’s why we made it with SHORE A 75 hardness, a perfect blend of the required resistance and flexibility characteristics. Additionally, the ribs on the Malossi horn help maintain shape under load and absorb impacts and pressures, preventing cracks or breaks.

Main features

• Total length: 210 mm.
• Base diameter: Ø 36 mm.
• Max diameter: Ø 42 mm.
• Tapered section length: 90 mm.
• Material: FKM SHORE A 75 hardness.
• Color: red.

Produkte, die ausschließlich für Wettkämpfe an den dafür vorgesehenen Orten gemäß den Bestimmungen der zuständigen Sportbehörden bestimmt sind. Wir übernehmen keine Haftung für unsachgemäße Verwendung.

Dokumente und Videos

• Montageanleitung (PDF)
