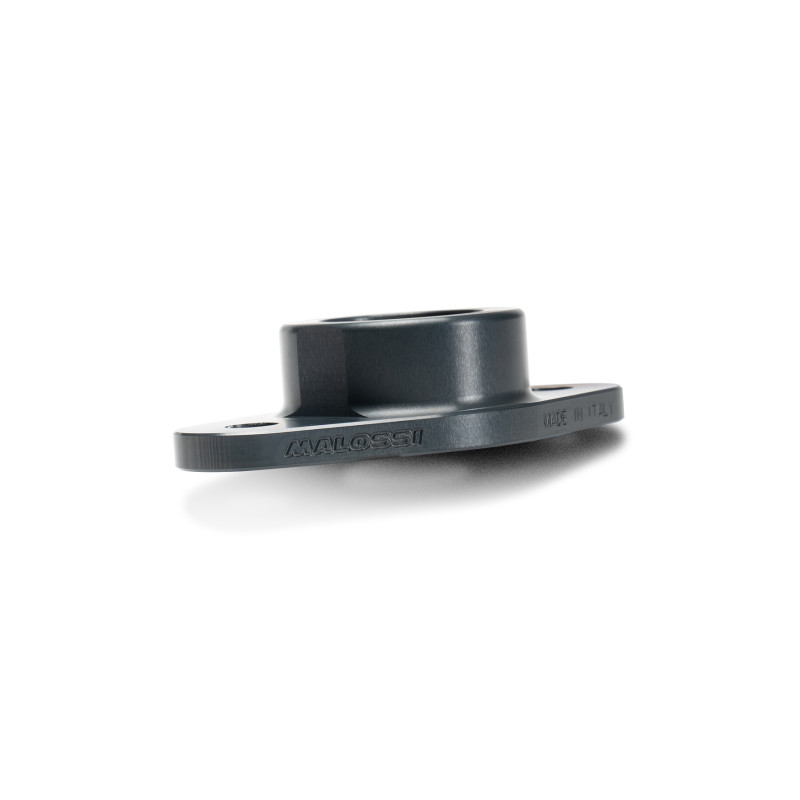

Front shock absorber support

The Malossi front shock absorber support connects the front fork to the shock absorber just like the original Piaggio part, but it does it better: it makes the front end more responsive to road surface irregularities and eliminates rubber spacers.

How we produced it

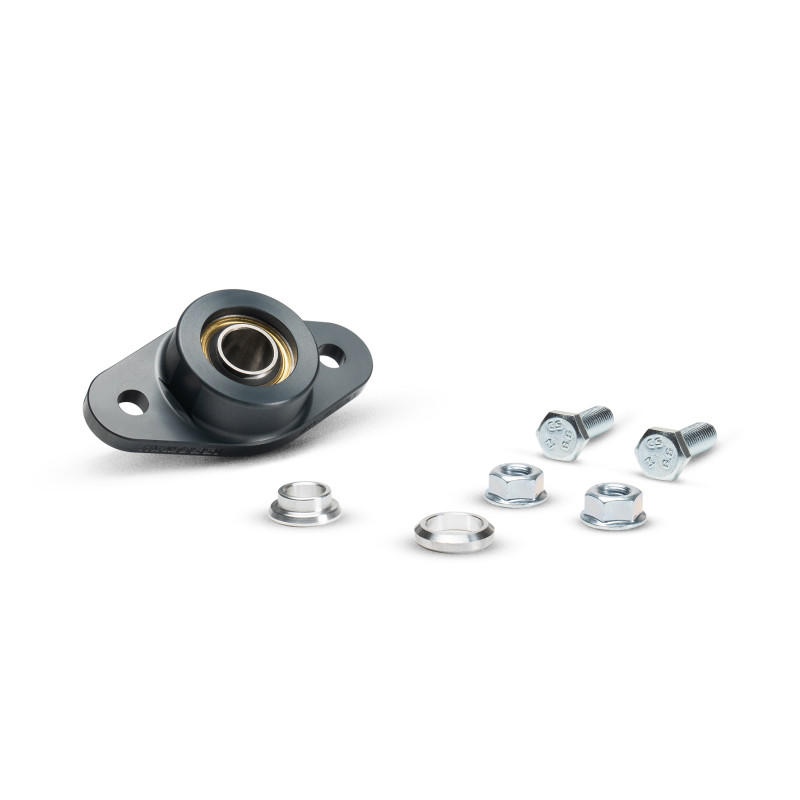

We machined the bracket from solid Ergal 7075 aluminium, anodised to match the ZIP front-end line (RS24 shock absorber and swingarm), and designed an assembled support (bracket, unibal, and seeger) with two aluminium spacers, nuts, and bolts for fork mounting.
Yes, it comes complete with everything that’s needed for installation.

The Malossi front shock absorber support is compatible with Zip, Quartz, Skipper, and ET4, as well as all shock absorbers with a 14mm mounting diameter.

Key features

Why choose the Malossi front shock absorber support? Its features make it significantly more high-performing than the original Piaggio component:

• Anodised Ergal aluminium bracket, machined from solid with state-of-the-art CNC tools.
• Unibal connection system with reduced play and specially designed aluminium spacers, replacing the original rubber inserts. What’s the result? A stiffer, more responsive front end and reduced shock absorber flex stress.

Dokumente und Videos

• Montageanleitung (PDF)
