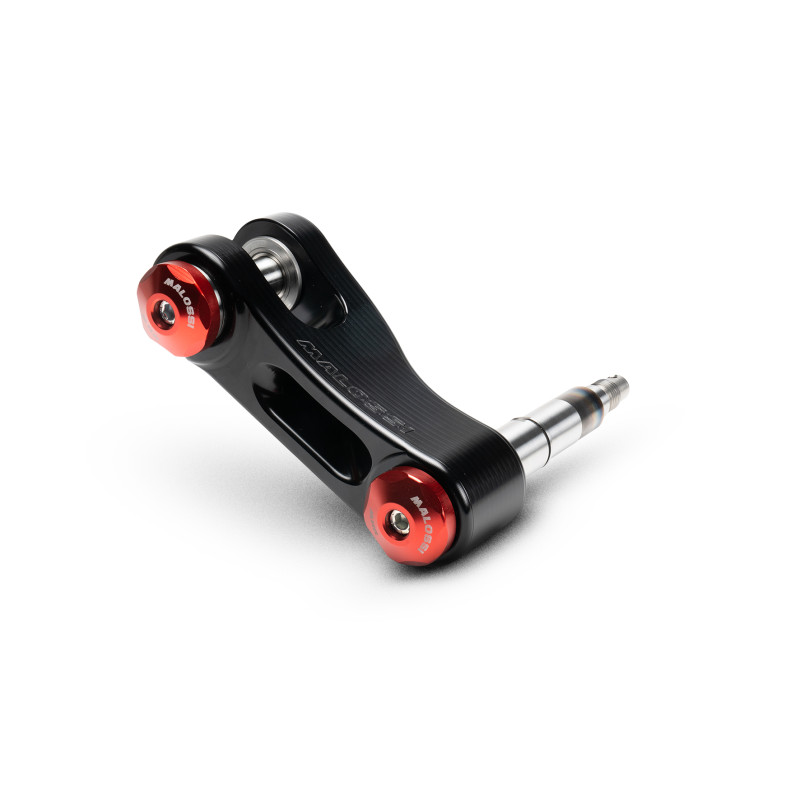

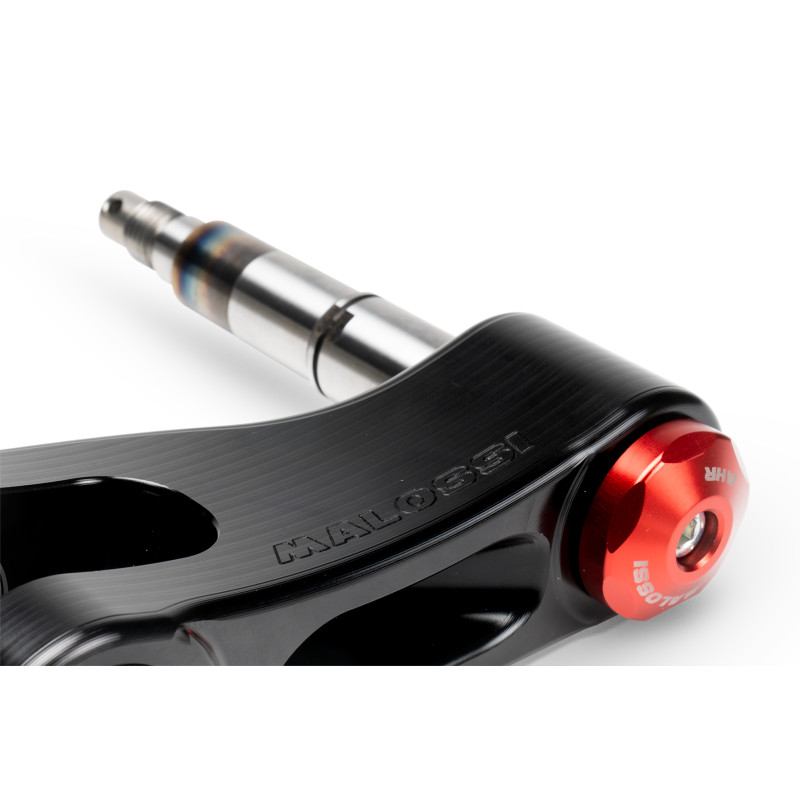

The original Zip SP swing arm holds its own, but Malossi takes things a step further. Our front fork swing arm is carved from a solid block of Ergal through precision CNC machining with a black anodised finish. By machining from billet rather than using a standard casting process, we eliminate porosity and structural weak points. The result is a signature Malossi component that is more reliable and looks significantly better.

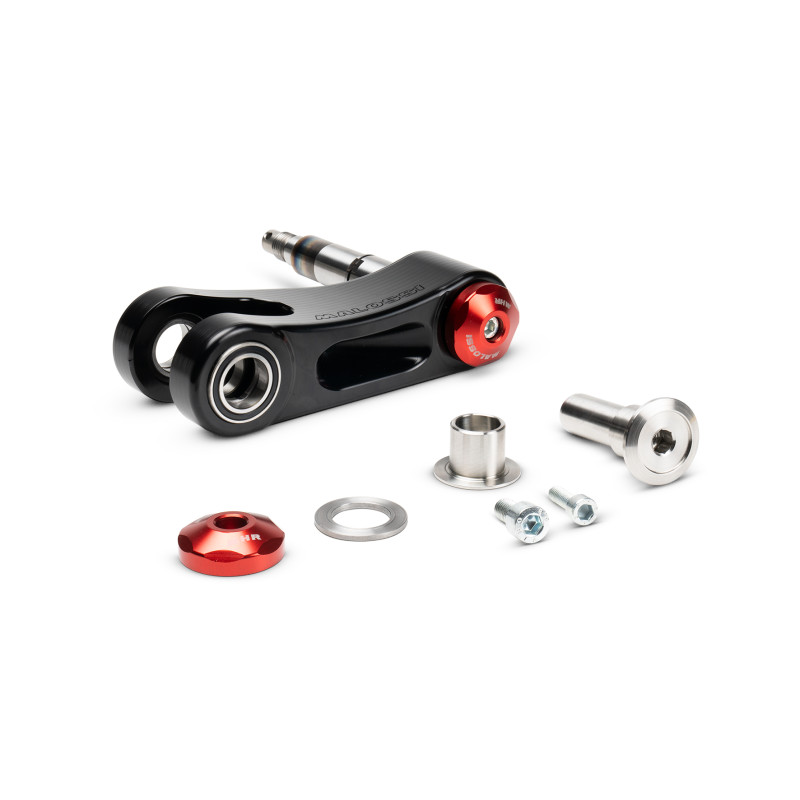

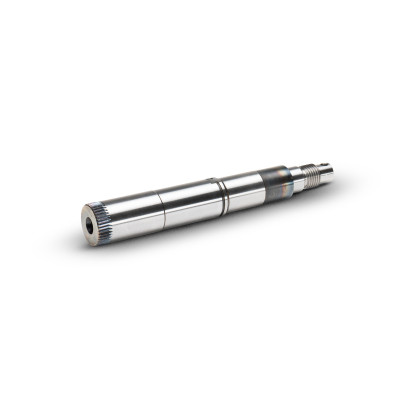

The kit includes everything you need to fit it: a pre-assembled wheel axle, a connector, and two red anodised aluminum caps. It installs using the provided bolts and is fully compatible with original Piaggio spares as well as the MHR complete front wheel hub 2319692B.

We didn't just build it; we engineered it. We started by sectioning and analysing the original material, followed by a 3D scan to create a perfect CAD replica. Using FEM analysis, we mapped out how stress moves through the part, pinpointing exactly where it needed more rigidity. With those insights, our technical team redesigned the Malossi swing arm to push performance limits even higher.

Article added to the catalog on March 4, 2026

Technical specifications

• Material: black anodised CNC-machined billet Ergal
• Complete kit includes: assembled wheel axle, fitting, and two red anodised aluminum caps
• Compatible with original Piaggio parts and the MHR complete front wheel hub art. 2319692B
• Hardware: all necessary bolts included
• Durability: superior resistance to corrosion, wear and tear as well as mechanical stress

Compatibility: Piaggio Zip SP 50 2T LC (<-2000)
Piaggio Zip SP 50 2T LC (2001->)

Dokumente und Videos

• Montageanleitung (PDF)
• Video ansehen
