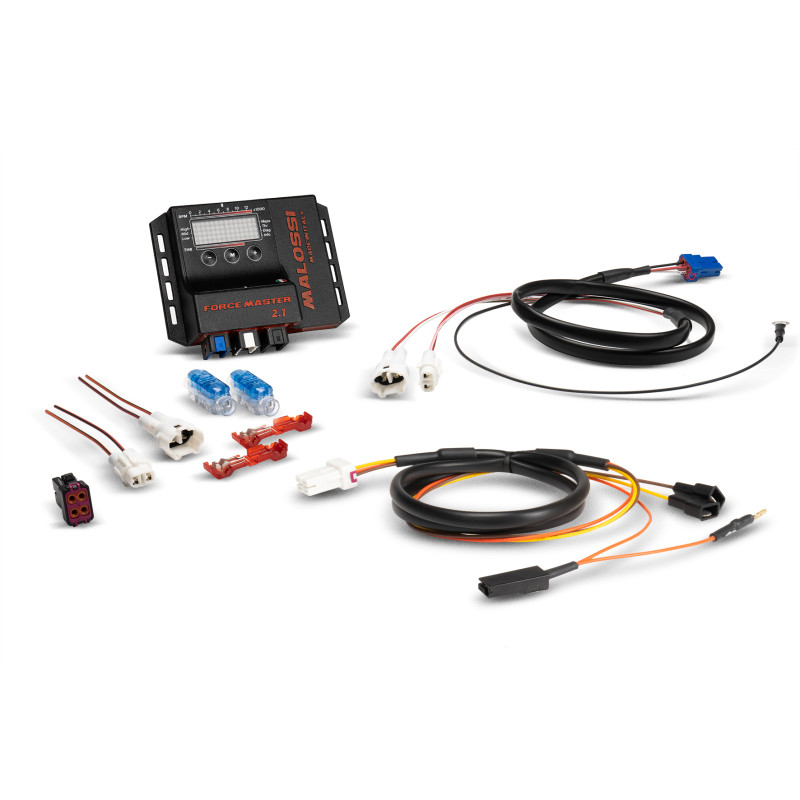

With an all-new look, the Force Master 2.1 control unit is much easier to configure. Making products more ergonomic and easy to use has always been a Malossi goal: Force Master 2.1 is a contemporary, adequate and super performing product. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter. Technical details Carburation adjusting ±…

VESPower Ignitions Range of complete ignitions for vintage gear Vespa. In order to allow an easy and perfect installation, a specific version for each model has been studied. The new ignition range features: Lightened flywheel (weight 1,2 kg) with moment of inertia equal to 28 Kg/cm² (see attached chart). It is made from forged with external set up for additional masses (not included into the kit). 12 V (90 Watt ) 4-pole stator with output for battery charging. Red colored plastic fan with advanced booster cooling secondary fins (optimized fan profile and distribution absorption). Wiring…

ELEKTRONISCHE STEUERUNGEN Die ständige Weiterentwicklung der Elektronik im Motorensektor hat Malossi dazu veranlasst, eine umfassende Serie von elektronischen Steuerungen für Straßen- und Rennscooter zu verwirklichen und zu vertreiben, die dem höchsten Stand der Technik entsprechen. Jede Steuerung wurde speziell für ein spezifisches Scootermodell entwickelt, wozu nach zahlreichen Tests auf festen und mobilen Prüfständen, sowie auf Rennstrecken eine optimale Zündcharakteristik (fest und variabel) definiert wurde, um eine maximale Leistung des Fahrzeugs zu erzielen. Die elektronischen…

With an all-new look, the Force Master 2.1 control unit is much easier to configure. Making products more ergonomic and easy to use has always been a Malossi goal: Force Master 2.1 is a contemporary, adequate and super performing product. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter. Technical details Carburation adjusting ±…

Besides its improved fuel curves, efforts from Malossi’s technical staff resulted with a rev limiter increase depending on the vehicle, making Force Master an even higher performing ECU! Force Master allows to change the injection in order to fit perfectly the Malossi 4-stroke and original cylinders. Carburation adjusting ± 20% at min/medium/max RPM limiter : Original 9.300 - Malossi 9.300 (*) 4 different maps : curve 0 : Malossi exhaust system with db killer, original cylinder, original head, original camshaft and original filter curve 1 : original exhaust system, Malossi cylinder, original…

LIMITLESS Have you heard of the theory that argues we use only twenty per cent of our brain? With Force Master 3 you'll use a hundred per cent... of your engine! To improve our most advance control module, we designed with vision, starting with the milestones achieved so far. Thus was conceived Force Master 3, a futuristic control module both in hardware and in software. INTEGRATED LAMBDA EMULATOR The original control module of the scooter, for analysis of the air/fuel ratio and to adjust the carburetion accordingly, normally interfaces with the lambda sensor installed on the silencer. force…

INNER ROTOR IGNITION Such a new system resulted from the need to overcome the technical limitations imposed by conventional flywheel ignition, which cannot ensure consistent performance over 10,000 rpm and causes severe setting-up problems for racing vehicles. After opting for a radical solution of the problem, Malossi can now offer control units equipped with an inner rotor that provides regular performance till 16,000 rpm and eliminates all problems associated with conventional ignition units. TECHNICAL SPECIFICATIONS Variable spark advance control unit Microprocessor control S.M.T.…

With an all-new look, the Force Master 2.1 control unit is much easier to configure. Making products more ergonomic and easy to use has always been a Malossi goal: Force Master 2.1 is a contemporary, adequate and super performing product. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter. Technical details Carburation adjusting ±…

Wir empfehlen den Einsatz des O2 Lambda Emulator zur Optimierung der Einspritzmenge und Leistung beim Lastwechsel. Bei den Motorrädern der neuesten Generation, dank des Lambda Emulator, ist die CDI imstande, die optimale Kraftstoffmenge zu bestimmen, um ein sehr stabiles Luft/ Kraftstoff Gemisch auch im "Closed Loop"-Bereich zu gewährleisten. Das Malossi Modul simuliert das original Signal und stimmt es zusätzlich auf ein von Malossi auf Luft/Kraftstoff Verhältnis perfekt abgestimmtes ab. So erzielt Malossi eine optimale Einspritzmenge ohne eine Fehlermeldung an die CDI zu übertragen.

Wir empfehlen den Einsatz des O2 Lambda Emulator zur Optimierung der Einspritzmenge und Leistung beim Lastwechsel. Bei den Motorrädern der neuesten Generation, dank des Lambda Emulator, ist die CDI imstande, die optimale Kraftstoffmenge zu bestimmen, um ein sehr stabiles Luft/ Kraftstoff Gemisch auch im "Closed Loop"-Bereich zu gewährleisten. Das Malossi Modul simuliert das original Signal und stimmt es zusätzlich auf ein von Malossi auf Luft/Kraftstoff Verhältnis perfekt abgestimmtes ab. So erzielt Malossi eine optimale Einspritzmenge ohne eine Fehlermeldung an die CDI zu übertragen.

Malossi is proud to offer its new Digitronic ECU with variable ignition timing! Compared to the original ECU, Malossi has completely modified the ignition timing performance maps and increased the rev limit to 15,000 RPMs. The new Digitronic controls the ignition timing and SAS valve. Ignition Timing Performance Map The ignition timing is controlled by performing a linear interpolation of a tri-dimensional performance map, containing 16 break points for engine speed and 8 break points for engine temperature. SAS Valve Performance Map The secondary air supply to the base of the throttle body…
