The Injtronic engine control unit is the natural evolution of the original Piaggio system and enhances vehicle performance. The latest generation 32 bit microprocessor and hardware designed according to the most recent automotive quality standards make up the RACING DNA of this device. Designed to be plug & play, in other words compatible with the original sensors and actuators, the control unit only needs simple throttle calibration to synchronize the engine electronic control system. The calibrations and fine-tuning allow for a definite increase in engine performance. Technical features…

Besides its improved fuel curves, efforts from Malossi’s technical staff resulted with a rev limiter increase depending on the vehicle, making Force Master an even higher performing ECU! Force Master allows to change the injection in order to fit perfectly the Malossi 4-stroke and original cylinders. Carburation adjusting ± 20% at min/medium/max RPM limiter : Original 9.300 - Malossi 9.300 (*) 4 different maps : curve 0 : Malossi exhaust system with db killer, original cylinder, original head, original camshaft and original filter curve 1 : original exhaust system, Malossi cylinder, original…

Malossi is proud to offer its new Digitronic ECU with variable ignition timing! Compared to the original ECU, Malossi has completely modified the ignition timing performance maps and increased the rev limit to 15,000 RPMs. The new Digitronic controls the ignition timing and SAS valve. Ignition Timing Performance Map The ignition timing is controlled by performing a linear interpolation of a tri-dimensional performance map, containing 16 break points for engine speed and 8 break points for engine temperature. SAS Valve Performance Map The secondary air supply to the base of the throttle body…

Die Verwendung des neuen O 2 Controllers ermöglicht die Steuerung der Vergasung in dem Bereich, in dem die Lambda-Sonde die Art des in den Brennraum einzuführenden Luft-Benzin- Gemisches steuert. Dieses Gerät ist in der Lage, die Lambdasonde bei einem vom stöchiometrischen Wert abweichenden Wert arbeiten zu lassen und das A/F (Luft / Kraftstoff-Verhältnis) anzureichern, um Drehmoment und Leistung zu verbessern und gleichzeitig die DNA des Motors zu respektieren. Das Hauptziel der Forschungs- und Entwicklungsabteilung von Malossi besteht darin, sicherzustellen, dass jedes Fahrzeug über eine…

With an all-new look, the Force Master 2.1 control unit is much easier to configure. Making products more ergonomic and easy to use has always been a Malossi goal: Force Master 2.1 is a contemporary, adequate and super performing product. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter. Technical details Carburation adjusting ±…

Besides its improved fuel curves, efforts from Malossi’s technical staff resulted with a rev limiter increase depending on the vehicle, making Force Master an even higher performing ECU! Force Master allows to change the injection in order to fit perfectly the Malossi 4-stroke and original cylinders. Carburation adjusting ± 20% at min/medium/max RPM limiter : + 1000 RPM 4 different maps : curve 0 : original exhaust system, cylinder with kit Malossi ø 61 mm 125 cc., original head, original camshaft and original filter curve 1 : Malossi exhaust system with db killer, cylinder with kit Malossi ø…

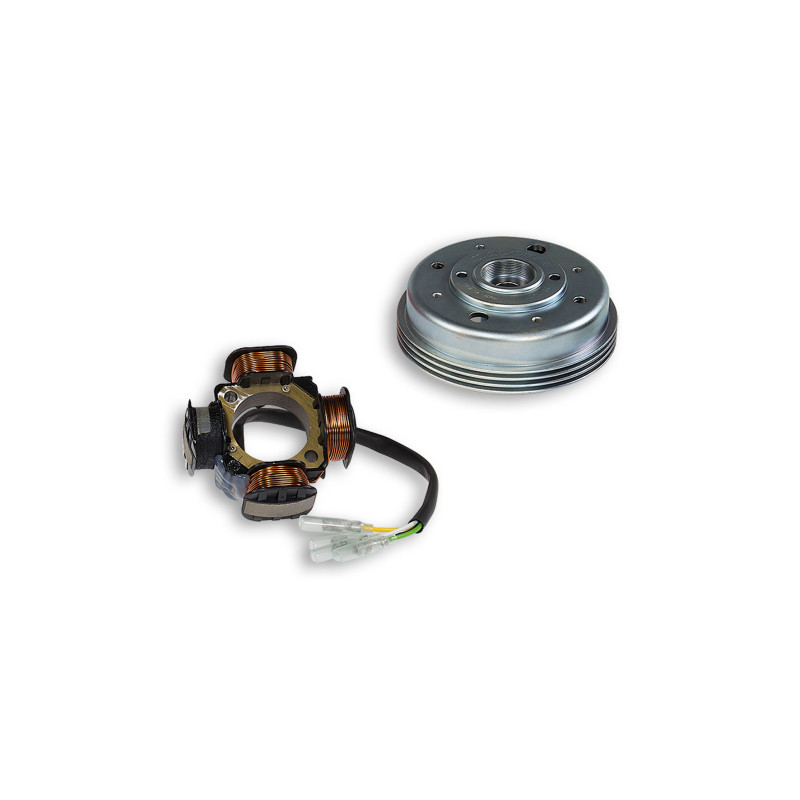

VESPower Ignitions Range of complete ignitions for vintage gear Vespa. In order to allow an easy and perfect installation, a specific version for each model has been studied. The new ignition range features: Lightened flywheel (weight 1,2 kg) with moment of inertia equal to 28 Kg/cm² (see attached chart). It is made from forged with external set up for additional masses (not included into the kit). 12 V (90 Watt ) 4-pole stator with output for battery charging. Red colored plastic fan with advanced booster cooling secondary fins (optimized fan profile and distribution absorption). Wiring…

The inner rotor ignition systems designed by Malossi are based on the state-of-the-art technology applied to racing. Such a new system resulted from the need to overcome the technical limitations imposed by conventional flywheel ignition, which cannot ensure consistent performance over 10,000 rpm and causes severe setting-up problems for racing vehicles. We made the control unit even more immune to interferences developing an uP STM8 - 8 bit microprocessor with processing speed of 20MIPS, guaranteeing spark timing with greater accuracy than prior versions! The MHR version includes a control…

MHR Team II ignition is a great innovation!!! Manages multiple maps simultaneously without having to resort to a hand-held device, with just a simple click. Ability to shift the selected map by moving the OFFSET (± 2°). The inner rotor ignition systems designed by Malossi are based on the state-of-the-art technology applied to racing. Such a new system resulted from the need to overcome the technical limitations imposed by conventional flywheel ignition, which cannot ensure consistent performance over 10,000 rpm and causes severe setting-up problems for racing vehicles. We made the control…

ABS Inhibitor for Yamaha N MAX 125 – T-Max 530 – 560 – X Max 125 euro 5 On the track, you’re better off not having ABS: the Malossi ABS Free is designed exclusively for track use and, by simply activating a switch, it disables traction control without remapping the ECU, altering the stock wiring, or interfering with any other electronic systems. It is compatible with Yamaha N-Max 125, T-Max 530, T-Max 560, and X-Max 125 Euro 5 models and provides a plug & play solution featuring a LED monitor to track all parameters in real time. Ideal for dyno testing: it allows for diagnostic runs even…

Bei der Gestaltung von Motoren wird oft ein sekundärer Fokus auf die Zündung gelegt. Diese Komponente ist jedoch von entscheidender Bedeutung, da durch sie der genaue Moment gesteuert wird, in dem der Funken auf die Zündkerze überspringt und die Strommenge eingestellt wird, durch die die Qualität des Funken bestimmt wird, um eine optimale Verbrennung zu erzielen. Sowohl in vorbereiteten Motoren als auch in Originalmotoren kann der Ersatz der Zündung durch eine moderne und leistungsfähige Generierung ist ein Verfahren, das dem Motor ein neues Leben verleiht und eine effektive und einfache…

The Injtronic engine control unit is the natural evolution of the original Piaggio system and enhances vehicle performance. The latest generation 32 bit microprocessor and hardware designed according to the most recent automotive quality standards make up the RACING DNA of this device. Designed to be plug & play, in other words compatible with the original sensors and actuators, the control unit only needs simple throttle calibration to synchronize the engine electronic control system. The calibrations and fine-tuning allow for a definite increase in engine performance. Technical features…
