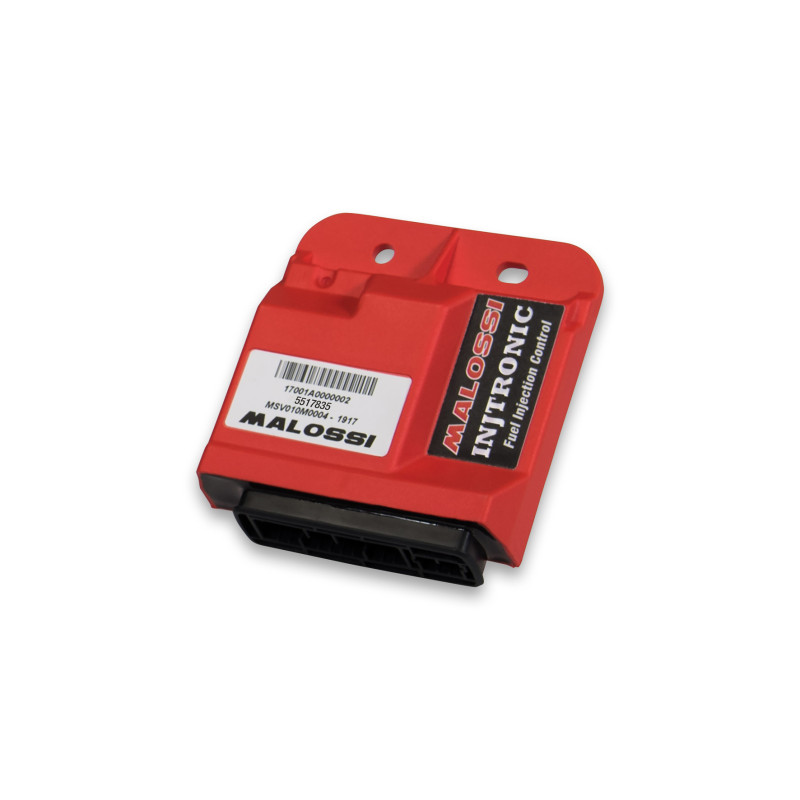

The Injtronic engine control unit is the natural evolution of the original Piaggio system and enhances vehicle performance. The latest generation 32 bit microprocessor and hardware designed according to the most recent automotive quality standards make up the RACING DNA of this device. Designed to be plug & play, in other words compatible with the original sensors and actuators, the control unit only needs simple throttle calibration to synchronize the engine electronic control system. The calibrations and fine-tuning allow for a definite increase in engine performance. Technical features…

With an all-new look, the Force Master 2.1 control unit is much easier to configure. Making products more ergonomic and easy to use has always been a Malossi goal: Force Master 2.1 is a contemporary, adequate and super performing product. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter. Technical details Carburation adjusting ±…

Bei der Gestaltung von Motoren wird oft ein sekundärer Fokus auf die Zündung gelegt. Diese Komponente ist jedoch von entscheidender Bedeutung, da durch sie der genaue Moment gesteuert wird, in dem der Funken auf die Zündkerze überspringt und die Strommenge eingestellt wird, durch die die Qualität des Funken bestimmt wird, um eine optimale Verbrennung zu erzielen. Sowohl in vorbereiteten Motoren als auch in Originalmotoren kann der Ersatz der Zündung durch eine moderne und leistungsfähige Generierung ist ein Verfahren, das dem Motor ein neues Leben verleiht und eine effektive und einfache…

Malossi is proud to offer its new Digitronic ECU with variable ignition timing! Compared to the original ECU, Malossi has completely modified the ignition timing performance maps and increased the rev limit by 1000 RPMs. The new Digitronic controls the ignition timing, SAS valve, and PTC heater performance maps. Ignition Timing Performance Map The ignition timing is controlled by performing a linear interpolation of a tri-dimensional performance map, containing 16 break points for engine speed and 8 break points for engine temperature. SAS Valve Performance Map The secondary air supply to the…

Malossi is proud to offer its new Digitronic ECU with variable ignition timing! Compared to the original ECU, Malossi has completely modified the ignition timing performance maps and increased the rev limit to 15,000 RPMs. The new Digitronic controls the ignition timing and SAS valve. Ignition Timing Performance Map The ignition timing is controlled by performing a linear interpolation of a tri-dimensional performance map, containing 16 break points for engine speed and 8 break points for engine temperature. SAS Valve Performance Map The secondary air supply to the base of the throttle body…

Malossi is proud to offer its new Digitronic ECU with variable ignition timing! Compared to the original ECU, Malossi has completely modified the ignition timing performance maps and increased the rev limit to 15,000 RPMs. The new Digitronic controls the ignition timing and SAS valve. Ignition Timing Performance Map The ignition timing is controlled by performing a linear interpolation of a tri-dimensional performance map, containing 16 break points for engine speed and 8 break points for engine temperature. SAS Valve Performance Map The secondary air supply to the base of the throttle body…

Besides its improved fuel curves, efforts from Malossi’s technical staff resulted with a rev limiter increase of 1.250 RPM depending on the vehicle, making Force Master an even higher performing ECU! Force Master allows to change the injection in order to fit perfectly the Malossi 4-stroke and original cylinders. Carburation adjusting ± 20% at min/medium/max RPM limiter : + 1.250 RPM Original 9.250 - Malossi 10.500 4 different maps : curve 0 : original exhaust system, cylinder with kit Malossi ø 63 mm 125 cc., original head, original camshaft and original filter curve 1 : Malossi exhaust…

Wir empfehlen den Einsatz des O2 Lambda Emulator zur Optimierung der Einspritzmenge und Leistung beim Lastwechsel. Bei den Motorrädern der neuesten Generation, dank des Lambda Emulator, ist die CDI imstande, die optimale Kraftstoffmenge zu bestimmen, um ein sehr stabiles Luft/ Kraftstoff Gemisch auch im "Closed Loop"-Bereich zu gewährleisten. Das Malossi Modul simuliert das original Signal und stimmt es zusätzlich auf ein von Malossi auf Luft/Kraftstoff Verhältnis perfekt abgestimmtes ab. So erzielt Malossi eine optimale Einspritzmenge ohne eine Fehlermeldung an die CDI zu übertragen.

MHR Team II ignition is a great innovation!!! Manages multiple maps simultaneously without having to resort to a hand-held device, with just a simple click. Ability to shift the selected map by moving the OFFSET (± 2°). The inner rotor ignition systems designed by Malossi are based on the state-of-the-art technology applied to racing. Such a new system resulted from the need to overcome the technical limitations imposed by conventional flywheel ignition, which cannot ensure consistent performance over 10,000 rpm and causes severe setting-up problems for racing vehicles. We made the control…

VESPower Ignitions Range of complete ignitions for vintage gear Vespa. In order to allow an easy and perfect installation, a specific version for each model has been studied. The new ignition range features: Lightened flywheel (weight 1,2 kg) with moment of inertia equal to 28 Kg/cm² (see attached chart). It is made from forged with external set up for additional masses (not included into the kit). 12 V (90 Watt ) 4-pole stator with output for battery charging. Red colored plastic fan with advanced booster cooling secondary fins (optimized fan profile and distribution absorption). Wiring…

ZÜNDKERZENKABEL Technische daten: Silikon-Zündkerzenkabel Ø7 mm mit doppelter Isolierung (EPDM innen und Silikon außen) Breiter Temperaturbereich von -40° bis +220° Flexibel und widerstandsfähig
