Complete cylinder with CDI FORCE MASTER 2 I-TECH 4-stroke These absolutely reliable high performance oversized cylinders are designed and manufactured with CadCam system at Malossi premises in Calderara di Reno (Bologna), using known and proven calculations and technologies to redefine the new thermo-fluid dynamic cycle and the cooling system, as well as structural calculations. These cylinders resulted to be exceptional for their amazing acceleration performance. During the development process original cdis alone proved not to be sufficient to provide an adequate fuel supply to the engine.…

MHR REPLICA CYLINDER KIT The MHR Replica line of cylinder was created especially for the International Scooter Trophy - 70cc Automatic Class. These cylinder kits were designed to guarantee maximum performance in this category, while at the same time assuring extremely long product life. In order to guarantee these special characteristics, Malossi MHR Replica cylinder kit have pistons with two chrome-plated rectangular segmants and a compression ratio of 13.8:1, plus torque value of 7.35 N.m. (o.75 Kgm) at 8.000 rpm and power of 6.6 Kw (9 C.V.) at 8.500 rpm. The MHR line is the results of…

MHR REPLICA CYLINDER KIT The MHR Replica line of cylinder was created especially for the International Scooter Trophy - 70cc Automatic Class. These cylinder kits were designed to guarantee maximum performance in this category, while at the same time assuring extremely long product life. In order to guarantee these special characteristics, Malossi MHR Replica cylinder kit have pistons with two chrome-plated rectangular segmants and a compression ratio of 13.8:1, plus torque value of 7.35 N.m. (o.75 Kgm) at 8.000 rpm and power of 6.6 Kw (9 C.V.) at 8.500 rpm. The MHR line is the results of…

Cylinder Material: special self-lubricating, wear-resistant, highly refined cast iron alloys, obtained by Shell Moulding gravity die-casting. Machining: on numerically controlled high precision machine tools. Recalculated and increased heat exchange surfaces. Exhaust and transfer ports designed and tuned for maximum thermodynamic performance. Dimensional and surface finish quality control performed according to Malossi's internal specifications. Cylinder and piston selected for a 100% fit of 0.010-0.005 mm. Checking of all the seals carried out. Piston Material: special aluminium alloy with…

Technische Daten Material: alluminium Kühlung: luft Bohrung: 39 mm Hub: 41,8 mm Hubraum: 49,9 Kompression Sverhältnis: 12,5:1 Verteilung: 6 Kanäle

Technical features Cylinder Bore: Ø 63 mm Stroke: 58.6 mm Displacement: 182.67 cc Compression ratio: 11.15:1 Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high…

Technical features Cylinder Material: alluminium Cooling: liquid Bore: Ø 67 mm Stroke: 47,2 mm Capacity: 166,4 Compression ratio: 1:11,4 Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special…

MHR ZYLINDERKITS mit Modularkopf ZYLINDER Material: Spezielle Aluminiumlegierung mit hohem Silizium- und Titananteil, die eine aussergewöhnliche Verformungsfestigkeit auch bei hohen Temperaturen gewährleistet. Wärmebehandlung: Spezielles Sättigungs- und Stabilisierungsverfahren für eine erhöhte Materialfestigkeit, um sicher zu stellen, dass die mechanischen und Grössenspezifikationen bis 250°C unverändert bleiben. Computergesteuerte Bearbeitung: Ausgeführt auf NC Bearbeitungsanlagen mit extrem begrenzten Grössen- und Formentoleranzen (Rundheit, Vertiaklebene). Laufflächenbeschichtung: Unter…

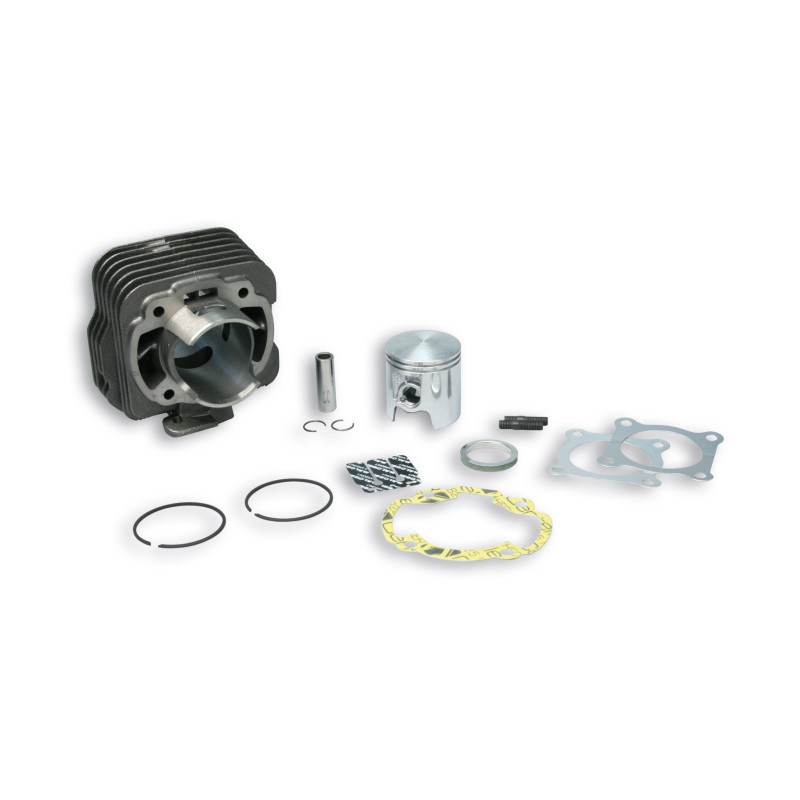

Spaß ohne Komplikationen (6 Überströmer - 2 Kolbenringe) Die Zylinderkits aus Gusseisen von Malossi sind der erste und einfachste Schritt, um ihren Motor zu verändern; sie stellen eine optimale Lösung dar, um weiterhin eine serienmäßige oder genehmigte Auspuffanlage zu verwenden. Dies ist der erste und einfachste Schritt, um ihren Motor zu verändern. Bei diesen Zylinderkits kombiniert sich die längere Lebensdauer des Gusseisens mit den fast schon übertriebenen Qualitätsstandards von Malossi. Malossi ist einer der wenigen Unternehmen, die auch Höchstleistungen von dieser Klasse an Zylinderkits…

The cylinder has a close deck structure paired with a redesigned modular head. With this cylinder, the engine benefits from reduced loads on the pistons and bearings , thereby extending its lifespan. Additionally, friction is significantly minimized, resulting in increased engine efficiency, along with a notable reduction in noise and vibrations . The exhaust system accompanying the 100 cc kit is the result of targeted engineering, designed to enhance performance and perfect the fluid dynamics of the new Malossi cylinder. Technical features Cooling: H2O Porting: 7 transfer ports Material:…

Technische Daten Material: alluminium Kühlung: flüss Bohrung: 45,5 mm Hub: 39,1 mm Hubraum: 65 Kompression Sverhältnis: 13,4:1 Verteilung: 6 Kanäle

Technische Daten Material: alluminium Kühlung: flüss Bohrung: 53 mm Hub: 41 mm Hubraum: 90 Kompression Sverhältnis: 10:01 Verteilung: 5 Kanäle

Technische Daten Material: alluminium Kühlung: luft Bohrung: 42 mm Hub: 43 mm Hubraum: 60 Kompression Sverhältnis: 10:01 Verteilung: 4 Kanäle
