Technical features
Another revolution in the construction philosophy of two-stroke engines: the cooling fins have been dimensioned to optimise the heat flow from the chamber to the outside, but now are also shaped, based on modern simulations to allow maximum penetration of the air coming from the cooling system, which now touches the head with a 10 % plus increase in performance compared to a traditional system with straight fins. The characteristic hemispherical combustion chamber is machined with tolerances to the tenth of a millimetre and produces a high turbulent combustion, with pressure peaks calculated at better speeds to achieve maximum performance in terms of torque and power. The high temperatures that are reached in this particular crossover zone between the head and the cylinder that often create hot spots and sparks are regulated using an aerospace-style solution: a pipe with a vacuum chamber that is formed with two dividing walls and a series of baffles in input and in output: Which, thanks also to a precise surface profile, channel a part of the cooling air, forcing it not only to touch the surfaces, but also to expand, decreasing the pressure and, therefore, temperature of the walls on the edge of the combustion chamber, based on a specific principle of physics.
Produkte, die ausschließlich für Wettkämpfe an den dafür vorgesehenen Orten gemäß den Bestimmungen der zuständigen Sportbehörden bestimmt sind. Wir übernehmen keine Haftung für unsachgemäße Verwendung.
Technische Daten

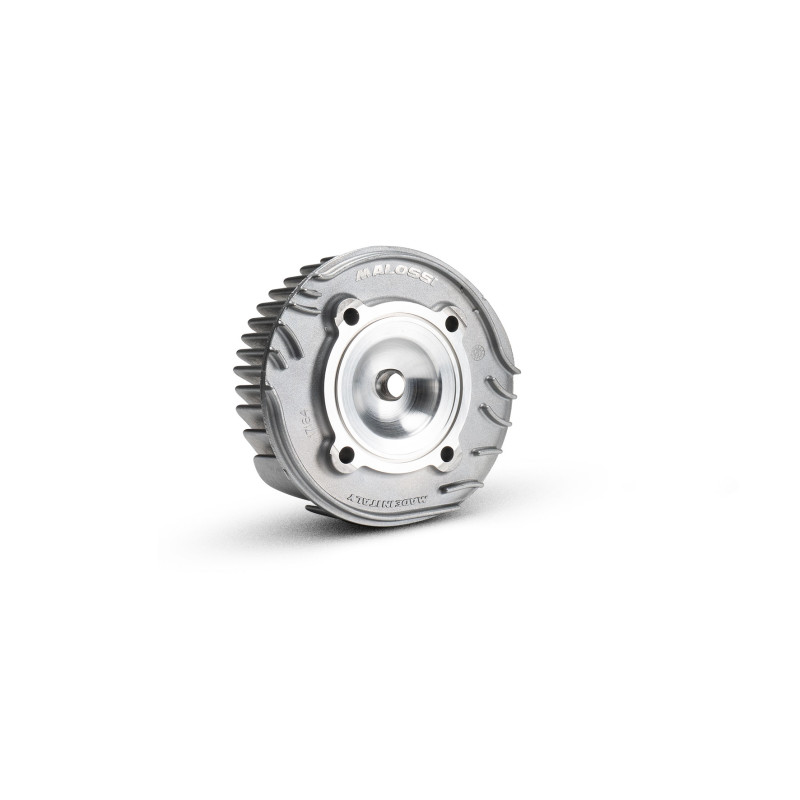

H.T.S.R. HEAD (High Turbolence Squish Racing) Heads with high turbolence concentric combustion chamber, squish set during the dynamometrical brake adjusting, re-calculated linings and cooling surfaces, made of high silicon content aluminium, pressure melted, worked on highest precision working centres, with anti-detonating and anti-oxidationtreatment on the surface.
H.T.S.R. HEAD (High Turbolence Squish Racing) Heads with high turbolence concentric combustion chamber, squish set during the dynamometrical brake adjusting, re-calculated linings and cooling surfaces, made of high silicon content aluminium, pressure melted, worked on highest precision working centres, with anti-detonating and anti-oxidationtreatment on the surface.
Material: Speziallegierung aus Aluminiumdruckguss. Vergrößerte und gestauchte Geometrie der Wärmeaustauschflächen (luftgekühlte Modelle). Vergrößerte und neu berechnete Dicken und Längen der Kühlkreisläufe (flüssig gekühlte Modelle). Bearbeitung auf rechnergesteuerten Präzisionsmaschinen mit Diamantwerkzeugen. Antioxidierende Oberflächenbehandlung.
H.T.S.R. HEAD (High Turbolence Squish Racing) Heads with high turbolence concentric combustion chamber, squish set during the dynamometrical brake adjusting, re-calculated linings and cooling surfaces, made of high silicon content aluminium, pressure melted, worked on highest precision working centres, with anti-detonating and anti-oxidationtreatment on the surface.
The head is designed to enter the cylinder?s combustion chamber, safeguarding the nickel coating in case of detonation.
