Technical features
Another revolution in the construction philosophy of two-stroke engines: the cooling fins have been dimensioned to optimise the heat flow from the chamber to the outside, but now are also shaped, based on modern simulations to allow maximum penetration of the air coming from the cooling system, which now touches the head with a 10 % plus increase in performance compared to a traditional system with straight fins. The characteristic hemispherical combustion chamber is machined with tolerances to the tenth of a millimetre and produces a high turbulent combustion, with pressure peaks calculated at better speeds to achieve maximum performance in terms of torque and power. The high temperatures that are reached in this particular crossover zone between the head and the cylinder that often create hot spots and sparks are regulated using an aerospace-style solution: a pipe with a vacuum chamber that is formed with two dividing walls and a series of baffles in input and in output: Which, thanks also to a precise surface profile, channel a part of the cooling air, forcing it not only to touch the surfaces, but also to expand, decreasing the pressure and, therefore, temperature of the walls on the edge of the combustion chamber, based on a specific principle of physics.
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Data sheet
Technical features Material: special alluminium alloy with a very high heat exchange coefficient. Geometry of heat exchange surfaces recalculated and increased. Combustion chamber completely-designed to obtain a high compression ratio with a very high turbolece. Machining: numerically controlled machines.

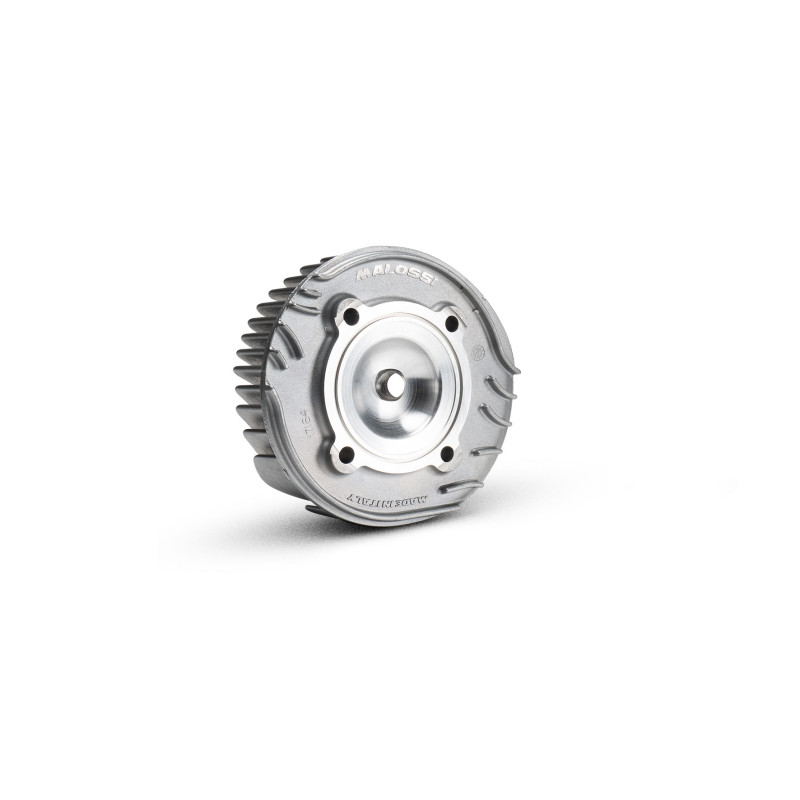

H.T.S.R. HEAD (High Turbolence Squish Racing) Heads with high turbolence concentric combustion chamber, squish set during the dynamometrical brake adjusting, re-calculated linings and cooling surfaces, made of high silicon content aluminium, pressure melted, worked on highest precision working centres, with anti-detonating and anti-oxidationtreatment on the surface.
H.T.S.R. HEAD (High Turbolence Squish Racing) Heads with high turbolence concentric combustion chamber, squish set during the dynamometrical brake adjusting, re-calculated linings and cooling surfaces, made of high silicon content aluminium, pressure melted, worked on highest precision working centres, with anti-detonating and anti-oxidationtreatment on the surface.
H.T.S.R. HEAD (High Turbolence Squish Racing) Heads with high turbolence concentric combustion chamber, squish set during the dynamometrical brake adjusting, re-calculated linings and cooling surfaces, made of high silicon content aluminium, pressure melted, worked on highest precision working centres, with anti-detonating and anti-oxidationtreatment on the surface.
The head is designed to enter the cylinder?s combustion chamber, safeguarding the nickel coating in case of detonation.
H.T.S.R. HEAD (High Turbolence Squish Racing) Heads with high turbolence concentric combustion chamber, squish set during the dynamometrical brake adjusting, re-calculated linings and cooling surfaces, made of high silicon content aluminium, pressure melted, worked on highest precision working centres, with anti-detonating and anti-oxidationtreatment on the surface.
