The Malossi range for Vespas offers extremely high-tech products able to increase performance to such exceptional levels with respect to the standard, that other essential vehicle components will also need to be adapted.
Suffice it to compare a 1978 Vespa PX 200 E which in its standard version develops a power of 12.35 hp at 5700 rpm, and a Vespa “elaborated” with Malossi Kits, which can develop 27.5 hp at 8000 rpm, thus more than double the hp at a much higher speed, in order to understand just how important it is to design a clutch system able to resist the strain caused by performance increases of such proportions!
Malossi POWER UP CLUTCH SYSTEM were born in response to the need to overcome the many problems that inevitably arise when the clutch system technology is not compatible with the other components of the engine. In a traditional clutch, the need to transmit more than double the power to the gears while at the same time turn faster, may cause the bell to sag under the effect of the centrifugal force, in addition to rubbing and deformations that may translate into bothersome and worrying metallic noises. It may even cause the classic slipping of the clutch due to the insufficient amount of friction developed by the original discs, which also impedes the transmission of the entire power generated by the thermal unit, thus partially thwarting its potential.

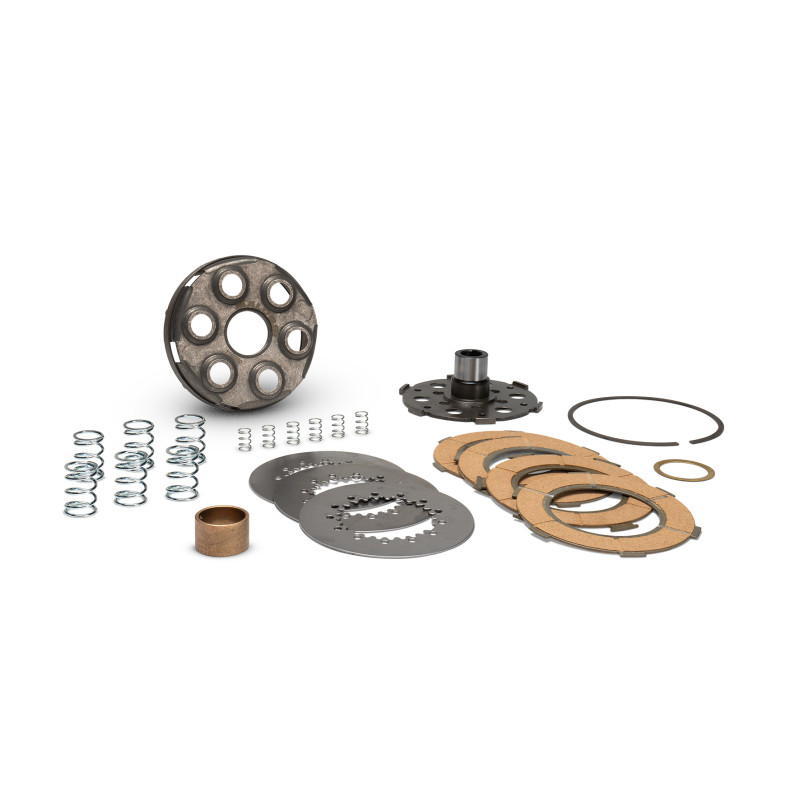

The two versions of the Malossi POWER UP CLUTCH SYSTEM have common characteristics:
The two clutches are actioned by a series of main springs with high elasticity coefficient, 6 in the bell for PX 125 - 150 and 7 in the bell for PX 200 E, and are supplied with a set of auxiliary springs, again 6 for PX 125 - 150 and 7 for PX 200 E, to be used in high-powered configurations. This regulation allows the user to adapt the clutch to the engine’s configuration, thus reaping the benefits at all levels of elaboration and in all possible set-ups.
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
This is normal. The six slots for the small-diameter springs have different centre distances in order to work symmetrically, as opposed to the main ones, which have an offset to allow the bell to rest against the drive flange when the clutch is pulled.
Data sheet
POWER UP CLUTCH BASKET TECHNICAL FEATURES In high-strength steel with hardening surface treatment to improve resistance to wear, and consequently its service life. A TIG welded reinforcement ring on the outer bell diameter to efficiently counteract the centrifugal force developed by the higher rotation speed. For original clutch and Malossi POWER UP CLUTCH SYSTEM.
TECHNICAL FEATURES Bush in sintered bronze B50 Bronze washer Spring clutch For original clutch bell and Malossi POWER UP CLUTCH SYSTEM.
Ultra-hard tempered steel. For original clutch bell and Malossi POWER UP CLUTCH SYSTEM.
POWER UP CLUTCH TECHNICAL FEATURES Clutch base plate: Ultra-hard tempered steel, ideal for components with highly dynamic stresses with a tensile strength of 1000 MPa. Surface hardening (LCN) at 300HB, depth 10-25 µm. Main machined spring seat with offset from the clutch bell to ensure intrinsic torque, eliminating any play. Auxiliary machined spring seat aligned with the clutch bell. Narrow tolerances between the tabs of the spring pusher disc and clutch bell eliminating clutch noise and increasing durability. Surface induction of the bronze bush coupling. Hardened to a depth of 1.5 mm,…
SPORT These clutch disks are intended to replace original parts in order to improve clutch performance, as regards modulation and consistency.
Series of springs with high elasticity and reinforced load. For original clutch bell and Malossi POWER UP CLUTCH SYSTEM.
SPORT These clutch disks are intended to replace original parts in order to improve clutch performance, as regards modulation and consistency.
MAXI FLY SYSTEM System comprises the famous: Reinforced clutch for extreme street use ( Maxi Fly Clutch ) In addition, steel clutch bell ( Maxi Wing Clutch Bell ) dynamically balanced. Maxi Fly System two products that Malossi produces and sells separately, with great success. Malossi now offers these two quality products paired, guaranteeing the optimal scooter transmission performance. Due to the strong demand for these two products, we decided to offer them both in a single package. This allows Malossi to supply two quality products with a cost savings for the customer. Further improving a…
Maxi Fly clutch is the result of the experience that Malossi engineers have accumulated with the Maxi Delta Cutch adjustable automatic clutch. This new clutch has been designed and constructed to adapt perfectly to a standard vehicle and guarantee impeccable performance on all occasions. Maxi Fly Clutch is supplied pre-calibrated according to instructions supplied by our engineers after exhaustive testing on accelerometer benches to check the reliability of every part. Malossi's Maxi Fly Clutch is designed with particular attention to dimensioning and material selection. Therefore, the Maxi…
SPORT These clutch disks are intended to replace original parts in order to improve clutch performance, as regards modulation and consistency.
MAXI FLY SYSTEM System comprises the famous: Reinforced clutch for extreme street use ( Maxi Fly Clutch ) In addition, steel clutch bell ( Maxi Wing Clutch Bell ) dynamically balanced. Maxi Fly System two products that Malossi produces and sells separately, with great success. Malossi now offers these two quality products paired, guaranteeing the optimal scooter transmission performance. Due to the strong demand for these two products, we decided to offer them both in a single package. This allows Malossi to supply two quality products with a cost savings for the customer. Further improving a…
DELTA SYSTEM Centrifugal clutch system with clutch bell for scooter RACING System comprises the famous: Patented adjustable clutch ( Delta Clutch ). In addition, the reinforced, anti-failure clutch bell ( Wing Clutch Bell ) with cooling fins, dynamically balanced, designed for competitive and sport applications. Delta Clutch Delta Clutch is a clutch developed within the scooter racing circuits and in a short period has become a benchmark product, key to scooter performance. The simplicity of the system quickly allows spring adjustment with regards to centrifugal force and the possibility of…
POWER UP CLUTCH SYSTEM The Malossi range for Vespas offers extremely high-tech products able to increase performance to such exceptional levels with respect to the standard, that other essential vehicle components will also need to be adapted. Suffice it to compare a 1978 Vespa PX 200 E which in its standard version develops a power of 12.35 hp at 5700 rpm, and a Vespa “elaborated” with Malossi Kits, which can develop 27.5 hp at 8000 rpm, thus more than double the hp at a much higher speed, in order to understand just how important it is to design a clutch system able to resist the strain…
DELTA SYSTEM Centrifugal clutch system with clutch bell for scooter RACING System comprises the famous: Patented adjustable clutch ( Delta Clutch ). In addition, the reinforced, anti-failure clutch bell ( Wing Clutch Bell ) with cooling fins, dynamically balanced, designed for competitive and sport applications. Delta Clutch Delta Clutch is a clutch developed within the scooter racing circuits and in a short period has become a benchmark product, key to scooter performance. The simplicity of the system quickly allows spring adjustment with regards to centrifugal force and the possibility of…
SPORT These clutch disks are intended to replace original parts in order to improve clutch performance, as regards modulation and consistency.
Maxi Fly clutch is the result of the experience that Malossi engineers have accumulated with the Maxi Delta Cutch adjustable automatic clutch. This new clutch has been designed and constructed to adapt perfectly to a standard vehicle and guarantee impeccable performance on all occasions. Maxi Fly Clutch is supplied pre-calibrated according to instructions supplied by our engineers after exhaustive testing on accelerometer benches to check the reliability of every part. Malossi's Maxi Fly Clutch is designed with particular attention to dimensioning and material selection. Therefore, the Maxi…
