COMPLETE CYLINDER 4-STROKE TECHNICAL FEATURES Cylinder Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing…

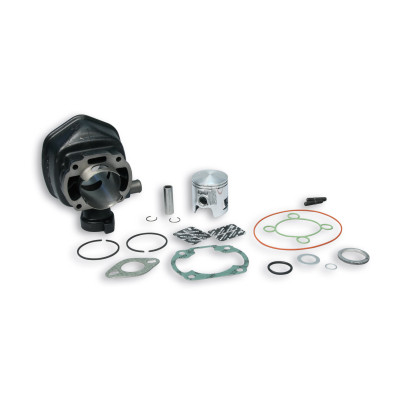

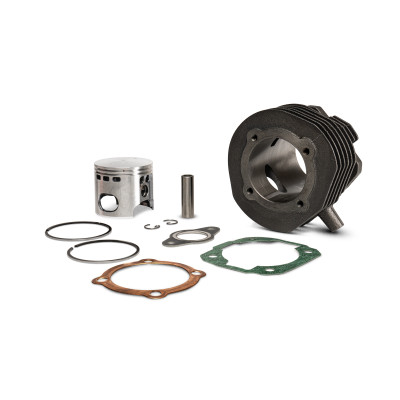

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

CYLINDERS PIT BIKE (Ducar - Lifan - Jialing 110 - 125 - 140 cc engines) TECHNICAL FEATURES Cylinder - Material: Aluminium alloy with high content of silicon, hardened and tempered, silicon carbide and galvanised nickel coated cylinder sleeves, diamond honed surface finished with a double criss-cross pattern while maintaining extremely tight tolerances. - High precision numerical controlled machining. - Cylinder-Piston matched sets within 0.05 mm. - Heat exchange surfaces redesigned and increased. Piston - Ultra compact with 3 piston rings. - Material: Special aluminium-silicon alloy with low…

Force Master is renewed! Besides its improved fuel curves, efforts from Malossi's technical staff resulted with a rev limiter increase of 1,000/1,500 RPM depending on the vehicle, making Force Master 2 an even higher performing ECU! Force Master 2 allows to change the injection in order to fit perfectly the new Malossi 4-stroke cylinder kit. This CDI has been scheduled with 4 different maps so as to be coupled perfectly with your vehicle whatever its setting is! TECHNICAL FEATURES Cylinder Bore: Ø 63 mm Stroke: 58.6 mm Displacement: 182.58 cc Compression ratio: 10.6:1. Material: primary…

CYLINDER KIT MHR TECHNICAL FEATURES CYLINDER Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures. Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C. Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity). Inner surface coating: effected using…

TECHNICAL SPECIFICATIONS Cylinder Bore Ø 70 mm; Stroke 48.6 mm; Displacement 187.6; Compression ratio 11.5:1. Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high…

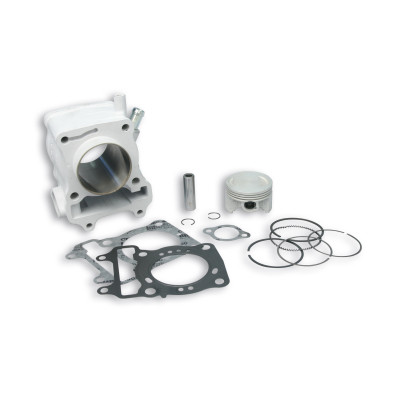

COMPLETE CYLINDER 4-STROKE TECHNICAL FEATURES Cylinder Bore: Ø 58 mm Stroke: 57,9 mm Displacement: 153 cc Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high…

Testa Rossa Flanged Mount 70 cc Maximum performance, flanged design, only for liquid-cooled scooters (7 ports and exhaust crossbar - piston with 1 segment - modular head - required use of C-One Malossi case - engine shaft with connecting rod different from the original). Testa Rossa Flanged Mount 94 cc The most powerful cylinder ever to be produced by Malossi. High capacity, flanged design, only for liquid-cooled scooters (7 ports and exhaust crossbar - piston with 1 segment - modular head - required use of RC-One Malossi case - engine shaft with connecting rod different from the original).…

MHR REPLICA CYLINDER KIT The MHR Replica line of cylinder was created especially for the International Scooter Trophy - 70cc Automatic Class. These cylinder kits were designed to guarantee maximum performance in this category, while at the same time assuring extremely long product life. In order to guarantee these special characteristics, Malossi MHR Replica cylinder kit have pistons with two chrome-plated rectangular segmants and a compression ratio of 13.8:1, plus torque value of 7.35 N.m. (o.75 Kgm) at 8.000 rpm and power of 6.6 Kw (9 C.V.) at 8.500 rpm. The MHR line is the results of…

The MHR REPLICA line of cylinder was created especially for the International Scooter Trophy - 70cc Automatic Class. These cylinder kits were designed to guarantee maximum performance in this category, while at the same time assuring extremely long product life. In order to guarantee these special characteristics, Malossi MHR Replica cylinder kit have pistons with two chrome-plated rectangular segmants and a compression ratio of 13.8:1, plus torque value of 7.35 N.m. (o.75 Kgm) at 8.000 rpm and power of 6.6 Kw (9 C.V.) at 8.500 rpm. The MHR line is the results of Malossi's many years of…

TECHNICAL FEATURES Cylinder Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.…
