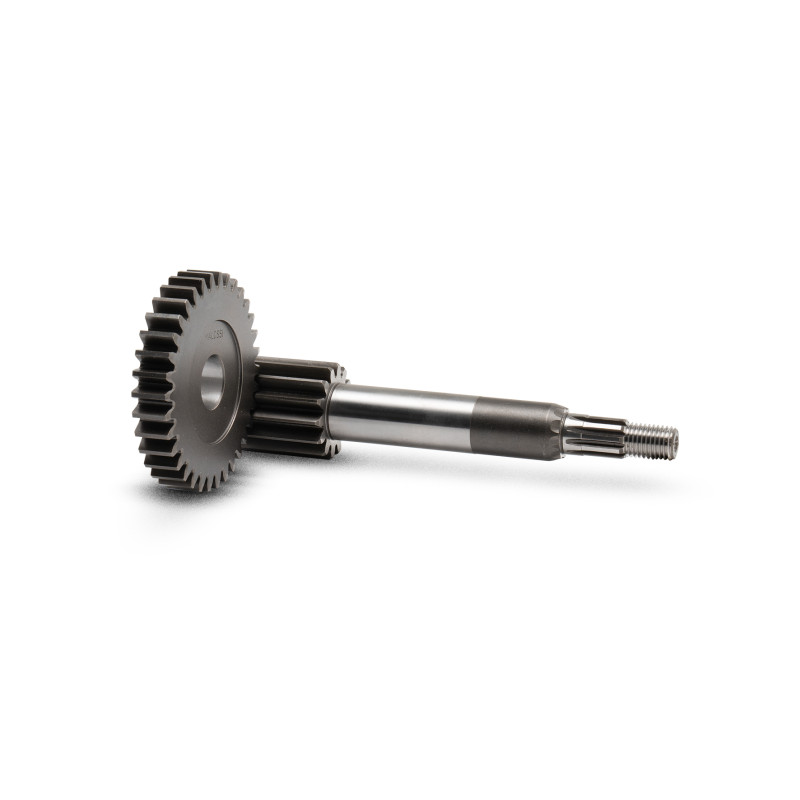

Primary gears HTQ Malossi S.p.A. is pleased to offer its new series of final transmission gears. These new gears were created by exploiting our 20-year experience in designing and building gears. The new HTQ gears were designed and built with straight/helical teeth to minimise losses through friction and stress on the supports. Moreover, our gears increase ratios slightly enabling you to exploit the full power of your vehicle, thus significantly increasing its original performance potential.

Transmission gears made of special steel with straight teeth and recalculated ratio. They completely eliminate all the axial pressures, thereby reducing stress on the bearings. They are constructed using high-precision machine, casehardened, tempered and ground to provide silent running and long life.

Gear selector stem made of hardened and tempered steel with nickel-plating treatment to increase sliding as well as giving it an aesthetic touch by increasing its brightness. Ø 20 mm length 88.4 mm

Malossi is pleased to announce a new rear wheel axle, completing the set of primary and secondary gears! This rear wheel axle is a result of Malossi's twenty years of experience in gear designing and production for road and racing scooters. The rear wheel axle was designed and manufactured to be assembled into the original gear box without any modifications. The Malossi engineers have worked to reduce the rotating masses, hollow the wheel axle and increase rigidity and strength of the axle. Ideal match: MHR gear box cover, exaggerated performance! Technical Specifications Material: special…

Wheels made with special case-hardened steel, obtained with CNC hobbing machines and ground in the contact surfaces. In the contact surfaces between the gears we have obtained small pockets useful for transporting the oil to increase and guarantee lubrication between the walls that slide between them. The numbers of teeth have been calculated to give an optimized gear ratio. In all the wheels, where it was possible to make them, lightening holes were made except in the area of the contact section between the wheel and the gear selector so as not to create breaking points. Toothed wheels with…

With Malossi it's now possible to lengthen the gear keeping the original chain! Very new gear sets which lengthen the pitch of about 7%; they must not be confused with Power Transmission MHR system art. 6714757. This Sport version must be used only with the original chain since Malossi racing chain is narrower and it doesn't accept original or similar ring gears.

Shims assembly useful for shimming the gearbox, of a specific shape, which can be used both in the Malossi sprocket kit and on the original Piaggio one. Technical specifications: Material: steel Ø external: 57 mm Ø internal: 45 mm

Transmission gears made of special steel with straight teeth and recalculated ratio. They completely eliminate all the axial pressures, thereby reducing stress on the bearings. They are constructed using high-precision machine, casehardened, tempered and ground to provide silent running and long life.

Primary gears HTQ Malossi S.p.A. is pleased to offer its new series of final transmission gears. These new gears were created by exploiting our 20-year experience in designing and building gears. The new HTQ gears were designed and built with straight/helical teeth to minimise losses through friction and stress on the supports. Moreover, our gears increase ratios slightly enabling you to exploit the full power of your vehicle, thus significantly increasing its original performance potential.

VESPA SMALL FRAME GEAR CLUSTER AND GEARWHEEL KIT Although it shares several elements with the motorcycle world, such as the gears, the Vespa can be considered the forefather of the scooter, yet it poses a number of challenges. Lacking a conventional front and rear sprocket, the Vespa does not allow for the variation of its wheelbase. This makes it complicated to carry out any necessary modifications to support every performance increase – with the correct final drive ratio. Initially, at Malossi, we sought a solution by creating a new gear kit that coupled with the stock components ( art.…

Ruote eseguite con acciaio speciale da cementazione, le ruote sono ottenute con macchine dentatrici al CNC e le ruote sono rettificate nelle superfici di contatto. Nelle superfici di contatto tra gli ingranaggi abbiamo ottenuto delle piccole sacche utili al trasporto dell’olio per aumentarne e garantire la lubrificazione tra le pareti che scorrono tra loro. I numeri di denti sono stati calcolati per dare un rapporto di trasmissione ottimizzato. In tutte le ruote dove era possibile eseguirli sono stati praticati dei fori di alleggerimento tranne che nella zona di sezione di contatto tra ruota…
