Besides its improved fuel curves, efforts from Malossi’s technical staff resulted with a rev limiter increase of 1.300 RPM depending on the vehicle, making Force Master an even higher performing ECU! Force Master allows to change the injection in order to fit perfectly the Malossi 4-stroke and original cylinders. Carburation adjusting ± 20% at min/medium/max RPM limiter : + 1.300 RPM Original 9.700 - Malossi 11.000 4 different maps : curve 0 : Malossi exhaust system with db killer, original cylinder, original head, original camshaft and original filter curve 1 : original exhaust system,…

Besides its improved fuel curves, efforts from Malossi’s technical staff resulted with a rev limiter increase of 1.500 RPM depending on the vehicle, making Force Master an even higher performing ECU! Force Master allows to change the injection in order to fit perfectly the Malossi 4-stroke and original cylinders. Carburation adjusting ± 20% at min/medium/max RPM limiter : + 1.000 RPM 4 different maps : curve 0 - vehicle version 125 cc : original exhaust system, Malossi cylinder (art. 3114621) , original camshaft curve 1 - vehicle version 125 cc : original exhaust system with lambda sensor…

Besides its improved fuel curves, efforts from Malossi’s technical staff resulted with a rev limiter increase of 1.250 RPM depending on the vehicle, making Force Master an even higher performing ECU! Force Master allows to change the injection in order to fit perfectly the Malossi 4-stroke and original cylinders. Carburation adjusting ± 20% at min/medium/max RPM limiter : + 1.250 RPM Original 9.250 - Malossi 10.500 4 different maps : curve 0 : original exhaust system, cylinder with kit Malossi ø 63 mm 125 cc., original head, original camshaft and original filter curve 1 : Malossi exhaust…

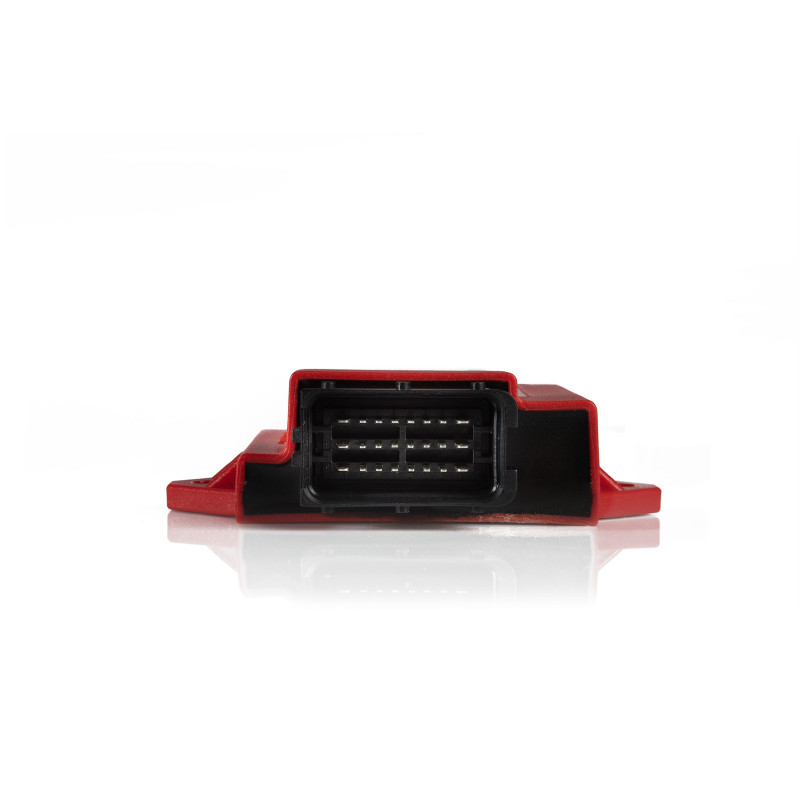

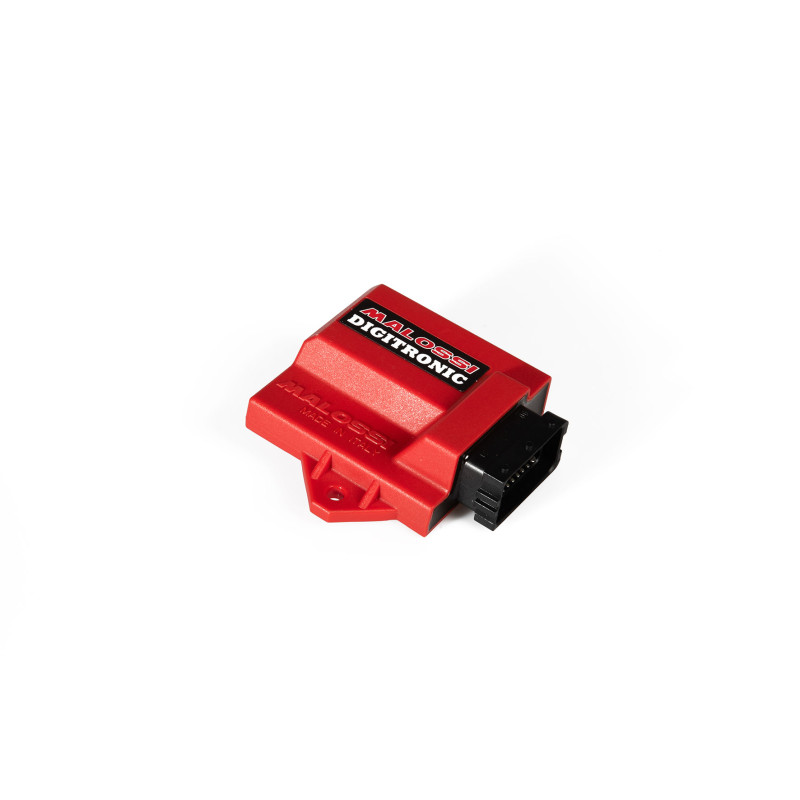

Malossi is proud to offer its new Digitronic ECU with variable ignition timing! Compared to the original ECU, Malossi has completely modified the ignition timing performance maps and increased the rev limit to 15,000 RPMs. The new Digitronic controls the ignition timing and SAS valve. Ignition Timing Performance Map The ignition timing is controlled by performing a linear interpolation of a tri-dimensional performance map, containing 16 break points for engine speed and 8 break points for engine temperature. SAS Valve Performance Map The secondary air supply to the base of the throttle body…

We suggest to use the O 2 controller to further optimize both carburetion and performances in transistors. In latest generation motorcycles, thanks to lambda sensor, the CDI can rectify the fuel quantity to be injected in order to reach a constant carburetion even in Closed Loop area. The O 2 controller permits to totally control the carburetion as to obtain the best air/fuel ratio. Malossi Lambda emulator is a device able to simulate signals from lambda sensor which original CDI is expected to receive. In this way, original lambda sensor is used to obtain best carburetion without the…

Besides its improved fuel curves, efforts from Malossi’s technical staff resulted with a rev limiter increase of 1,000 RPM depending on the vehicle, making Force Master an even higher performing ECU! Force Master allows to change the injection in order to fit perfectly the Malossi 4-stroke and original cylinders. Carburation adjusting ± 20% at min/medium/max RPM limiter : + 1000 RPM Original 9.000 - Malossi 10.000 (*) 4 different maps : curve 0 : original exhaust system, original cylinder, original head, original camshaft and original filter curve 1 : Malossi exhaust system with db killer,…

Malossi is proud to offer its new Digitronic ECU with variable ignition timing! Compared to the original ECU, Malossi has completely modified the ignition timing performance maps and increased the rev limit to 15,000 RPMs. The new Digitronic controls the ignition timing and SAS valve. Ignition Timing Performance Map The ignition timing is controlled by performing a linear interpolation of a tri-dimensional performance map, containing 16 break points for engine speed and 8 break points for engine temperature. SAS Valve Performance Map The secondary air supply to the base of the throttle body…

The use of the new O 2 controller allows for carburetion management in the area where the Lambda sensor controls the air/petrol mixture to be introduced into the combustion chamber. This device is able to make the Lambda sensor work at a value other than stoichiometric, improving the A/F (Air/Fuel ratio) to improve torque and power while respecting the engine’s DNA. Malossi’s research and development department’s main objective is to ensure that each vehicle has a calibration designed to optimise performance and consumption. The evolution that engine control systems have undergone in recent…

With an all-new look, the Force Master 2.1 control unit is much easier to configure. Making products more ergonomic and easy to use has always been a Malossi goal: Force Master 2.1 is a contemporary, adequate and super performing product. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter. Technical details Carburation adjusting ±…

HEAT MASTER Dampens your engine's ebullient spirits It is significantly important to control the engine operating temperature. Not only you should know at how many degrees the engine is working, but it is important to vary its temperature depending on the different operating conditions. Malossi understood this, thus creating HEAT MASTER , an electronic control system to be used with ENERGY PUMP , in order to adjust the engine's temperature in real time. HEAT MASTER can be installed on different scooter models, both two-stroke and four-stroke . Its functions can be modified by easily working…
