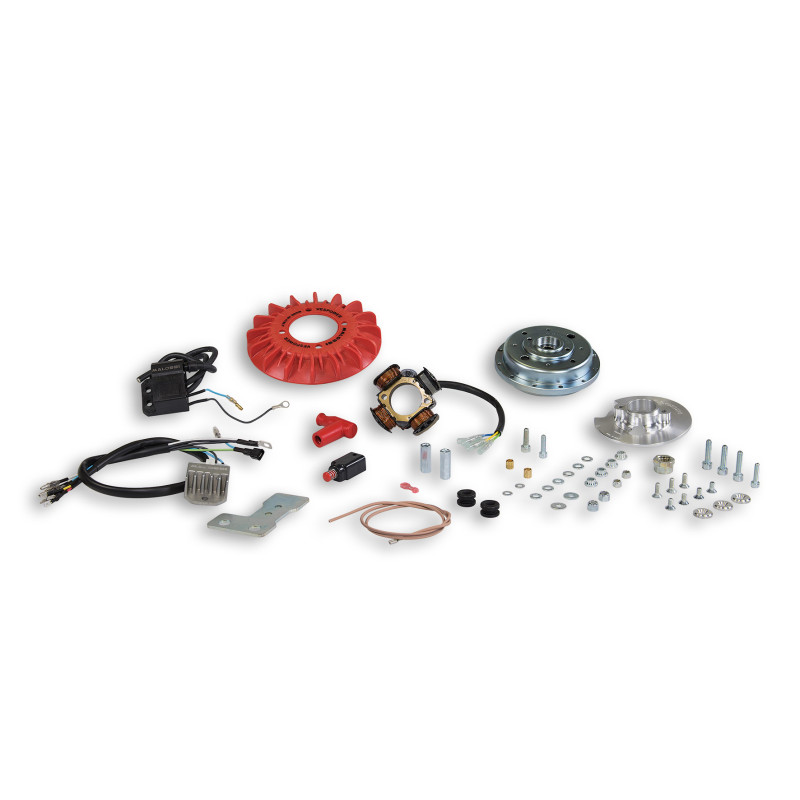

Range of complete ignitions for vintage gear Vespa.
In order to allow an easy and perfect installation, a specific version for each model has been studied.
The new ignition range features:
Code | Applications | Crankshaft | Static | Moment | Note |
5518177 | GL 150 2T euro 0 | 17 | (*) 1,8 | (*) 54 | You need to replace all the lamps (from 6 to 12 V) respecting original power expressed in Watts. |
| 5516951 | ET3 Primavera 125 2T (**) Primavera 125 2T | 19 | 1,2 | 28 | You need to replace all the lamps (from 6 to 12 V) respecting original power expressed in Watts. |
| 5516952 | SPECIAL 50 | 19 | 1,2 | 28 | You need to replace all the lamps (from 6 to 12 V) respecting original power expressed in Watts. |
| 5516953 (***) | COSA 125 - 150 - 200 2T PX 125 - 150 euro 0-1-2-3 PX E 200 2T | 20 | 1,2 | 28 | - |
| 5516955 | ET3 Primavera 125 2T (**) Primavera 125 2T | 20 | 1,2 | 28 | You need to replace all the lamps (from 6 to 12 V) respecting original power expressed in Watts. |
| 5517175 | PX 125 - 150 2T euro 0-1-2-3 PX E 200 2T | 20 | 1,2 | 28 | Only for vehicles with electric starter. |
| 5518372 | ETS 125 PK 50 - 125 - PK HP 50 PK XL 50 - 125 | 20 | 1,2 | 28 | There is no need to replace the light bulbs. |
| 5516956 (***) | COSA 125 - 150 - 200 2T PX 125 - 150 euro 0-1-2-3 PX E 200 2T | 20 | 0,9 | 17 | Ignition with further lightened inertia flywheel is available, void of external set up for additional masses. |
| 5516958 | ET3 Primavera 125 2T (**) Primavera 125 2T | 20 | 0,9 | 17 | Ignition with further lightened inertia flywheel is available, void of external set up for additional masses. |
NB:
(*) Values refer to flywheel with magnets, additional mass and 6 connecting screws.
(**) For proper fitting you have to modify the ignition wiring supplied into the kit.
(***) For versions without parking optional wiring is available art. 5515703: battery charger kit, consisting of wires and voltage regulator.
As optional you can get the additional flywheel masses, which allow to adapt the ignition to the own vehicle according to its set-up, thus further increasing the moment of inertia.
You can choose between two versions with different weight and moment of inertia:
Code | Applications | Dimensions | Static weight gr. | Moment |
| 1715715 | For ALL VESPower EXCEPT art. 5516956 art. 5517175 | 144x105x18 | 824 | 34 |
| 1715716 | For ALL VESPower EXCEPT art. 5516956 art. 5517175 | 134x105x18 | 420 | 19 |
