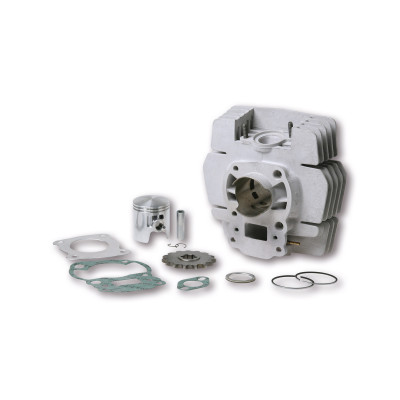

ALUMINIUM Ø 65 CYLINDER KITS Malossi aluminium cylinder kit: the best balance between component performance and life of the component. The aluminium cylinder kit produced by Malossi s.p.A. is designed and manufactured with the specific objective of obtaining high combustion efficiency, long life, and a reliability that suits the Malossi name. Owing to the experience gained in the preparation of cylinder kits for race, Malossi engineers have developed the thermodynamics of aluminium cylinder kit to the fullest and designed the inner fuid mechanics of the cylinder kit with fanatical precision…

Technical data Material: alluminium Cooling: liquid Bore: 47 mm Stroke: 37,8 mm Capacity 65 Compression ratio: 13:01 Timing system: 6 ports

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

COMPLETE CYLINDER 4-STROKE TECHNICAL FEATURES Cylinder Bore: Ø 58 mm Stroke: 57,9 mm Displacement: 153 cc Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

TECHNICAL FEATURES Cylinder Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.…

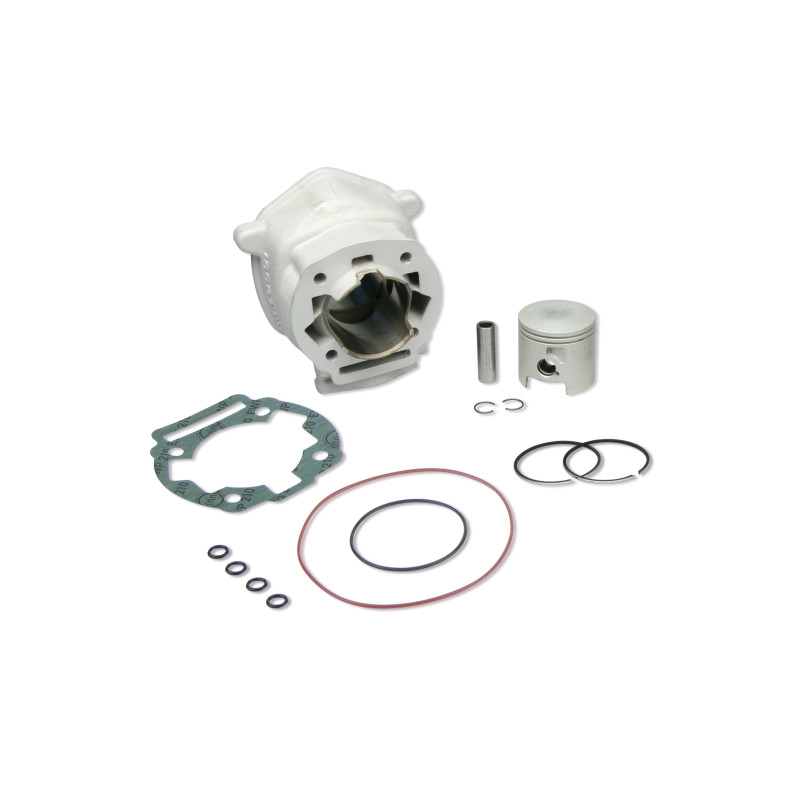

CYLINDER KIT MHR modular head The new MHR MODULAR-HEAD CYLINDER KITS are the natural evolution of the MHR MALOSSI line. The result of the research of its engineers, they have been a decisive factor in the victories of the official national and European teams in the cross and speed trophies. Malossi is happy to be able to guarantee that all riders taking part in the coming season National and European Trophies will have a product offering excellent quality and performance. CYLINDER Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain…

CYLINDER KIT MHR modular head The new MHR MODULAR-HEAD CYLINDER KITS are the natural evolution of the MHR MALOSSI line. The result of the research of its engineers, they have been a decisive factor in the victories of the official national and European teams in the cross and speed trophies. Malossi is happy to be able to guarantee that all riders taking part in the coming season National and European Trophies will have a product offering excellent quality and performance. CYLINDER Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain…

CYLINDERS PIT BIKE (Ducar - Lifan - Jialing 110 - 125 - 140 cc engines) TECHNICAL FEATURES Cylinder - Material: Aluminium alloy with high content of silicon, hardened and tempered, silicon carbide and galvanised nickel coated cylinder sleeves, diamond honed surface finished with a double criss-cross pattern while maintaining extremely tight tolerances. - High precision numerical controlled machining. - Cylinder-Piston matched sets within 0.05 mm. - Heat exchange surfaces redesigned and increased. Piston - Ultra compact with 3 piston rings. - Material: Special aluminium-silicon alloy with low…
