Technical specifications Cylinder 4 STROKE Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the…

ALUMINIUM CYLINDER Cylinders obtained by gravity die-casting in permanent steel moulds. Material: hardened and tempered high silicon content primary aluminium alloy. Machining: on numerically controlled high precision machine tools. Cylinder liner with silicon carbide metal-spray coating on a galvanic nickel matrix, cross-honed with passes with diamonds for very tight tolerances. Heat exchange surfaces recalculated. Exhaust and transfer ports designed and tested for maximum thermodynamic performance. Rings in very strong nodular cast iron with ground, wear-resistant, hard chrome metal-spray…

Cylinder Material: special self-lubricating, wear-resistant, highly refined cast iron alloys, obtained by Shell Moulding gravity die-casting. Machining: on numerically controlled high precision machine tools. Recalculated and increased heat exchange surfaces. Exhaust and transfer ports designed and tuned for maximum thermodynamic performance. Dimensional and surface finish quality control performed according to Malossi's internal specifications. Cylinder and piston selected for a 100% fit of 0.010-0.005 mm. Checking of all the seals carried out. Piston Material: special aluminium alloy with…

PIAGGIO CAST-I-CYLINDERS KIT Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

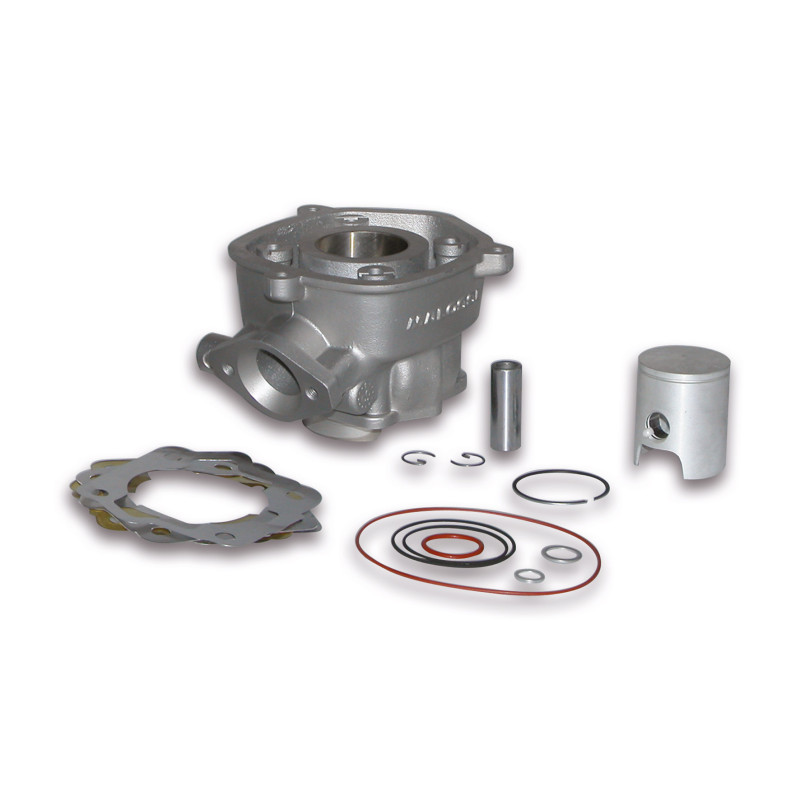

CYLINDER KIT MHR TECHNICAL FEATURES CYLINDER Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures. Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C. Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity). Inner surface coating: effected using…

Technical features Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures. Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C. Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity). Inner surface coating: effected using silicon carbide on a…

Force Master is the innovative CDI which allows to change the injection in order to fit perfectly the Malossi 4-stroke cylinder kit. This CDI has been scheduled with different maps so as to be coupled perfectly with your vehicle whatever its setting is! Complete cylinder I-TECH 4 STROKE Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control.…

Malossi, whose expertise in balancing a vast experience with the latest technology, embraced this new challenge: to bring to the racetrack a fuel injected two stroke engine. With the new INJECTION TECH range of products a new chapter is written, an answer, the racing world was anticipating, to satisfy the growing number of Malossi Trophy Races for 70cc scooters. Technical features Cast iron cylinder - Technology Material: special self-lubricating, wear-resistant, highly refined cast iron alloys, obtained by Shell Moulding gravity die-casting Machining: on numerically controlled high precision…

TECHNICAL SPECIFICATIONS Cylinder Bore Ø 75.5 mm; Stroke 48,6 mm; Displacement 218; Compression ratio 12.5:1. Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high…

Cylinder Material: special self-lubricating, wear-resistant, highly refined cast iron alloys, obtained by Shell Moulding gravity die-casting. Machining: on numerically controlled high precision machine tools. Recalculated and increased heat exchange surfaces. Exhaust and transfer ports designed and tuned for maximum thermodynamic performance. Dimensional and surface finish quality control performed according to Malossi's internal specifications. Cylinder and piston selected for a 100% fit of 0.010-0.005 mm. Checking of all the seals carried out. Piston Material: special aluminium alloy with…

CYLINDERS PIT BIKE (Ducar - Lifan - Jialing 110 - 125 - 140 cc engines) TECHNICAL FEATURES Cylinder - Material: Aluminium alloy with high content of silicon, hardened and tempered, silicon carbide and galvanised nickel coated cylinder sleeves, diamond honed surface finished with a double criss-cross pattern while maintaining extremely tight tolerances. - High precision numerical controlled machining. - Cylinder-Piston matched sets within 0.05 mm. - Heat exchange surfaces redesigned and increased. Piston - Ultra compact with 3 piston rings. - Material: Special aluminium-silicon alloy with low…

Malossi, whose expertise in balancing a vast experience with the latest technology, embraced this new challenge: to bring to the racetrack a fuel injected two stroke engine. With the new INJECTION TECH range of products a new chapter is written, an answer, the racing world was anticipating, to satisfy the growing number of Malossi Trophy Races for 70cc scooters. Technical features Cast iron cylinder - Technology Material: special self-lubricating, wear-resistant, highly refined cast iron alloys, obtained by Shell Moulding gravity die-casting Machining: on numerically controlled high precision…
