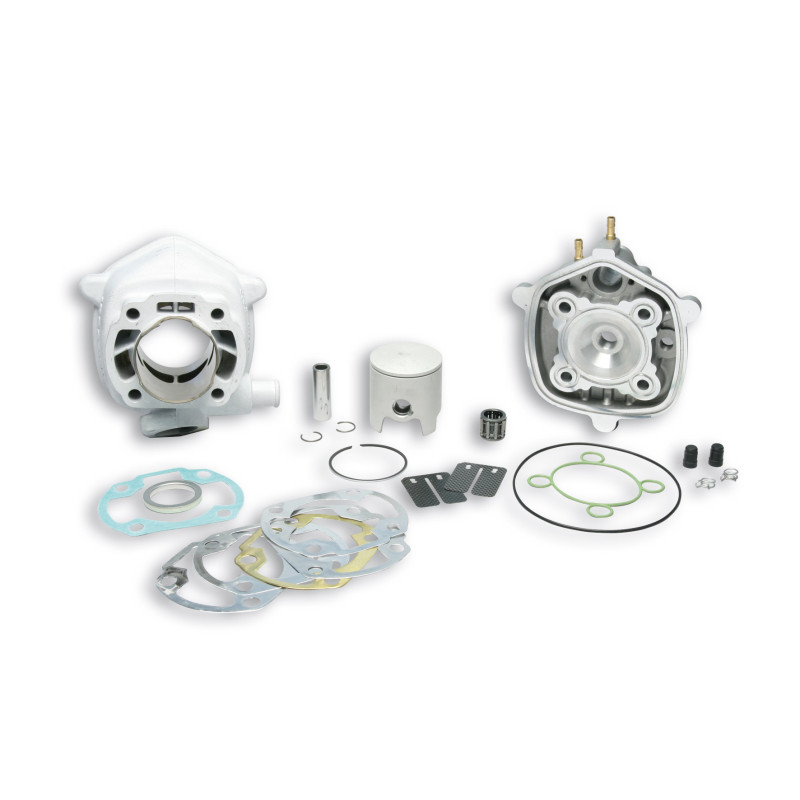

MALOSSI - ALUMIN-CYL. KIT Ø 47,6 pin Ø 12 H2O MHR
31 8460
€335.80
€285.43
Save 15%
Handling 4-5 days
CYLINDER KIT MHR TECHNICAL FEATURES CYLINDER Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures. Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C. Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity). Inner surface coating: effected using…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
CYLINDER KIT MHR
TECHNICAL FEATURES
CYLINDER
- Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures.
- Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C.
- Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity).
- Inner surface coating: effected using silicon carbide on a nickel matrix with heat treatment that guarantees extreme hardness (around 600 HVO, 1/5) and excellent resistance to wear.
- Internal machining of cylinder: using special machines that allow a degree of finish on the cylinder barrel walls whose roughness corresponds with the angles set at the design stage (grinding process using special stone).
- Port and exhaust diagrams: designed and manufactured especially for racing. The definition of the port and exhaust diagrams has requested considerable effort on the part of our engineers both on engine test stands and the circuits on which the trophy is held.
PISTON
- Material: special aluminium alloy with a very high percentage of silicon and titanium that guarantees both excellent heat resistance and strain strength upon temperature variation.
- External coating: graphite coating that guarantees a very low friction coefficient
- Structure: reinforced in order to offer resistance to the stress suffered by cylinder units used for top-level competition, but at the same time light enough to reduce inertial force.
- Ring: 1 mm nodular-cast-iron single ring with rectangular cross section and hard-chromium coating on outer surface.
PISTON RINGS
- Rings in very strong modular cast iron with ground, wear-resistant, hard chrome metal-spray coating on the contact surface.
HEAD
- Material: special alluminium alloy with a very high heat exchange coefficient.
- Geometry of heat exchange surfaces recalculated and increased.
- Combustion chamber completely-designed to obtain a high compression ratio with a very high turbolece.
- Machining: numerically controlled machines.
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Vehicle compatibility (23 vehicles)
Aprilia(8)
- AREA 51 50 2T LC
- GULLIVER 50 2T LC
- RALLY 50 2T LC (MINARELLI)
- SONIC 50 2T LC
- SR NETSCAPER 50 2T LC (MINARELLI)
- SR RACING 50 2T LC (MINARELLI)
- SR REPLICA 50 2T LC ←1999
- SR STEALTH 50 2T LC (MINARELLI)
Benelli(2)
- 491 SPORT 50 2T LC (MINARELLI)
- K2 50 2T LC
Beta(2)
- ARK 50 2T LC
- EIKON 50 2T LC
Italjet(1)
- DRAGSTER 50 2T LC
MBK(2)
- MACH G 50 2T LC
- NITRO 50 2T LC
Malaguti(5)
- F12 DIGIT KAT-PHANTOM 50 2T LC
- F12 DIGIT KAT-PHANTOM 50 2T LC euro 2
- F12 R LC 50 2T LC euro 2
- F12-PHANTOM 50 2T LC
- F15 FIREFOX 50 2T LC
Yamaha(3)
- AEROX 50 2T LC euro 0-1
- AEROX 50 2T LC euro 2
- JOGRR 50 2T LC euro 2
Frequently asked questions
Faq
-
Looking at the barrel, I noticed strange marks on the exhaust sleeve. Is it normal for them to be there?
This is a deliberate machining. As high temperatures are reached at this point with strong expansion, this machining was done to lower the point in order to avoid seizing.
31 8460
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Aprilia
Benelli
Beta
Italjet
MBK
Malaguti
Yamaha - Vehicle
- Aprilia AREA 51 50 2T LC
Aprilia GULLIVER 50 2T LC
Aprilia RALLY 50 2T LC (MINARELLI)
Aprilia SONIC 50 2T LC
Aprilia SR NETSCAPER 50 2T LC (MINARELLI)
Aprilia SR RACING 50 2T LC (MINARELLI)
Aprilia SR REPLICA 50 2T LC ←1999
Aprilia SR STEALTH 50 2T LC (MINARELLI)
Benelli 491 SPORT 50 2T LC (MINARELLI)
Benelli K2 50 2T LC
Beta ARK 50 2T LC
Beta EIKON 50 2T LC
Italjet DRAGSTER 50 2T LC
MBK MACH G 50 2T LC
MBK NITRO 50 2T LC
Malaguti F12 DIGIT KAT-PHANTOM 50 2T LC
Malaguti F12 DIGIT KAT-PHANTOM 50 2T LC euro 2
Malaguti F12 R LC 50 2T LC euro 2
Malaguti F12-PHANTOM 50 2T LC
Malaguti F15 FIREFOX 50 2T LC
Yamaha AEROX 50 2T LC euro 0-1
Yamaha AEROX 50 2T LC euro 2
Yamaha JOGRR 50 2T LC euro 2
Components and spare parts
Availability: 3 In Stock
Malossi needle roller bearings are independent bearings that are ready for assembly and constructed from high-tensile steel with housings for the insertion and axial rotation of the rollers. These devices are designed to allow reciprocal movement between two objects, constraining the rotation of the cage and housing the rotating elements with reduced overall dimensions, negligible weight and reduced friction. These are essential components in internal combustion engines which, by definition, have several rotating elements. As can be seen in the image, a needle roller bearing assembly is made…
Availability: 1 In Stock
Technical features Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures. Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C. Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity). Inner surface coating: effected using silicon carbide on a…
Availability: 3 In Stock
Multi-thickness dimensions: Spessore: 0.15 mm - Ø interno 51.2 mm Thickness: 0.1 mm - internal Ø 51.2 mm Thickness: 0.2 mm - internal Ø 51.2 mm Thickness: 0.3 mm - internal Ø 51.2 mm Thickness: 0.05 mm - internal Ø 51.2 mm
Availability: 3 In Stock
The petals are made of a material composed of carbon. They are manufactured with advanced production processes and with the use of raw materials carefully selected, these reed valves are designed for racing engines and they have been tested directly on race tracks.
