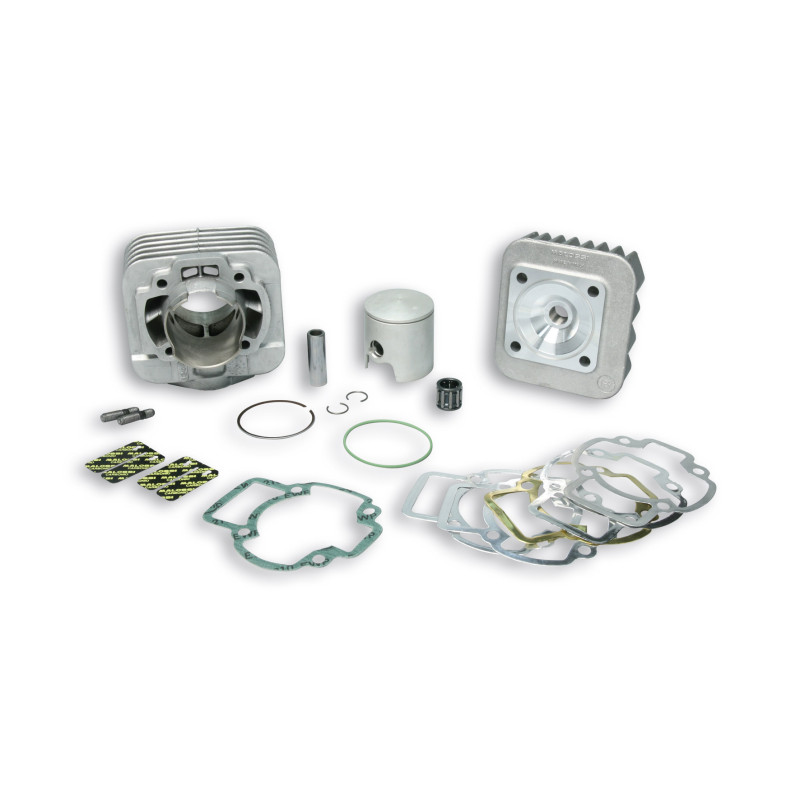

MALOSSI - ALUMIN-CYLINDER KIT Ø 47,6 pin Ø 12 MHR
31 8398
€335.80
€285.43
Save 15%
Handling 4-5 days
CYLINDER KIT MHR TECHNICAL FEATURES CYLINDER Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures. Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C. Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity). Inner surface coating: effected using…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
CYLINDER KIT MHR
TECHNICAL FEATURES
CYLINDER
- Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures.
- Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C.
- Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity).
- Inner surface coating: effected using silicon carbide on a nickel matrix with heat treatment that guarantees extreme hardness (around 600 HVO, 1/5) and excellent resistance to wear.
- Internal machining of cylinder: using special machines that allow a degree of finish on the cylinder barrel walls whose roughness corresponds with the angles set at the design stage (grinding process using special stone).
- Port and exhaust diagrams: designed and manufactured especially for racing. The definition of the port and exhaust diagrams has requested considerable effort on the part of our engineers both on engine test stands and the circuits on which the trophy is held.
PISTON
- Material: special aluminium alloy with a very high percentage of silicon and titanium that guarantees both excellent heat resistance and strain strength upon temperature variation.
- External coating: graphite coating that guarantees a very low friction coefficient
- Structure: reinforced in order to offer resistance to the stress suffered by cylinder units used for top-level competition, but at the same time light enough to reduce inertial force.
- Ring: 1 mm nodular-cast-iron single ring with rectangular cross section and hard-chromium coating on outer surface.
PISTON RINGS
- Rings in very strong modular cast iron with ground, wear-resistant, hard chrome metal-spray coating on the contact surface.
HEAD
- Material: special alluminium alloy with a very high heat exchange coefficient.
- Geometry of heat exchange surfaces recalculated and increased.
- Combustion chamber completely-designed to obtain a high compression ratio with a very high turbolece.
- Machining: numerically controlled machines.
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Vehicle compatibility (37 vehicles)
Aprilia(7)
- MOJITO CUSTOM 50 2T
- SCARABEO CLASSIC 50 2T euro 4 2018→ (CA91M)
- SCARABEO STREET 50 2T (PIAGGIO)
- SCARABEO STREET 50 2T euro 4 2018→ (CA91M)
- SPORTCITY ONE STREET 50 2T euro 2
- SR MOTARD 50 2T euro 2
- SR MOTARD 50 2T euro 4 2018→ (CA41M)
Derbi(2)
- ATLANTIS - BULLET 50 2T 2003→
- VARIANT Sport 50 2T
Gilera(6)
- EASY MOVING 50 2T
- ICE 50 2T
- STALKER 50 2T
- STORM 50 2T
- TYPHOON 50 2T
- TYPHOON X 50 2T
Italjet(1)
- JET SET 50 2T
Piaggio(15)
- DIESIS 50 2T
- FLY 50 2T
- FREE 50 2T
- LIBERTY 50 2T
- NRG EXTREME 50 2T
- NRG MC3 DT 50 2T
- NRG Power DT 50 2T (C453M)
- SFERA 50 2T
- SFERA RESTYLING 50 2T
- TYPHOON 50 2T 2007→2010
- TYPHOON 50 2T euro 2 2011→2017 (C421M)
- TYPHOON 50 2T euro 4 2018→ (CA41M)
- ZIP 50 2T 2000→ (C25EM)
- ZIP 50 2T ←1999
- ZIP Fast Rider 50 2T
Vespa(6)
- ET2 50 2T 2000→
- ET2 50 2T ←1999
- LX 50 2T
- Primavera 50 2T euro 2 (C533M)
- S 50 2T euro 2 (C381M)
- Sprint 50 2T euro 2
Frequently asked questions
Faq
-
Looking at the barrel, I noticed strange marks on the exhaust sleeve. Is it normal for them to be there?
This is a deliberate machining. As high temperatures are reached at this point with strong expansion, this machining was done to lower the point in order to avoid seizing.
