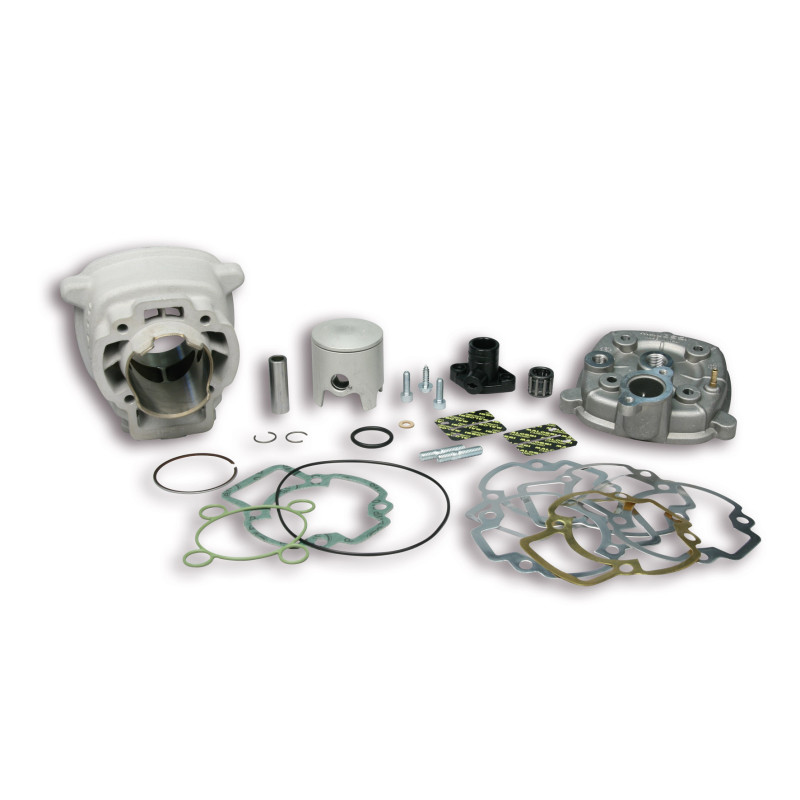

MALOSSI - ALUMIN-CYL. KIT Ø 47,6 pin Ø 12 H2O MHR
31 8455
€335.80
€285.43
Save 15%
Handling 4-5 days
CYLINDER KIT MHR TECHNICAL FEATURES CYLINDER Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures. Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C. Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity). Inner surface coating: effected using…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
CYLINDER KIT MHR
TECHNICAL FEATURES
CYLINDER
- Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures.
- Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C.
- Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity).
- Inner surface coating: effected using silicon carbide on a nickel matrix with heat treatment that guarantees extreme hardness (around 600 HVO, 1/5) and excellent resistance to wear.
- Internal machining of cylinder: using special machines that allow a degree of finish on the cylinder barrel walls whose roughness corresponds with the angles set at the design stage (grinding process using special stone).
- Port and exhaust diagrams: designed and manufactured especially for racing. The definition of the port and exhaust diagrams has requested considerable effort on the part of our engineers both on engine test stands and the circuits on which the trophy is held.
PISTON
- Material: special aluminium alloy with a very high percentage of silicon and titanium that guarantees both excellent heat resistance and strain strength upon temperature variation.
- External coating: graphite coating that guarantees a very low friction coefficient
- Structure: reinforced in order to offer resistance to the stress suffered by cylinder units used for top-level competition, but at the same time light enough to reduce inertial force.
- Ring: 1 mm nodular-cast-iron single ring with rectangular cross section and hard-chromium coating on outer surface.
PISTON RINGS
- Rings in very strong modular cast iron with ground, wear-resistant, hard chrome metal-spray coating on the contact surface.
HEAD
- Material: special alluminium alloy with a very high heat exchange coefficient.
- Geometry of heat exchange surfaces recalculated and increased.
- Combustion chamber completely-designed to obtain a high compression ratio with a very high turbolece.
- Machining: numerically controlled machines.
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Vehicle compatibility (22 vehicles)
Aprilia(4)
- SR (carb.) 50 2T LC 2004→ (PIAGGIO)
- SR R (carb.) 50 2T LC (PIAGGIO)
- SR R 50 2T LC euro 4 2018→ (PIAGGIO CA81M)
- SR Street 50 2T LC euro 2
Derbi(3)
- GP1 50 2T LC
- GP1 OPEN 50 2T LC
- GP1 REVOLUTION 50 2T LC
Gilera(4)
- DNA 50 2T LC
- RUNNER 50 2T LC
- RUNNER SP 50 2T LC 2006→ (C451M)
- RUNNER SP 50 2T LC ←2005
Piaggio(11)
- NRG 50 2T LC
- NRG EXTREME 50 2T LC
- NRG MC2 50 2T LC 1998→
- NRG MC2 50 2T LC ←1997
- NRG MC3 DD 50 2T LC
- NRG Power 50 2T LC euro 4 2018→2020 (CA71M)
- NRG Power DD 50 2T LC
- NTT 50 2T LC
- QUARTZ 50 2T LC
- ZIP SP 50 2T LC 2001→
- ZIP SP 50 2T LC ←2000
Frequently asked questions
Faq
-
Looking at the barrel, I noticed strange marks on the exhaust sleeve. Is it normal for them to be there?
This is a deliberate machining. As high temperatures are reached at this point with strong expansion, this machining was done to lower the point in order to avoid seizing.
31 8455
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Aprilia
Derbi
Gilera
Piaggio - Vehicle
- Aprilia SR (carb.) 50 2T LC 2004→ (PIAGGIO)
Aprilia SR R (carb.) 50 2T LC (PIAGGIO)
Aprilia SR R 50 2T LC euro 4 2018→ (PIAGGIO CA81M)
Aprilia SR Street 50 2T LC euro 2
Derbi GP1 50 2T LC
Derbi GP1 OPEN 50 2T LC
Derbi GP1 REVOLUTION 50 2T LC
Gilera DNA 50 2T LC
Gilera RUNNER 50 2T LC
Gilera RUNNER SP 50 2T LC 2006→ (C451M)
Gilera RUNNER SP 50 2T LC ←2005
Piaggio NRG 50 2T LC
Piaggio NRG EXTREME 50 2T LC
Piaggio NRG MC2 50 2T LC 1998→
Piaggio NRG MC2 50 2T LC ←1997
Piaggio NRG MC3 DD 50 2T LC
Piaggio NRG Power 50 2T LC euro 4 2018→2020 (CA71M)
Piaggio NRG Power DD 50 2T LC
Piaggio NTT 50 2T LC
Piaggio QUARTZ 50 2T LC
Piaggio ZIP SP 50 2T LC 2001→
Piaggio ZIP SP 50 2T LC ←2000
