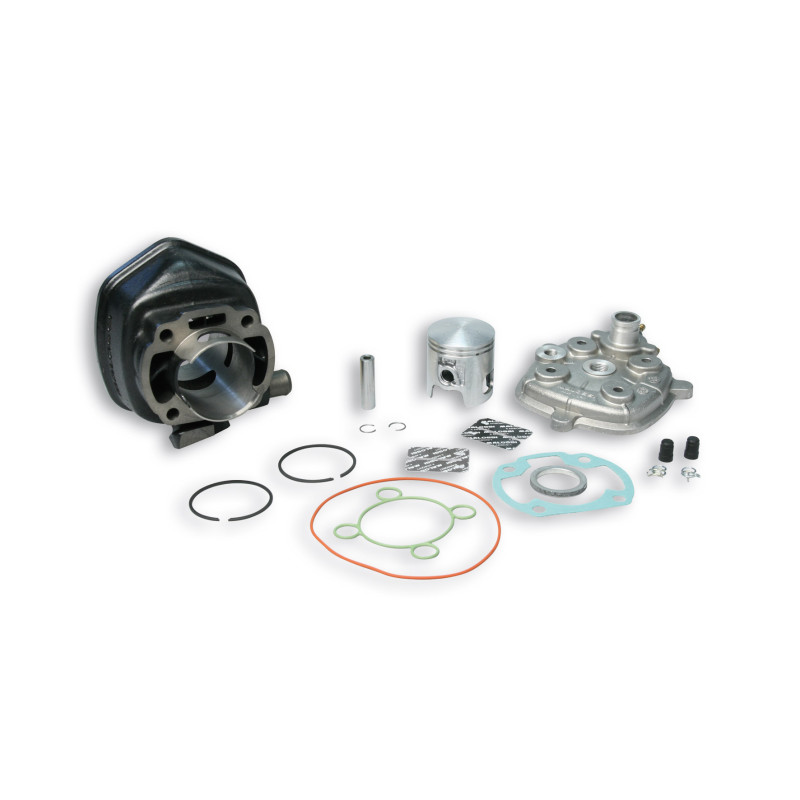

Cylinder Material: special self-lubricating, wear-resistant, highly refined cast iron alloys, obtained by Shell Moulding gravity die-casting. Machining: on numerically controlled high precision machine tools. Recalculated and increased heat exchange surfaces. Exhaust and transfer ports designed and tuned for maximum thermodynamic performance. Dimensional and surface finish quality control performed according to Malossi's internal specifications. Cylinder and piston selected for a 100% fit of 0.010-0.005 mm. Checking of all the seals carried out. Piston Material: special aluminium alloy with…

Technical features Cylinder Bore: Ø 63 mm Stroke: 58.7 mm Displacement: 183 cc Compression ratio: 11.27 Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high silicon…

BIG BORE Testa Rossa 94 cc The new generation BIG BORE engine! Stud bolts, only for liquid-cooled scooters (7 ports and exhaut crossbar - piston with 1 segment - modular head - required boring of original case or C-One Malossi case - engine shaft with connecting rod different from the original). Deriving directly from seven port technology, which animates the revolutionary Flanged Mount, BIG BORE Testa Rossa cylinders represent the latest success achieved thanks to the efforts and studies that Malossi has continued to devote to engines intended for original Piaggio and Yamaha cases and, with…

ALUMINIUM CYLINDER Cylinders obtained by gravity die-casting in permanent steel moulds. Material: hardened and tempered high silicon content primary aluminium alloy. Machining: on numerically controlled high precision machine tools. Cylinder liner with silicon carbide metal-spray coating on a galvanic nickel matrix, cross-honed with passes with diamonds for very tight tolerances. Heat exchange surfaces recalculated. Exhaust and transfer ports designed and tested for maximum thermodynamic performance. Rings in very strong nodular cast iron with ground, wear-resistant, hard chrome metal-spray…

Tecnical data Material: alluminium Cooling: air Bore: 40 mm Stroke: 39,1 mm Capacity: 50 cc Compression ratio: 11,8:1 Timing system: 5 ports

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

COMPLETE CYLINDER 4-STROKE TECHNICAL FEATURES Cylinder Bore: Ø 58 mm Stroke: 57,9 mm Displacement: 153 cc Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

CVF2 CYLINDER TECHNICAL FEATURES ALUMINIUM CYLINDER Cylinders obtained by gravity die-casting in permanent steel moulds. Material: hardened and tempered high silicon content primary aluminium alloy. Machining: on numerically controlled high precision machine tools. Cylinder liner with silicon carbide metal-spray coating on a galvanic nickel matrix, cross-honed with passes with diamonds for very tight tolerances. Recalculated and increased heat exchange surfaces. Exhaust and transfer ports designed and tested for maximum thermodynamic performance. Dimensional and surface finish quality control…

Technical features Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures. Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C. Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity). Inner surface coating: effected using silicon carbide on a…

Made of the same high-strength aluminium alloy as our racing cylinders and nickel-chrome coating. The central core profile has been revamped around the ports to increase the heat exchange surface and improve the air cooling flow, allowing the fresh air to enter the combustion chamber at optimal temperature and pressure conditions, thus improving the volumetric efficiency of the engine. There is a support surface in the front part of the cylinder that has been machined and finished with high-precision tools, with four threaded holes required to connect it to the pipe assembly. The most…

Tecnical data Material: alluminium Cooling: liquid Bore: 39 mm Capacity: 50 cc Compression rati: 11,8:1 Cylinder: primary aluminium alloy with a high content of hardened and tempered silicon Timing system: 5 ports Cylinder liner with special silicon carbide coating Piston with super-light, finned internal structure

Technical specifications Cylinder 4 STROKE Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the…
