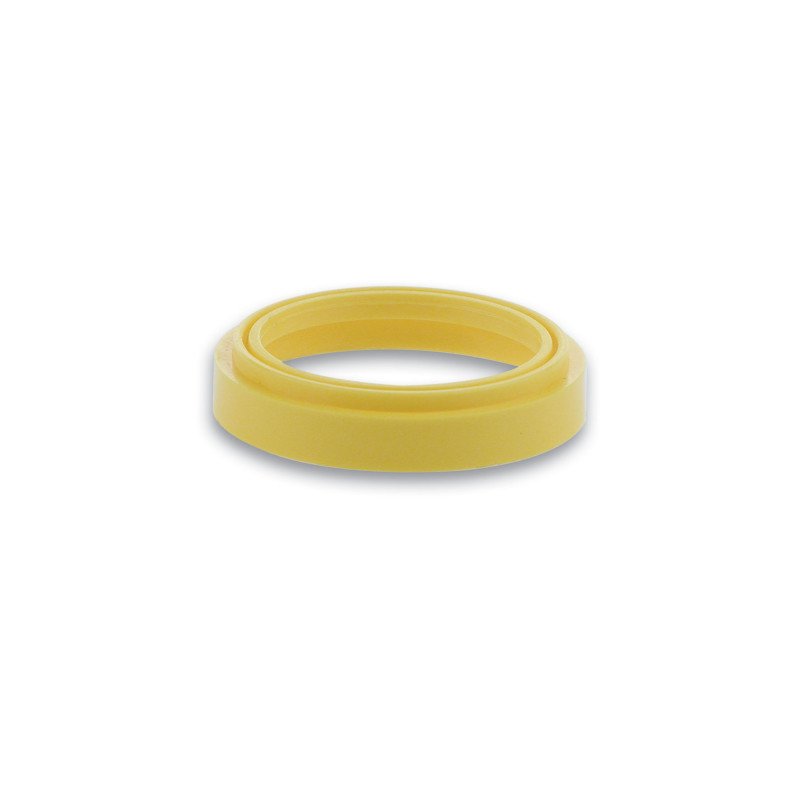

MALOSSI - TORSION CONTROLLER for eng. 50 a100 cc YAMAHA - MINARELLI
2512827
€4.72
€4.49
Save 5%
Handling 4-5 days
TORSION CONTROLLER Antifriction fifth wheel for variator contrast spring A secret from Malossi racing department Light, perfect: a technology extract in its simplicity. Design and formula of the materials are registered. Abstract from of Malossi Engineering R&D department archives CVT Transmission systems Chapter : contrast spring. Goal Pull down vibrations and to make the system operation stable at any rpm and temperature. Design path We have considered both on theoretical and practical basis all the existing fifth wheel systems: balls, rollers and radial sliding fifth wheels of metal type.…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
TORSION CONTROLLER
Antifriction fifth wheel for variator contrast spring
A secret from Malossi racing department
Light, perfect: a technology extract in its simplicity.
Design and formula of the materials are registered.
Abstract from of Malossi Engineering R&D department archives
CVT Transmission systems
Chapter : contrast spring.
Goal
Pull down vibrations and to make the system operation stable at any rpm and temperature.
Design path
We have considered both on theoretical and practical basis all the existing fifth wheel systems: balls, rollers and radial sliding fifth wheels of metal type. All the tests gave unsatisfactory results. We have made prototypes with alternative systems, metallic type, without any positive results. Only after exhausting laboratory and racetrack tests we have eventually come to Torsion Controller design.
Thesis
The above-mentioned component solves the following problems.
During gear curve range the bushing of the movable pulley (torque drive) slides into the driven pulley in axial way along fixed pulley hub, making a small rotation which gives a torsion to the contrast spring. Sometimes the spring loses its position while frictioning on the shoe-holder plate, metal against
metal; some others, the spring remains stuck in its position causing some accidentally different contrast forces.
Second problem : centrifugal forces caused at high rpm affect the spring which consequently buckled and starts to veer as to create big vibrations, very annoying for the driver as well as dangerous for the engine and, above all, making unsteady the gear curve.
Result
We approved the project with great success after strict tests at R&D department and on racetrack on all examined scooter models.
Documents and videos
Vehicle compatibility (105 vehicles)
Aeon(1)
- MOTOR COBRA 50 2T (AT70)
Aprilia(17)
- AMICO 50 2T
- AREA 51 50 2T LC
- GULLIVER 50 2T
- GULLIVER 50 2T LC
- RALLY 50 2T (MINARELLI)
- RALLY 50 2T LC (MINARELLI)
- SCARABEO 100 2T
- SCARABEO 50 2T (MINARELLI)
- SONIC 50 2T
- SONIC 50 2T LC
- SR 50 2T 1994→
- SR 50 2T ←1993
- SR NETSCAPER 50 2T LC (MINARELLI)
- SR RACING 50 2T LC (MINARELLI)
- SR REPLICA 50 2T LC ←1999
- SR STEALTH 50 2T LC (MINARELLI)
- SR WWW 50 2T
Atala(1)
- CAROSELLO 50 2T
BSV(2)
- AX 50
- GZ 50
Benelli(7)
- 491 GT 50 2T (MINARELLI)
- 491 SPORT 50 2T LC (MINARELLI)
- K2 100 2T
- K2 50 2T
- K2 50 2T LC
- NAKED 50 2T
- PEPE 50 2T
Beta(6)
- ARK 50 2T
- ARK 50 2T LC
- CHRONO 50 2T
- EIKON 50 2T LC
- QUADRA 50 2T
- TEMPO 50 2T
DRR(2)
- DRX 90 2T LC 2016→
- DRX 90 2T LC ←2015
Fantic(1)
- BIG WHEEL 50 2T
Garelli(2)
- GSP 50 2T LC euro 2 (1PE40MB)
- SR 50 2T
Italjet(5)
- DRAGSTER 50 2T LC
- MILLENNIUM 100 2T
- PISTA 2 50 2T
- SCOOP 50 2T
- YANKEE 50 2T
MBK(24)
- BOOSTER 100 2T
- BOOSTER 50 2T euro 0-1
- BOOSTER 50 2T euro 2 (A137E)
- BOOSTER NAKED 50 2T euro 2 (A137E)
- BOOSTER NG 50 2T euro 0-1
- BOOSTER NG 50 2T euro 2 (A137E)
- BOOSTER ROCKET 50 2T euro 0-1
- BOOSTER ROCKET 50 2T euro 2 (A137E)
- BOOSTER SPIRIT 50 2T euro 0-1
- EVOLIS 50 2T
- FIZZ 50 2T
- FLIPPER 50 2T
- FORTE 50 2T
- HOT CHAMP 50 2T
- MACH G 50 2T
- MACH G 50 2T LC
- NITRO 100 2T
- NITRO 50 2T LC
- OVETTO 100 2T
- OVETTO 50 2T
- SORRISO 50 2T 1996→
- STUNT 50 2T euro 0-1
- STUNT 50 2T euro 2
- TARGET 50 2T
Malaguti(10)
- CENTRO 50 2T
- CIAK 50 2T
- F10 50 2T
- F12 DIGIT KAT-PHANTOM 50 2T LC
- F12 DIGIT KAT-PHANTOM 50 2T LC euro 2
- F12 R LC 50 2T LC euro 2
- F12-PHANTOM 50 2T
- F12-PHANTOM 50 2T LC
- F15 FIREFOX 50 2T LC
- YESTERDAY 50 2T
Motron(2)
- SYNCRO 50
- THUNDER'S 50
Yamaha(25)
- AEROX 100 2T
- AEROX 50 2T LC euro 0-1
- AEROX 50 2T LC euro 2
- AXIS 50 2T
- BREEZE 50 2T
- BW'S 100 2T
- BW'S 50 2T euro 0-1
- BW'S 50 2T euro 2 (A137E)
- BW'S NG 50 2T euro 0-1
- BW'S NG 50 2T euro 2 (A137E)
- BW'S Original/Naked 50 2T euro 2 2010→ (A137E)
- CRZ 50 2T
- JOG 50 2T
- JOG ER 50 2T
- JOG R 50 2T
- JOG Z 50 2T
- JOGRR 50 2T LC euro 2
- NEO'S 100 2T
- NEO'S 50 2T
- SLIDER 50 2T
- SPY 50 2T
- VINO 50 2T
- WHY 50 2T
- ZEST 50 2T
- ZUMA 50 2T
2512827
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Aeon
Aprilia
Atala
BSV
Benelli
Beta
DRR
Fantic
Garelli
Italjet
MBK
Malaguti
Motron
Yamaha - Vehicle
- Aeon MOTOR COBRA 50 2T (AT70)
Aprilia AMICO 50 2T
Aprilia AREA 51 50 2T LC
Aprilia GULLIVER 50 2T
Aprilia GULLIVER 50 2T LC
Aprilia RALLY 50 2T (MINARELLI)
Aprilia RALLY 50 2T LC (MINARELLI)
Aprilia SCARABEO 50 2T (MINARELLI)
Aprilia SCARABEO 100 2T
Aprilia SONIC 50 2T
Aprilia SONIC 50 2T LC
Aprilia SR 50 2T 1994→
Aprilia SR 50 2T ←1993
Aprilia SR NETSCAPER 50 2T LC (MINARELLI)
Aprilia SR RACING 50 2T LC (MINARELLI)
Aprilia SR REPLICA 50 2T LC ←1999
Aprilia SR STEALTH 50 2T LC (MINARELLI)
Aprilia SR WWW 50 2T
Atala CAROSELLO 50 2T
BSV AX 50
BSV GZ 50
Benelli 491 GT 50 2T (MINARELLI)
Benelli 491 SPORT 50 2T LC (MINARELLI)
Benelli K2 50 2T
Benelli K2 50 2T LC
Benelli K2 100 2T
Benelli NAKED 50 2T
Benelli PEPE 50 2T
Beta ARK 50 2T
Beta ARK 50 2T LC
Beta CHRONO 50 2T
Beta EIKON 50 2T LC
Beta QUADRA 50 2T
Beta TEMPO 50 2T
DRR DRX 90 2T LC 2016→
DRR DRX 90 2T LC ←2015
Fantic BIG WHEEL 50 2T
Garelli GSP 50 2T LC euro 2 (1PE40MB)
Garelli SR 50 2T
Italjet DRAGSTER 50 2T LC
Italjet MILLENNIUM 100 2T
Italjet PISTA 2 50 2T
Italjet SCOOP 50 2T
Italjet YANKEE 50 2T
MBK BOOSTER 50 2T euro 0-1
MBK BOOSTER 50 2T euro 2 (A137E)
MBK BOOSTER 100 2T
MBK BOOSTER NAKED 50 2T euro 2 (A137E)
MBK BOOSTER NG 50 2T euro 0-1
MBK BOOSTER NG 50 2T euro 2 (A137E)
MBK BOOSTER ROCKET 50 2T euro 0-1
MBK BOOSTER ROCKET 50 2T euro 2 (A137E)
MBK BOOSTER SPIRIT 50 2T euro 0-1
MBK EVOLIS 50 2T
MBK FIZZ 50 2T
MBK FLIPPER 50 2T
MBK FORTE 50 2T
MBK HOT CHAMP 50 2T
MBK MACH G 50 2T
MBK MACH G 50 2T LC
MBK NITRO 50 2T LC
MBK NITRO 100 2T
MBK OVETTO 50 2T
MBK OVETTO 100 2T
MBK SORRISO 50 2T 1996→
MBK STUNT 50 2T euro 0-1
MBK STUNT 50 2T euro 2
MBK TARGET 50 2T
Malaguti CENTRO 50 2T
Malaguti CIAK 50 2T
Malaguti F10 50 2T
Malaguti F12 DIGIT KAT-PHANTOM 50 2T LC
Malaguti F12 DIGIT KAT-PHANTOM 50 2T LC euro 2
Malaguti F12 R LC 50 2T LC euro 2
Malaguti F12-PHANTOM 50 2T
Malaguti F12-PHANTOM 50 2T LC
Malaguti F15 FIREFOX 50 2T LC
Malaguti YESTERDAY 50 2T
Motron SYNCRO 50
Motron THUNDER'S 50
Yamaha AEROX 50 2T LC euro 0-1
Yamaha AEROX 50 2T LC euro 2
Yamaha AEROX 100 2T
Yamaha AXIS 50 2T
Yamaha BREEZE 50 2T
Yamaha BW'S 50 2T euro 0-1
Yamaha BW'S 50 2T euro 2 (A137E)
Yamaha BW'S 100 2T
Yamaha BW'S NG 50 2T euro 0-1
Yamaha BW'S NG 50 2T euro 2 (A137E)
Yamaha BW'S Original/Naked 50 2T euro 2 2010→ (A137E)
Yamaha CRZ 50 2T
Yamaha JOG 50 2T
Yamaha JOG ER 50 2T
Yamaha JOG R 50 2T
Yamaha JOGRR 50 2T LC euro 2
Yamaha JOG Z 50 2T
Yamaha NEO'S 50 2T
Yamaha NEO'S 100 2T
Yamaha SLIDER 50 2T
Yamaha SPY 50 2T
Yamaha VINO 50 2T
Yamaha WHY 50 2T
Yamaha ZEST 50 2T
Yamaha ZUMA 50 2T
