Ruote eseguite con acciaio speciale da cementazione, le ruote sono ottenute con macchine dentatrici al CNC e le ruote sono rettificate nelle superfici di contatto. Nelle superfici di contatto tra gli ingranaggi abbiamo ottenuto delle piccole sacche utili al trasporto dell’olio per aumentarne e garantire la lubrificazione tra le pareti che scorrono tra loro. I numeri di denti sono stati calcolati per dare un rapporto di trasmissione ottimizzato. In tutte le ruote dove era possibile eseguirli sono stati praticati dei fori di alleggerimento tranne che nella zona di sezione di contatto tra ruota…
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
Ruote eseguite con acciaio speciale da cementazione, le ruote sono ottenute con macchine dentatrici al CNC e le ruote sono rettificate nelle superfici di contatto. Nelle superfici di contatto tra gli ingranaggi abbiamo ottenuto delle piccole sacche utili al trasporto dell’olio per aumentarne e garantire la lubrificazione tra le pareti che scorrono tra loro. I numeri di denti sono stati calcolati per dare un rapporto di trasmissione ottimizzato. In tutte le ruote dove era possibile eseguirli sono stati praticati dei fori di alleggerimento tranne che nella zona di sezione di contatto tra ruota e crociera cosi da non creare punti di rottura.
Ruote dentate con stesso Z delle originali, medesima battuta fra gli ingranaggi e fascia dentata spostata per ottimizzare l’innesto con l’asse primario. La posizione del dente di trascinamento con la crociera e gli spazi tra le cambiate sono invariate.
Montabili come ricambio alle ruote dentate Piaggio sull’albero originale.
Prodotti riservati esclusivamente alle competizioni nei luoghi ad esse destinate secondo le disposizioni delle competenti autorità sportive. Decliniamo ogni responsabilità per l'uso improprio
Data sheet
Transmission gears made of special steel with straight teeth and recalculated ratio. They completely eliminate all the axial pressures, thereby reducing stress on the bearings. They are constructed using high-precision machine, casehardened, tempered and ground to provide silent running and long life.

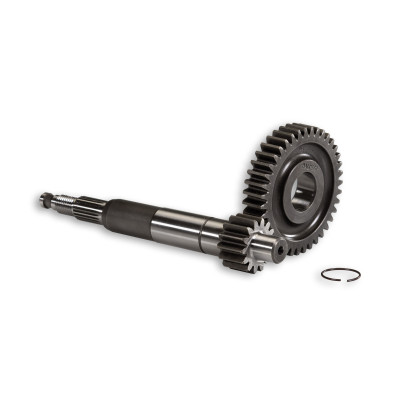

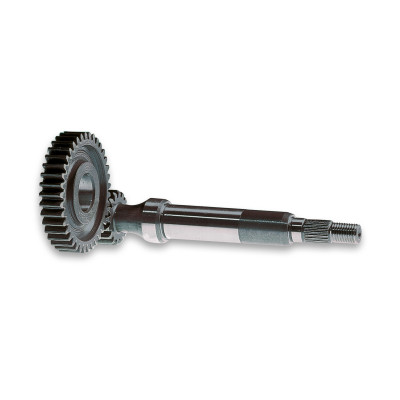

Primary gears HTQ Malossi S.p.A. is pleased to offer its new series of final transmission gears. These new gears were created by exploiting our 20-year experience in designing and building gears. The new HTQ gears were designed and built with straight/helical teeth to minimise losses through friction and stress on the supports. Moreover, our gears increase ratios slightly enabling you to exploit the full power of your vehicle, thus significantly increasing its original performance potential.
Transmission gears made of special steel with straight teeth and recalculated ratio. They completely eliminate all the axial pressures, thereby reducing stress on the bearings. They are constructed using high-precision machine, casehardened, tempered and ground to provide silent running and long life.

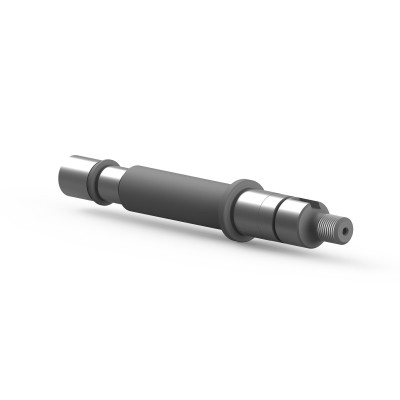

Main shaft pin: built in case-hardened steel then ground in the bearing housings length 121 mm Ø bearing 15 mm Ø bush 13 mm Ø wheel side 15 mm
Primary gears HTQ Malossi S.p.A. is pleased to offer its new series of final transmission gears. These new gears were created by exploiting our 20-year experience in designing and building gears. The new HTQ gears were designed and built with straight/helical teeth to minimise losses through friction and stress on the supports. Moreover, our gears increase ratios slightly enabling you to exploit the full power of your vehicle, thus significantly increasing its original performance potential.
Primary gears HTQ Malossi S.p.A. is pleased to offer its new series of final transmission gears. These new gears were created by exploiting our 20-year experience in designing and building gears. The new HTQ gears were designed and built with straight/helical teeth to minimise losses through friction and stress on the supports. Moreover, our gears increase ratios slightly enabling you to exploit the full power of your vehicle, thus significantly increasing its original performance potential.
Primary gears HTQ Malossi S.p.A. is pleased to offer its new series of final transmission gears. These new gears were created by exploiting our 20-year experience in designing and building gears. The new HTQ gears were designed and built with straight/helical teeth to minimise losses through friction and stress on the supports. Moreover, our gears increase ratios slightly enabling you to exploit the full power of your vehicle, thus significantly increasing its original performance potential.
Transmission gears made of special steel with straight teeth and recalculated ratio. They completely eliminate all the axial pressures, thereby reducing stress on the bearings. They are constructed using high-precision machine, casehardened, tempered and ground to provide silent running and long life.
VESPA SMALL FRAME GEAR CLUSTER AND GEARWHEEL KIT Although it shares several elements with the motorcycle world, such as the gears, the Vespa can be considered the forefather of the scooter, yet it poses a number of challenges. Lacking a conventional front and rear sprocket, the Vespa does not allow for the variation of its wheelbase. This makes it complicated to carry out any necessary modifications to support every performance increase – with the correct final drive ratio. Initially, at Malossi, we sought a solution by creating a new gear kit that coupled with the stock components ( art.…
Transmission gears made of special steel with straight teeth and recalculated ratio. They completely eliminate all the axial pressures, thereby reducing stress on the bearings. They are constructed using high-precision machine, casehardened, tempered and ground to provide silent running and long life.
Primary gears HTQ Malossi S.p.A. is pleased to offer its new series of final transmission gears. These new gears were created by exploiting our 20-year experience in designing and building gears. The new HTQ gears were designed and built with straight/helical teeth to minimise losses through friction and stress on the supports. Moreover, our gears increase ratios slightly enabling you to exploit the full power of your vehicle, thus significantly increasing its original performance potential.
Primary gears HTQ Malossi S.p.A. is pleased to offer its new series of final transmission gears. These new gears were created by exploiting our 20-year experience in designing and building gears. The new HTQ gears were designed and built with straight/helical teeth to minimise losses through friction and stress on the supports. Moreover, our gears increase ratios slightly enabling you to exploit the full power of your vehicle, thus significantly increasing its original performance potential.
For automatic mopeds with variators The pinwheel shaft completing the set of primary was designed and manufactured to be assembled into the original gear box without any modifications. The Malossi engineers have worked to increase rigidity and strength of the axle. Ideal match: Malossi gears, exaggerated performance! N.B. : To obtain the maximum operating precision, the toothed wheel shall be assembled with a slight interference fit on the wheel shaft. Technical Specifications Coupling: Ø 23. Total length: 119,6 mm. Material: special tri-alloy steel made to our specifications, hardened and…
