Technical features: High-quality resistor spark plug cap, which ensures constant resistance with minimal variations in overload conditions. External body made with a robust rubber structure featured by excellent resistance to intense heat and mechanical stress. Special rubber rings positioned internally and at the ends allowing to avoid external discharge even in conditions of high humidity.

Malossi is proud to offer its new Digitronic ECU with variable ignition timing! Compared to the original ECU, Malossi has completely modified the ignition timing performance maps and increased the rev limit to 15,000 RPMs. The new Digitronic controls the ignition timing and SAS valve. Ignition Timing Performance Map The ignition timing is controlled by performing a linear interpolation of a tri-dimensional performance map, containing 16 break points for engine speed and 8 break points for engine temperature. SAS Valve Performance Map The secondary air supply to the base of the throttle body…

With an all-new look, the Force Master 2.1 control unit is much easier to configure. Making products more ergonomic and easy to use has always been a Malossi goal: Force Master 2.1 is a contemporary, adequate and super performing product. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter. Technical details Carburation adjusting ±…

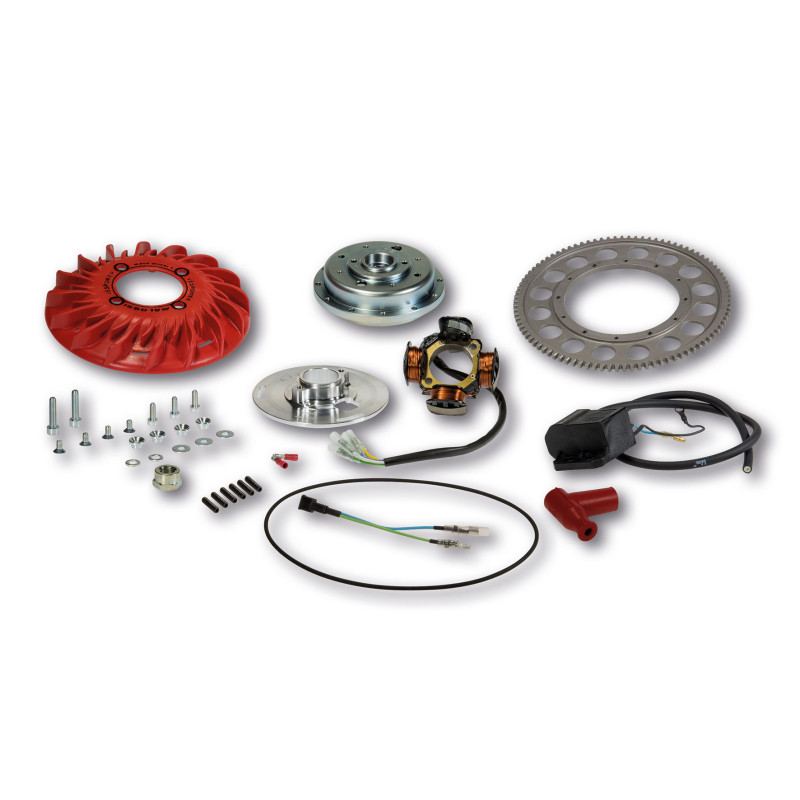

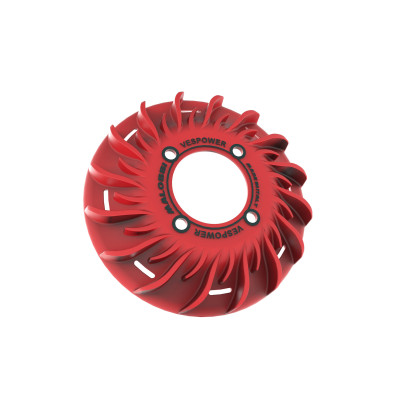

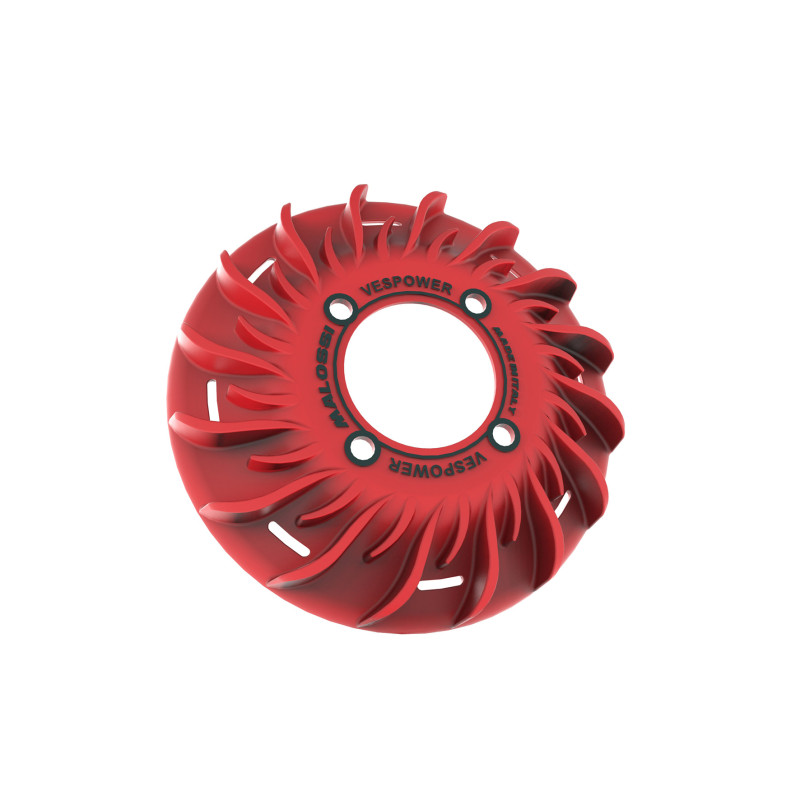

VESPower Ignitions Range of complete ignitions for vintage gear Vespa. In order to allow an easy and perfect installation, a specific version for each model has been studied. The new ignition range features: Lightened flywheel (weight 1,2 kg) with moment of inertia equal to 28 Kg/cm² (see attached chart). It is made from forged with external set up for additional masses (not included into the kit). 12 V (90 Watt ) 4-pole stator with output for battery charging. Red colored plastic fan with advanced booster cooling secondary fins (optimized fan profile and distribution absorption). Wiring…

Besides its improved fuel curves, efforts from Malossi’s technical staff resulted with a rev limiter increase of 2,200 RPM depending on the vehicle, making Force Master an even higher performing ECU! Force Master allows to change the injection in order to fit perfectly the Malossi 4-stroke and original cylinders. Carburation adjusting ± 6% at min/medium/max RPM limiter : + 2,200 RPM Original 7.800 - Malossi 10.000 3 different maps : curve 0 : original exhaust system, original cylinder, original head, original camshaft and original filter curve 1 : original exhaust system, cylinder with kit…

ELECTRONIC COILS The continuous development of electronics in the automotive segment led Malossi to the creation and marketing of a complete line of electronic coils for scooters to be used on the street and for races which is at the highest level of technology. Each electronic coil model was expressly studied for the scooter it will be fitted on, and this is the reason why after endless tests on the bench, on rollers and on the racing track an optimal start up map (fixed or variable) has been prepared in order to obtain the best performances of the vehicle. The Malossi electronic coils were…

LIMITLESS Have you heard of the theory that argues we use only twenty per cent of our brain? With Force Master 3 you'll use a hundred per cent... of your engine! To improve our most advance control module, we designed with vision, starting with the milestones achieved so far. Thus was conceived Force Master 3, a futuristic control module both in hardware and in software. INTEGRATED LAMBDA EMULATOR The original control module of the scooter, for analysis of the air/fuel ratio and to adjust the carburetion accordingly, normally interfaces with the lambda sensor installed on the silencer. force…

The Injtronic engine control unit is the natural evolution of the original Piaggio system and enhances vehicle performance. The latest generation 32 bit microprocessor and hardware designed according to the most recent automotive quality standards make up the RACING DNA of this device. Designed to be plug & play, in other words compatible with the original sensors and actuators, the control unit only needs simple throttle calibration to synchronize the engine electronic control system. The calibrations and fine-tuning allow for a definite increase in engine performance. Technical features…

Besides its improved fuel curves, efforts from Malossi’s technical staff resulted with a rev limiter increase of 1.300 RPM depending on the vehicle, making Force Master an even higher performing ECU! Force Master allows to change the injection in order to fit perfectly the Malossi 4-stroke and original cylinders. Carburation adjusting ± 20% at min/medium/max RPM limiter : + 1.300 RPM Original 9.700 - Malossi 11.000 4 different maps : curve 0 : Malossi exhaust system with db killer, original cylinder, original head, original camshaft and original filter curve 1 : original exhaust system,…

With an all-new look, the Force Master 2.1 control unit is much easier to configure. Making products more ergonomic and easy to use has always been a Malossi goal: Force Master 2.1 is a contemporary, adequate and super performing product. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter. Technical details Carburation adjusting ±…

MALOSSI TRACTION FREE Malossi Traction Free is a device designed especially for Yamaha TMax 530 and 560 cc maxiscooters to inhibit traction control and/or the vehicle’s speed limiter. The device has been designed to ensure that all tuning stages proposed by Malossi for this particular vehicle can express their utmost potential, bypassing the limitations set by the parent company for the standard vehicle. Since Malossi tunings are designed mainly for use on the track, it was important that an overly invasive traction control be excluded, and that the maximum speed the vehicle was able to reach…

ELECTRONIC COILS The continuous development of electronics in the automotive segment led Malossi to the creation and marketing of a complete line of electronic coils for scooters to be used on the street and for races which is at the highest level of technology. Each electronic coil model was expressly studied for the scooter it will be fitted on, and this is the reason why after endless tests on the bench, on rollers and on the racing track an optimal start up map (fixed or variable) has been prepared in order to obtain the best performances of the vehicle. The Malossi electronic coils were…
