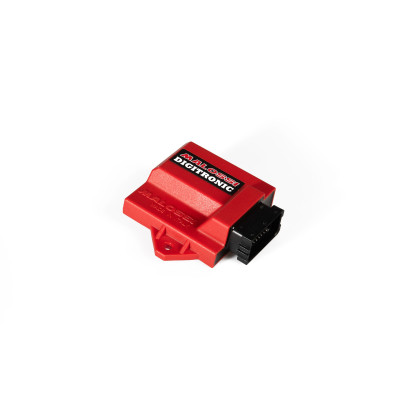

DIGITRONIC for 4-Stroke engines Digital electronic coil featuring a timing advance map in memory on the microprocessor. 500 rpm increase of limiter. Timing advance map controlled by 16 break pointsin order to perfectly fit both Malossi and original 4-stroke cylinders. Controls choke automatically based on engine temperature. RPM limiter : + 500 RPM Attention: The Malossi Engine Control Unit Art. 5512341 is made for vehicles that original have an IMMOBILIZER key, but do not have the Immobilzer internally. Only the LED on the dash will remain active.

With an all-new look, the Force Master 2.1 control unit is much easier to configure. Making products more ergonomic and easy to use has always been a Malossi goal: Force Master 2.1 is a contemporary, adequate and super performing product. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter. Technical details Carburation adjusting ±…

The use of the new O 2 controller allows for carburetion management in the area where the Lambda sensor controls the air/petrol mixture to be introduced into the combustion chamber. This device is able to make the Lambda sensor work at a value other than stoichiometric, improving the A/F (Air/Fuel ratio) to improve torque and power while respecting the engine’s DNA. Malossi’s research and development department’s main objective is to ensure that each vehicle has a calibration designed to optimise performance and consumption. The evolution that engine control systems have undergone in recent…

We suggest to use the O 2 controller to further optimize both carburetion and performances in transistors. In latest generation motorcycles, thanks to lambda sensor, the CDI can rectify the fuel quantity to be injected in order to reach a constant carburetion even in Closed Loop area. The O 2 controller permits to totally control the carburetion as to obtain the best air/fuel ratio. Malossi Lambda emulator is a device able to simulate signals from lambda sensor which original CDI is expected to receive. In this way, original lambda sensor is used to obtain best carburetion without the…

Malossi is proud to offer its new Digitronic ECU with variable ignition timing! Compared to the original ECU, Malossi has completely modified the ignition timing performance maps and increased the rev limit to 15,000 RPMs. The new Digitronic controls the ignition timing and SAS valve. Ignition Timing Performance Map The ignition timing is controlled by performing a linear interpolation of a tri-dimensional performance map, containing 16 break points for engine speed and 8 break points for engine temperature. SAS Valve Performance Map The secondary air supply to the base of the throttle body…

With an all-new look, the Force Master 2.1 control unit is much easier to configure. Making products more ergonomic and easy to use has always been a Malossi goal: Force Master 2.1 is a contemporary, adequate and super performing product. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter. Technical details Carburation adjusting ±…

We suggest to use the O 2 controller to further optimize both carburetion and performances in transistors. In latest generation motorcycles, thanks to lambda sensor, the CDI can rectify the fuel quantity to be injected in order to reach a constant carburetion even in Closed Loop area. The O 2 controller permits to totally control the carburetion as to obtain the best air/fuel ratio. Malossi Lambda emulator is a device able to simulate signals from lambda sensor which original CDI is expected to receive. In this way, original lambda sensor is used to obtain best carburetion without the…

Malossi is proud to offer its new Digitronic ECU with variable ignition timing! Compared to the original ECU, Malossi has completely modified the ignition timing performance maps and increased the rev limit to 15,000 RPMs. The new Digitronic controls the ignition timing and SAS valve. Ignition Timing Performance Map The ignition timing is controlled by performing a linear interpolation of a tri-dimensional performance map, containing 16 break points for engine speed and 8 break points for engine temperature. SAS Valve Performance Map The secondary air supply to the base of the throttle body…

ELECTRONIC COILS The continuous development of electronics in the automotive segment led Malossi to the creation and marketing of a complete line of electronic coils for scooters to be used on the street and for races which is at the highest level of technology. Each electronic coil model was expressly studied for the scooter it will be fitted on, and this is the reason why after endless tests on the bench, on rollers and on the racing track an optimal start up map (fixed or variable) has been prepared in order to obtain the best performances of the vehicle. The Malossi electronic coils were…

With an all-new look, the Force Master 2.1 control unit is much easier to configure. Making products more ergonomic and easy to use has always been a Malossi goal: Force Master 2.1 is a contemporary, adequate and super performing product. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter. Technical details Carburation adjusting ±…

Additional non-magnetic stainless steel inertia flywheel Ø 94.5 mm, 296 g, providing improved response and smoother rotation speeds.

Besides its improved fuel curves, efforts from Malossi’s technical staff resulted with a rev limiter increase depending on the vehicle, making Force Master an even higher performing ECU! Force Master allows to change the injection in order to fit perfectly the Malossi 4-stroke and original cylinders. Carburation adjusting ± 20% at min/medium/max RPM limiter : Original 9.800 - Malossi 9.800 4 different maps : curve 0 - vehicle version 125 cc : original exhaust system, Malossi cylinder, original head, original camshaft and original filter curve 1 - vehicle version 125 cc : Malossi exhaust…
