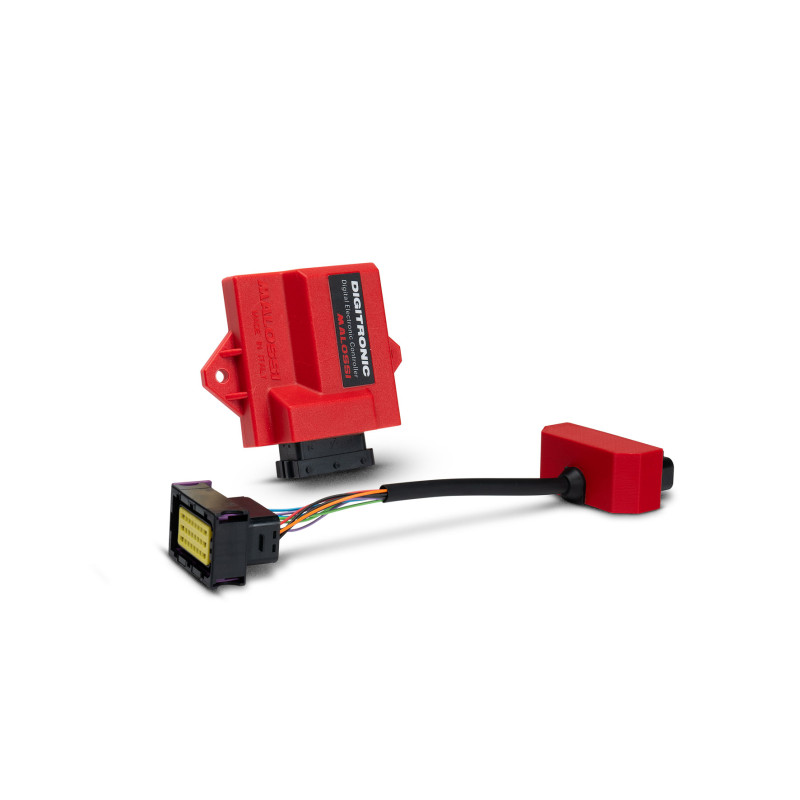

MALOSSI - Digitronic variable advance
5519971
€215.78
€183.41
Save 15%
Malossi is proud to offer its new Digitronic ECU with variable ignition timing! Compared to the original ECU, Malossi has completely modified the ignition timing performance maps and increased the rev limit to 15,000 RPMs. The new Digitronic controls the ignition timing and SAS valve. Ignition Timing Performance Map The ignition timing is controlled by performing a linear interpolation of a tri-dimensional performance map, containing 16 break points for engine speed and 8 break points for engine temperature. SAS Valve Performance Map The secondary air supply to the base of the throttle body…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
Malossi is proud to offer its new Digitronic ECU with variable ignition timing!
Compared to the original ECU, Malossi has completely modified the ignition timing performance maps and increased the rev limit to 15,000 RPMs.
The new Digitronic controls the ignition timing and SAS valve.
Ignition Timing Performance Map
The ignition timing is controlled by performing a linear interpolation of a tri-dimensional performance map, containing 16 break points for engine speed and 8 break points for engine temperature.
SAS Valve Performance Map
The secondary air supply to the base of the throttle body enables the engine management system to compensate for the non-linearity typical in carburettor systems.
The SAS Valve (Secondary Air Source) is controlled by the ECU which performs a linear interpolation of a performance map, containing 16 break points for engine speed and 8 break points for engine temperature.
The SAS Valve reduces emissions and optimizes engine performance for all operating conditions.
Designed to be plug & play, in other words compatible with the original sensors and actuators
The calibrations and fine-tuning allow for a definite increase in engine performance.
- Timing adjusting
- RPM limiter : 15,000 RPM
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Documents and videos
Vehicle compatibility (3 vehicles)
Yamaha(3)
- DT 50 R 50 2T LC euro 2 (MINARELLI AM 6)
- DT 50 X 50 2T LC euro 2 (MINARELLI AM 6)
- TZR 50 2T LC (MINARELLI AM 6)
5519971
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Yamaha
- Vehicle
- Yamaha DT 50 R 50 2T LC euro 2 (MINARELLI AM 6)
Yamaha DT 50 X 50 2T LC euro 2 (MINARELLI AM 6)
Yamaha TZR 50 2T LC (MINARELLI AM 6)
