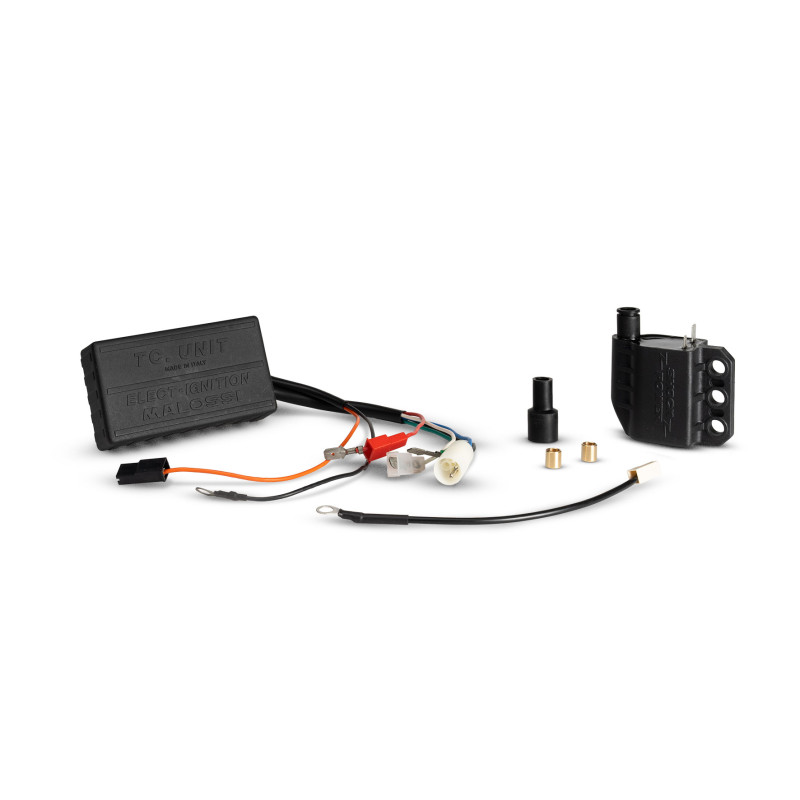

MALOSSI - % DIGITRONIC PVM FIXED ADVANCE digital elec.contr.
55 9207
€207.42
€176.31
Save 15%
Handling 4-5 days
ELECTRONIC COILS The continuous development of electronics in the automotive segment led Malossi to the creation and marketing of a complete line of electronic coils for scooters to be used on the street and for races which is at the highest level of technology. Each electronic coil model was expressly studied for the scooter it will be fitted on, and this is the reason why after endless tests on the bench, on rollers and on the racing track an optimal start up map (fixed or variable) has been prepared in order to obtain the best performances of the vehicle. The Malossi electronic coils were…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
ELECTRONIC COILS
The continuous development of electronics in the automotive segment led Malossi to the creation and marketing of a complete line of electronic coils for scooters to be used on the street and for races which is at the highest level of technology.
Each electronic coil model was expressly studied for the scooter it will be fitted on, and this is the reason why after endless tests on the bench, on rollers and on the racing track an optimal start up map (fixed or variable) has been prepared in order to obtain the best performances of the vehicle. The Malossi electronic coils were designed to allow also a very easy assembling, since they are interchangeable with the original boxes. They are compact and ergonomic, so they can be connected perfectly to the original connectors.
Furthermore, these coils allow the elimination of the rpm limiter installed on some standard power boxes, enabling in this way the full exploitation of the engine's power and torque even at the highest regimes, up to 20.000 rpm. These electronic coils are based on capacitive discharges, therefore they allow maximum limitation of circuit transients during voltage discharge, while obtaining a virtually perfect peak voltage on the spark plug (35.000 - 50.000 volts depending on the engine regime); moreover they grant extremely high discharge voltages and currents with surprising steadiness with respect to engine rpm variation.
Technical features
- Feeding of the electronic coil: original
- Maximum number of revolutions/minute: 20.000
- Voltage discharge: 35.000 – 50.000 volt
- Advance: fixed
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Vehicle compatibility (43 vehicles)
Aprilia(4)
- SCARABEO STREET 50 2T (PIAGGIO)
- SR (carb.) 50 2T LC 2004→ (PIAGGIO)
- SR R (carb.) 50 2T LC (PIAGGIO)
- SR Street 50 2T LC euro 2
Derbi(3)
- ATLANTIS - BULLET 50 2T 2003→
- GP1 50 2T LC
- GP1 REVOLUTION 50 2T LC
Gilera(10)
- DNA 50 2T LC
- EASY MOVING 50 2T
- ICE 50 2T
- RUNNER 50 2T LC
- RUNNER SP 50 2T LC 2006→ (C451M)
- RUNNER SP 50 2T LC ←2005
- STALKER 50 2T
- STORM 50 2T
- TYPHOON 50 2T
- TYPHOON X 50 2T
Italjet(1)
- JET SET 50 2T
Piaggio(22)
- DIESIS 50 2T
- FLY 50 2T
- FREE 50 2T
- LIBERTY 50 2T
- NRG 50 2T LC
- NRG EXTREME 50 2T
- NRG EXTREME 50 2T LC
- NRG MC2 50 2T LC 1998→
- NRG MC2 50 2T LC ←1997
- NRG MC3 DD 50 2T LC
- NRG MC3 DT 50 2T
- NRG Power DD 50 2T LC
- NRG Power DT 50 2T (C453M)
- NTT 50 2T LC
- QUARTZ 50 2T LC
- SFERA 50 2T
- SFERA RESTYLING 50 2T
- ZIP 50 2T 2000→ (C25EM)
- ZIP 50 2T ←1999
- ZIP Fast Rider 50 2T
- ZIP SP 50 2T LC 2001→
- ZIP SP 50 2T LC ←2000
Vespa(3)
- ET2 50 2T 2000→
- ET2 50 2T ←1999
- LX 50 2T
55 9207
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Aprilia
Derbi
Gilera
Italjet
Piaggio
Vespa - Vehicle
- Aprilia SCARABEO STREET 50 2T (PIAGGIO)
Aprilia SR (carb.) 50 2T LC 2004→ (PIAGGIO)
Aprilia SR R (carb.) 50 2T LC (PIAGGIO)
Aprilia SR Street 50 2T LC euro 2
Derbi ATLANTIS - BULLET 50 2T 2003→
Derbi GP1 50 2T LC
Derbi GP1 REVOLUTION 50 2T LC
Gilera DNA 50 2T LC
Gilera EASY MOVING 50 2T
Gilera ICE 50 2T
Gilera RUNNER 50 2T LC
Gilera RUNNER SP 50 2T LC 2006→ (C451M)
Gilera RUNNER SP 50 2T LC ←2005
Gilera STALKER 50 2T
Gilera STORM 50 2T
Gilera TYPHOON 50 2T
Gilera TYPHOON X 50 2T
Italjet JET SET 50 2T
Piaggio DIESIS 50 2T
Piaggio FLY 50 2T
Piaggio FREE 50 2T
Piaggio LIBERTY 50 2T
Piaggio NRG 50 2T LC
Piaggio NRG EXTREME 50 2T
Piaggio NRG EXTREME 50 2T LC
Piaggio NRG MC2 50 2T LC 1998→
Piaggio NRG MC2 50 2T LC ←1997
Piaggio NRG MC3 DD 50 2T LC
Piaggio NRG MC3 DT 50 2T
Piaggio NRG Power DD 50 2T LC
Piaggio NRG Power DT 50 2T (C453M)
Piaggio NTT 50 2T LC
Piaggio QUARTZ 50 2T LC
Piaggio SFERA 50 2T
Piaggio SFERA RESTYLING 50 2T
Piaggio ZIP 50 2T 2000→ (C25EM)
Piaggio ZIP 50 2T ←1999
Piaggio ZIP Fast Rider 50 2T
Piaggio ZIP SP 50 2T LC 2001→
Piaggio ZIP SP 50 2T LC ←2000
Vespa ET2 50 2T 2000→
Vespa ET2 50 2T ←1999
Vespa LX 50 2T
