With an all-new look, the Force Master 2.1 control unit is much easier to configure. Making products more ergonomic and easy to use has always been a Malossi goal: Force Master 2.1 is a contemporary, adequate and super performing product. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter. Technical details Carburation adjusting ±…

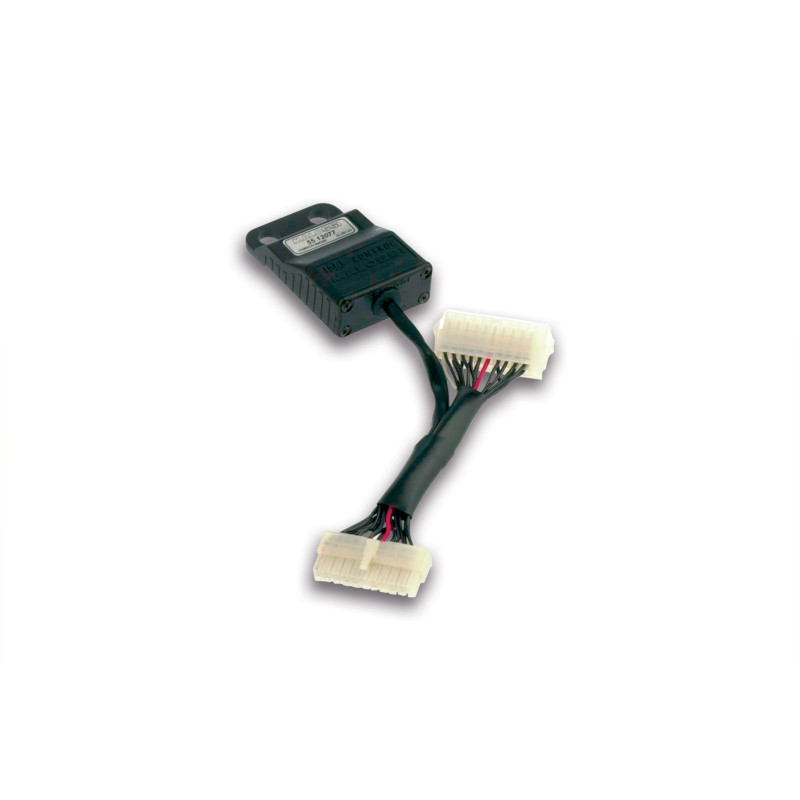

The use of the new O 2 controller allows for carburetion management in the area where the Lambda sensor controls the air/petrol mixture to be introduced into the combustion chamber. This device is able to make the Lambda sensor work at a value other than stoichiometric, improving the A/F (Air/Fuel ratio) to improve torque and power while respecting the engine’s DNA. Malossi’s research and development department’s main objective is to ensure that each vehicle has a calibration designed to optimise performance and consumption. The evolution that engine control systems have undergone in recent…

STROBE CONTROLLER The perfect accessory for our new MHR TEAM II Malossi inner rotor ignitions. This compact tool not only allows the advance to be checked with disarming ease, thanks to a 200 lm light with a duration of 10 µs and extremely reduced delay (<1µs), it also completely replaces classic strobe guns thanks to its technical characteristics, decidedly superior to many guns currently available on the market. To activate the controller, the cables simply need to be connected to the battery and ignition coil. Once map 0 has been set in the MHR TEAM II Malossi , inner rotor ignitions,…

MALOSSI TRACTION FREE Malossi Traction Free is a device designed especially for Yamaha TMax 530 and 560 cc maxiscooters to inhibit traction control and/or the vehicle’s speed limiter. The device has been designed to ensure that all tuning stages proposed by Malossi for this particular vehicle can express their utmost potential, bypassing the limitations set by the parent company for the standard vehicle. Since Malossi tunings are designed mainly for use on the track, it was important that an overly invasive traction control be excluded, and that the maximum speed the vehicle was able to reach…

With an all-new look, the Force Master 2.1 control unit is much easier to configure. Making products more ergonomic and easy to use has always been a Malossi goal: Force Master 2.1 is a contemporary, adequate and super performing product. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter. Technical details Carburation adjusting ±…

MHR Team II ignition is a great innovation!!! Manages multiple maps simultaneously without having to resort to a hand-held device, with just a simple click. Ability to shift the selected map by moving the OFFSET (± 2°). The inner rotor ignition systems designed by Malossi are based on the state-of-the-art technology applied to racing. Such a new system resulted from the need to overcome the technical limitations imposed by conventional flywheel ignition, which cannot ensure consistent performance over 10,000 rpm and causes severe setting-up problems for racing vehicles. We made the control…

The inner rotor ignition systems designed by Malossi are based on the state-of-the-art technology applied to racing. Such a new system resulted from the need to overcome the technical limitations imposed by conventional flywheel ignition, which cannot ensure consistent performance over 10,000 rpm and causes severe setting-up problems for racing vehicles. We made the control unit even more immune to interferences developing an uP STM8 - 8 bit microprocessor with processing speed of 20MIPS, guaranteeing spark timing with greater accuracy than prior versions! The MHR version includes a control…

Malossi is proud to offer its new Digitronic ECU with variable ignition timing! Compared to the original ECU, Malossi has completely modified the ignition timing performance maps and increased the rev limit to 15,000 RPMs. The new Digitronic controls the ignition timing and SAS valve. Ignition Timing Performance Map The ignition timing is controlled by performing a linear interpolation of a tri-dimensional performance map, containing 16 break points for engine speed and 8 break points for engine temperature. SAS Valve Performance Map The secondary air supply to the base of the throttle body…

Malossi is proud to offer its new Digitronic ECU with variable ignition timing! Compared to the original ECU, Malossi has completely modified the ignition timing performance maps and increased the rev limit to 15,000 RPMs. The new Digitronic controls the ignition timing and SAS valve. Ignition Timing Performance Map The ignition timing is controlled by performing a linear interpolation of a tri-dimensional performance map, containing 16 break points for engine speed and 8 break points for engine temperature. SAS Valve Performance Map The secondary air supply to the base of the throttle body…

The Injtronic engine control unit is the natural evolution of the original Piaggio system and enhances vehicle performance. The latest generation 32 bit microprocessor and hardware designed according to the most recent automotive quality standards make up the RACING DNA of this device. Designed to be plug & play, in other words compatible with the original sensors and actuators, the control unit only needs simple throttle calibration to synchronize the engine electronic control system. The calibrations and fine-tuning allow for a definite increase in engine performance. Technical features…

When preparing motors, ignition usually gets secondary attention. Yet this component is of vital importance since it is the one that manages the exact moment in which to ignite the spark on the glow plug and regulates the amount of current that determines the quality of the spark in order to obtain optimal combustion. Both in prepared and original engines, replacement with a newer and more performing ignition is an operation that can breathe new life into the engine itself and allows for more efficient and simple fine tuning. alossi and its team of engineers are proud to announce Power , the…

Besides its improved fuel curves, efforts from Malossi’s technical staff resulted with a rev limiter increase of 1.200 RPM depending on the vehicle, making Force Master an even higher performing ECU! Force Master allows to change the injection in order to fit perfectly the Malossi 4-stroke and original cylinders. Carburation adjusting ± 20% at min/medium/max RPM limiter : + 1.200 RPM Original 9.800 - Malossi 11.000 4 different maps : curve 0 : original exhaust system, original cylinder, original head, original camshaft and original filter curve 1 : original exhaust system, Malossi cylinder,…
