Half-pulley made of aluminium alloy with silicon content, machined on very high precision CNC machines and diamond-finished, with recalculated profiling of the roller sliding guides.

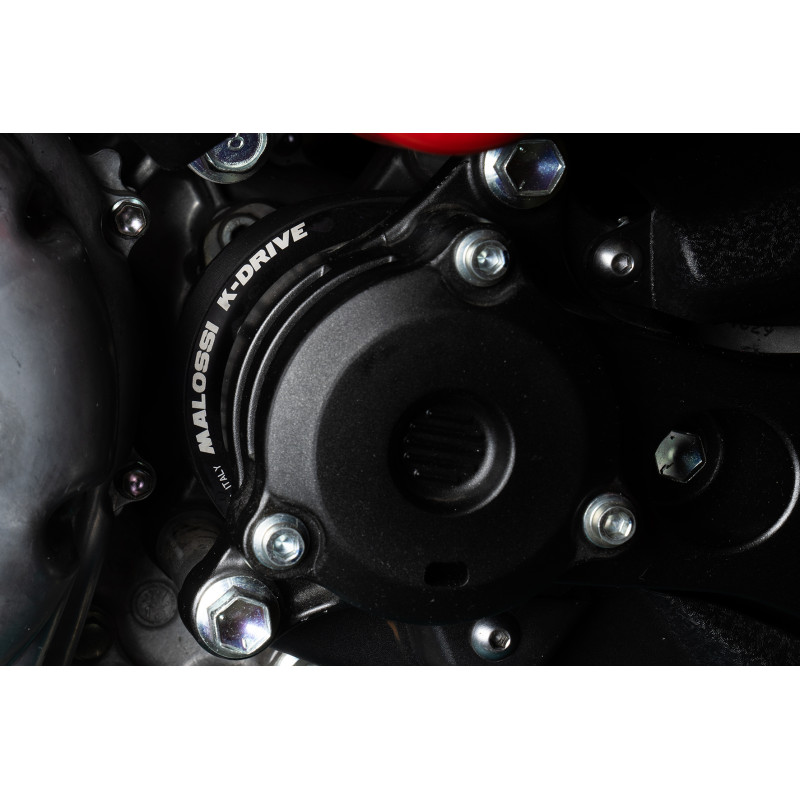

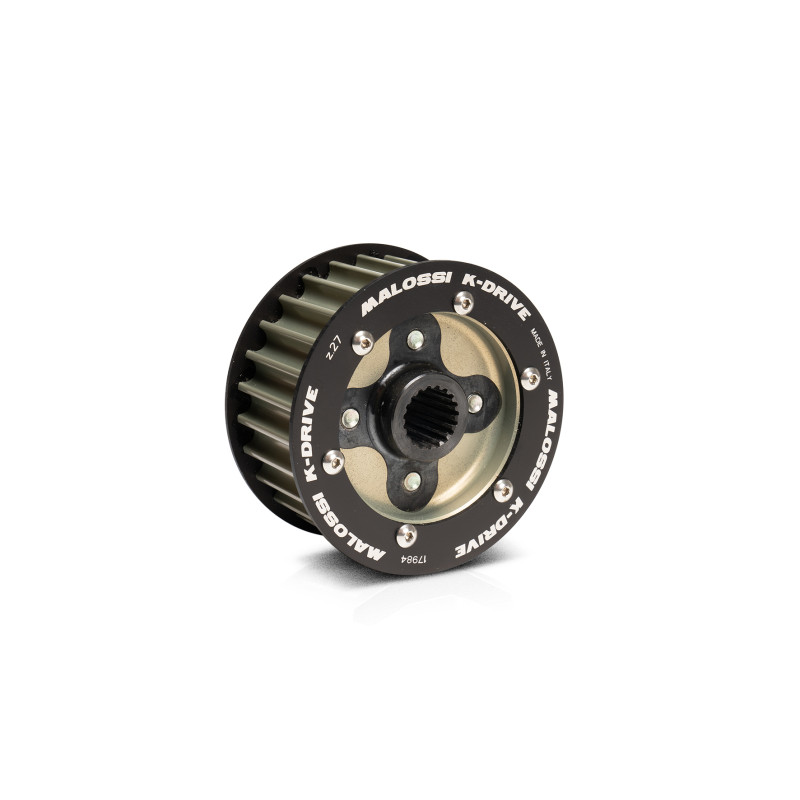

K-DRIVE MALOSSI Malossi K-DRIVE is a lighter gear ratio than the original for the Yamaha Tmax 530 - 560 . Characterised by a sought-after appearance, the K-DRIVE crowns and pinions have different ratios to satisfy all the rider’s requirements. Pinion 6117912B Z 24 6118805B Z 25 6117913B Z 27 6118804B Z 27 6117914B Z 28 6118814 Z 28 6117915B Z 29 6118815 Z 29 Crown 6117916B Z 56 6117917B Z 57 6117918B Z 58 6118806B Z 60 TECHNICAL SPECIFICATIONS The crowns are made from aluminium subjected to hard oxidisation and are coloured black. With this treatment. Malossi has maintained a particularly…

A half pulley with integrated geared teeth on the external diameter designed to engage with an electric start motor. Completely interchangeable with the original pulley and adaptable to both MALOSSI MULTIVAR and original variator. Pulley with gear made of carbon steel and surface hardened dark for durability. Technical features: Material: carbon Steel External Diameter: 118 mm Heat Treated to a surface hardness of HRC 40-50 Dark surface finish Pulley Angle 14° Internal spline teeth: 18

K-DRIVE MALOSSI Malossi K-DRIVE is a lighter gear ratio than the original for the Yamaha Tmax 530 - 560 . Characterised by a sought-after appearance, the K-DRIVE crowns and pinions have different ratios to satisfy all the rider’s requirements. Pinion 6118805B Z 25 6118804B Z 27 6118814 Z 28 6118815 Z 29 Crown 6118806B Z 60 TECHNICAL SPECIFICATIONS The pinions are made from aluminium with hard oxidisation 25 microns deep. With this treatment Malossi has maintained a particularly light shape of the piece whilst guaranteeing high wear resistance. The central hub is made from a special steel…

Half-pulley made of aluminium alloy with silicon content, machined on very high precision CNC machines and diamond-finished, with recalculated profiling of the roller sliding guides.

New fixed half-pulley for Yamaha T Max 530! Larger external diameter (186 mm, +3 mm compared to the original one), redesigned working angle (13°) and diamond finish of the belt-side pulley surface to further increase the gearing range! This component completes the Multivar and renders it unparalleled! Suitable even to original variator. Note : In the event that the Ventilvar is coupled with the MULTIVAR 2000 MHR ABSOLUTELY DO NOT USE the spacer supplied with the variator kit, this would create interference between the belt and engine case.

VENTILVAR 2000 It’s a fixed half-pulley with a diamond finish of the belt-side pulley surface and a redesigned working angle to further increase the gearing range. This component completes the Multivar and renders it unparalleled. Specially designed for the line of variable-speed drives for scooters, it further improves the performance of the drive belt. It is not just a simple accessory, but a very important part for guaranteeing the long life of all the transmission components. The temperatures produced inside the crankcases where variators work with V-belts are prohibitive at critical…

"OVER RANGE" Malossi transmission system This new transmission system takes full advantage of the Malossi components already on sale last year, by adding several new parts that make the entire system particularly suited to the enormous power available. This latest system hinges on the new Fixed Pulley of the torque driver that has a larger diameter and the very latest specifications. The larger diameter of this pulley allows one to have a greater velocity-ratio range compared to the original pulley that has a notably smaller external diameter. Malossi engineers have also taken particular care…

Half-pulley made of aluminium alloy with silicon content, machined on very high precision CNC machines and diamond-finished, with recalculated profiling of the roller sliding guides.

Full over range transmission kit When the Big Deps engine and the Malossi engine crankcase are pushed to the limit, the transmission need to be able to withstand the strain. That’s why the Malossi Over Range was developed: a complete system designed to support ever-increasing performance. Larger pulley, total control The core feature of this kit is the new Fixed Pulley in the torque driver system , consisting of an increased diameter compared to its original. This enhancement extends to the transmission ratio range . What result does it provide? More effective acceleration and top performance…
