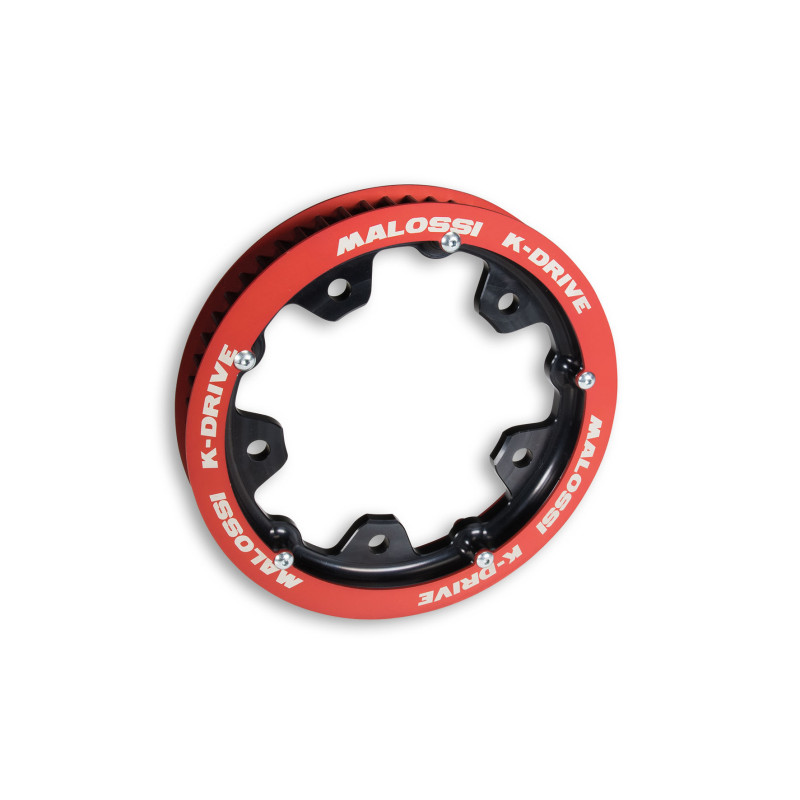

    MALOSSI - CROWN K-DRIVE z56

MALOSSI - CROWN K-DRIVE z56

6117916B
€281.44
€239.23 Save 15%
Handling 4-5 days

K-DRIVE MALOSSI Malossi K-DRIVE is a lighter gear ratio than the original for the Yamaha Tmax 530 - 560 . Characterised by a sought-after appearance, the K-DRIVE crowns and pinions have different ratios to satisfy all the rider’s requirements. Pinion 6117912B Z 24 6118805B Z 25 6117913B Z 27 6118804B Z 27 6117914B Z 28 6118814 Z 28 6117915B Z 29 6118815 Z 29 Crown 6117916B Z 56 6117917B Z 57 6117918B Z 58 6118806B Z 60 TECHNICAL SPECIFICATIONS The crowns are made from aluminium subjected to hard oxidisation and are coloured black. With this treatment. Malossi has maintained a particularly…

Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Quantity
Add to wishlist
In Stock

  Do you shop outside the EU?

click for Info!

  Specialized team

click here and write to us!

  Ask for info via WhatsApp!

Click HERE

  Found a lower price?

Write to us HERE

Many Secure Payment Methods, Credit Cards or PayPal

K-DRIVE MALOSSI

Malossi K-DRIVE is a lighter gear ratio than the original for the Yamaha Tmax 530 - 560.
Characterised by a sought-after appearance, the K-DRIVE crowns and pinions have different ratios to satisfy all the rider’s requirements.

Pinion
6117912B Z 24
6118805B Z 25
6117913B Z 27
6118804B Z 27
6117914B Z 28
6118814 Z 28
6117915B Z 29
6118815 Z 29

Crown
6117916B Z 56
6117917B Z 57
6117918B Z 58
6118806B Z 60

TECHNICAL SPECIFICATIONS

The crowns are made from aluminium subjected to hard oxidisation and are coloured black. With this treatment. Malossi has maintained a particularly light shape of the piece whilst guaranteeing high wear resistance. The teeth are shaped by using a special moulded tool to make the motor transmission with the belt smooth and silent. The teeth available are z. 56. 57. 58. 60. The markings are made on the red anodised sheets. screwed to the gear that holds the belt.

COUPLING TABLE K-DRIVE CROWN - PINION

Pinions Crowns Ratio % Ratio 530 - 560 cc
24 60 2,500 - 10.2% 530
24 59 2,458 - 8.3% 530
25 60 2,400 - 5.8% 560
25 59 2,360 - 4.0% 560
25 58 2,320 - 2.2% 560
26 60 2,308 - 1.7% 530 - 560
25 57 2,280 - 0.5% 560

26

59

2,269

Original

530 - 560

25 56 2,240 + 1.3% 560
26 58 2,231 + 1.7% 530 - 560
27 60 2,222 + 2.1% 530 - 560
27 59 2,185 + 3.7% 530 - 560
27 58 2,148 + 5.3% 530 - 560
28 60 2,143 + 5.6% 530 - 560
27 57 2,111 + 7.0% 530 - 560
28 59 2,107 + 7.1% 530 - 560
28 58 2,071 + 8.7% 530 - 560
29 60 2,069 + 8.8% 530 - 560
28 57 2,036 + 10.3% 530 - 560
29 59 2,034 + 10.3% 530 - 560
29 58 2,000 + 11.9% 530 - 560
29 57 1,966 + 13.4% 530 - 560
29 56 1,931 + 14.9% 530 - 560

ATTENTION Attention: the combinations shown in this table are the only possible combinations, otherwise the toothed belt would be either too short or too long.

Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use

Documents and videos

Vehicle compatibility (7 vehicles)

Yamaha(7)
  • T MAX 530 ie 4T LC euro 4 2017→ (J415E)
  • T MAX 560 ie 4T LC euro 5 2020→2021 (J420E)
  • T MAX 560 ie 4T LC euro 5 2022→
  • T MAX DX 530 ie 4T LC euro 4 2017→ (J415E)
  • T MAX SX 530 ie 4T LC euro 4 2017→ (J415E)
  • T MAX Tech MAX 560 ie 4T LC euro 5 2020→2021 (J420E)
  • T MAX Tech MAX 560 ie 4T LC euro 5 2022→
6117916B

Data sheet

Country of origin
Italy
Vehicle brand
Yamaha
Vehicle
Yamaha T MAX 530 ie 4T LC euro 4 2017→ (J415E)
Yamaha T MAX 560 ie 4T LC euro 5 2020→2021 (J420E)
Yamaha T MAX 560 ie 4T LC euro 5 2022→
Yamaha T MAX DX 530 ie 4T LC euro 4 2017→ (J415E)
Yamaha T MAX SX 530 ie 4T LC euro 4 2017→ (J415E)
Yamaha T MAX Tech MAX 560 ie 4T LC euro 5 2020→2021 (J420E)
Yamaha T MAX Tech MAX 560 ie 4T LC euro 5 2022→

16 other products in the same category:

MALOSSI - VENTILVAR 2000 half-pulley
  • Universal
  • -12%
  • New

MALOSSI - VENTILVAR 2000 half-pulley

€47.57 €41.86 -12%
Availability: 3 In Stock

VENTILVAR 2000 It’s a fixed half-pulley with a diamond finish of the belt-side pulley surface and a redesigned working angle to further increase the gearing range. This component completes the Multivar and renders it unparalleled. Specially designed for the line of variable-speed drives for scooters, it further improves the performance of the drive belt. It is not just a simple accessory, but a very important part for guaranteeing the long life of all the transmission components. The temperatures produced inside the crankcases where variators work with V-belts are prohibitive at critical…

MALOSSI - Torque driver
  • Universal
  • -15%
  • New

MALOSSI - Torque driver

€144.41 €122.75 -15%
Availability: 3 In Stock

TORQUE DRIVER The mobile driven split pulley comes from our racing department's many years of experience, and is manufactured with the best possible special nitrided steels in order to ensure a long life. This component called Torque Driver for its specific function of determining the exact shifting moment, was calculated to give the vehicle the maximum possible acceleration in connection with the specific power of any single engine. The spiral's peculiar shape was studied to fix the RPMs on the point of maximum power. It was expressly created to complete the development of boosted motors…

MALOSSI - Torque driver
  • Universal
  • -15%
  • New

MALOSSI - Torque driver

€97.89 €83.21 -15%
Availability: 1 In Stock

TORQUE DRIVER The mobile driven split pulley comes from our racing department's many years of experience, and is manufactured with the best possible special nitrided steels in order to ensure a long life. This component called Torque Driver for its specific function of determining the exact shifting moment, was calculated to give the vehicle the maximum possible acceleration in connection with the specific power of any single engine. The spiral's peculiar shape was studied to fix the RPMs on the point of maximum power. It was expressly created to complete the development of boosted motors…

MALOSSI - Over range mhr - piaggio 2000 (long crankcase)
  • Universal
  • -15%
  • New

MALOSSI - Over range mhr - piaggio 2000 (long...

€469.40 €398.99 -15%
Availability: 3 In Stock

Kit Over Range MHR Aluminum Malossi: High Performance Scooter Transmission The transmission is one of the key components in a scooter . The kit Malossi MHR Aluminum Over Range is designed to improve efficiency and engine power, ensuring longevity and tuning flexibility. The centrepiece of the new kit Malossi variator transmission remains the Multivar , in constant evolution, which isaccompanied by two sets of rollers to adjust the operation of the transmission according to your needs. With the wide range of variator rollers available in our catalogue, the set-ups are virtually endless. The…

MALOSSI - % torque driver
  • Universal
  • -15%
  • New

MALOSSI - % torque driver

€95.61 €81.27 -15%
Availability: 3 In Stock

TORQUE DRIVER The mobile driven split pulley comes from our racing department's many years of experience, and is manufactured with the best possible special nitrided steels in order to ensure a long life. This component called Torque Driver for its specific function of determining the exact shifting moment, was calculated to give the vehicle the maximum possible acceleration in connection with the specific power of any single engine. The spiral's peculiar shape was studied to fix the RPMs on the point of maximum power. It was expressly created to complete the development of boosted motors…

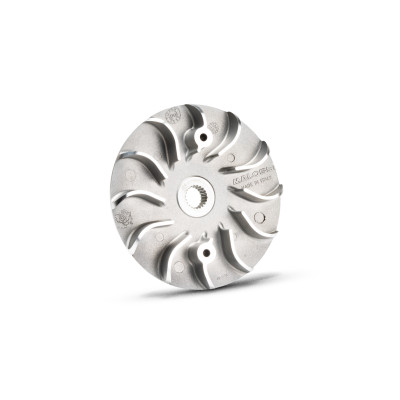

MALOSSI - VENTILVAR 2000 half-pulley Ø 130
