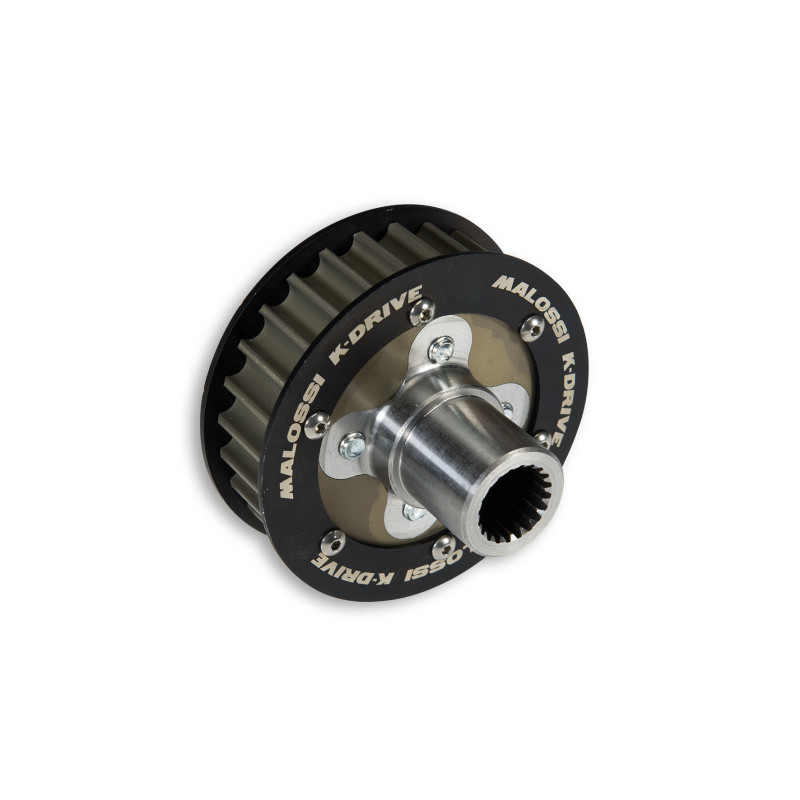

    MALOSSI - % K-DRIVE PINION z28

MALOSSI - % K-DRIVE PINION z28

6117986B
€237.00
€201.45 Save 15%
Handling 4-5 days

MALOSSI K-DRIVE Malossi K-DRIVE is a lighter gear ratio than the original for the Yamaha Tmax 530 and Kymco AK 550. Characterised by a sought-after appearance, the K-DRIVE crowns and pinions have different ratios to satisfy all the rider’s requirements. Pinion 6117983B Z 24 6117984B Z 27 6117986B Z 28 6117985B Z 29 Crown 6117988B Z 56 6117982B Z 57 6117987B Z 58

Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Quantity
Add to wishlist
In Stock

  Do you shop outside the EU?

click for Info!

  Specialized team

click here and write to us!

  Ask for info via WhatsApp!

Click HERE

  Found a lower price?

Write to us HERE

Many Secure Payment Methods, Credit Cards or PayPal

MALOSSI K-DRIVE

Malossi K-DRIVE is a lighter gear ratio than the original for the Yamaha Tmax 530 and Kymco AK 550.
Characterised by a sought-after appearance, the K-DRIVE crowns and pinions have different ratios to satisfy all the rider’s requirements.

Pinion
6117983B Z 24
6117984B Z 27
6117986B Z 28
6117985B Z 29

Crown
6117988B Z 56
6117982B Z 57
6117987B Z 58

COUPLING TABLE K-DRIVE CROWN - PINION
Pinions Crowns Ratio % Ratio
24 59 2,458 - 8.3%
26 59 2,269 Original
26 58 2,230 + 1.7%
27 59 2,185 + 3.7%
27 58 2,148 + 5.3%
27 57 2,111 + 6.9%
28 59 2,107 + 7.1%
28 58 2,071 + 8.7%
29 59 2,034 + 10.4%
28 57 2,035 + 10.4%
28 56 2,000 + 11.9%
29 58 2,000 + 11.9%
29 57 1,965 + 13.4%
29 56 1,931 + 14.9%

attention

TECHNICAL SPECIFICATIONS

The pinions are made from aluminium with hard oxidisation 25 microns deep. With this treatment Malossi has maintained a particularly light shape of the piece whilst guaranteeing high wear resistance.
The central hub is made from a special steel alloy, not heat treated in order to avoid making it too hard and thus causing friction problems with the motor transmission shaft. The following tooth options are proposed z.: 24. 27. 28. 29.

Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use

Documents and videos

Vehicle compatibility (1 vehicles)

Kymco(1)
  • AK 550 ie 4T LC euro 4 2017→2020 (SAA1)
6117986B

Data sheet

Country of origin
Italy
Vehicle brand
Kymco
Vehicle
Kymco AK 550 ie 4T LC euro 4 2017→2020 (SAA1)
