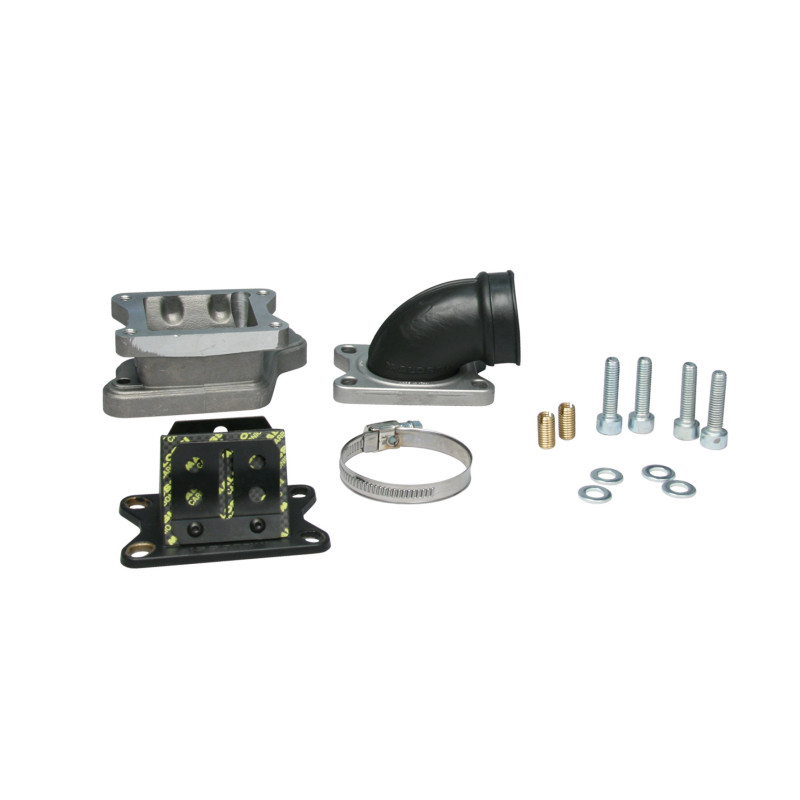

MALOSSI - X360 REED INT.MANIF. KIT (crankc.)PHBH VESPA PX 200 E
2014913
€167.11
€142.05
Save 15%
Handling 4-5 days
These new intake manifolds are supplied split up: the intake rubber can be rotated into the flange according to the specific requirements of the vehicle, in order to locate which is the best angle for the carburettor assembly.
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
These new intake manifolds are supplied split up: the intake rubber can be rotated into the flange according to the specific requirements of the vehicle, in order to locate which is the best angle for the carburettor assembly.
|
for PIAGGIO engines |
for YAMAHA-MINARELLI engines |
| PIAGGIO | Material | Inter-axis | Inter-axis | Ø Manifolds | Ø Inlet | Total length | Carburettors applicationsi | Note |
| 2014520 | VITON | 52 | 6,7 | 22 | 24,5 | 29 | PHBG 15-21 | Can be rotated of 360° |
| 2014519 | VITON | 52 | 6,7 | 22 | 28 | 29 | PHBG 15-21 Racing (linkage 28) PHBL 22-25 PHVB 22 | Can be rotated of 360° |
| 2013802 | VITON | 52 | 6,7 | 30 | 35 | 29 | PHBH 26-30 VHST 26-30 VHSH 30 | Can be rotated of 360° |
| YAMAHA | Material | Inter-axis | Inter-axis | Ø Manifolds | Ø Inlet | Total length | Carburettors applicationsi | Note |
| 2014524 | VITON | - | 6,7 | 22 | 24,5 | 33 | PHBG 15-21 | Can be rotated of 360° |
| 2014525 | VITON | - | 6,7 | 22 | 28 | 33 | PHVB 22 PHBL 22-25 PHBG 15-21 Racing (linkage 28) | Can be rotated of 360° |
| 2013847* | VITON | - | 6,7 | 30 | 35 | 52 | PHBH 26-30 VHST 26-30 VHSH 30 | Can be rotated of 360° |
NB: Correct installation requires modifications to surrounding parts. Art. 2013847
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Documents and videos
Vehicle compatibility (1 vehicles)
Vespa(1)
- PX E 200 2T
2014913
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Vespa
- Vehicle
- Vespa PX E 200 2T
