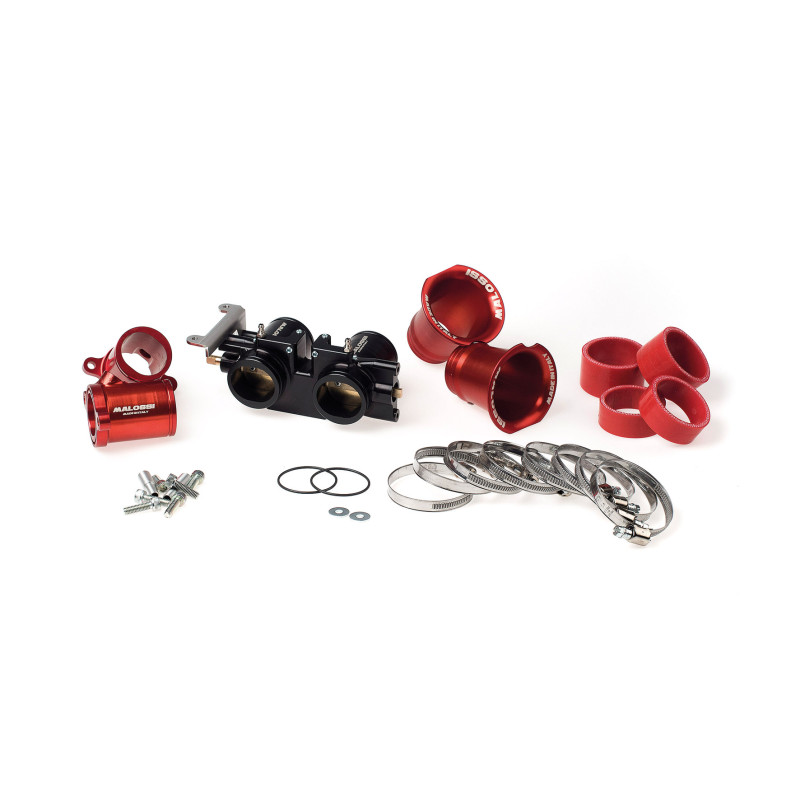

MALOSSI - Complete Ø 38 oval THROTTLE BODY MHR
1616722
€798.25
€678.52
Save 15%
Handling 4-5 days
More power for the T-Max The most powerful engines require an adequate and constant supply of fuel. Increasing the performance of the Yamaha T-Max, drawing from the extremely complete Malossi catalogue, has made it essential to build a specific throttle body able to ensure a performance that is unthinkable for the standard unit. Made of black anodized 7975-T6 aluminium, the MHR throttle body has been designed specifically to achieve maximum efficiency in combination with the 560 cc Malossi twin cylinder kit and with the Double PowerCam, providing the right intake to the engine in this…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
More power for the T-Max
The most powerful engines require an adequate and constant supply of fuel. Increasing the performance of the Yamaha T-Max, drawing from the extremely complete Malossi catalogue, has made it essential to build a specific throttle body able to ensure a performance that is unthinkable for the standard unit.
Made of black anodized 7975-T6 aluminium, the MHR throttle body has been designed specifically to achieve maximum efficiency in combination with the 560 cc Malossi twin cylinder kit and with the Double PowerCam, providing the right intake to the engine in this configuration.
The inner diameter of the throttle body is widened to 38 mm, while its length remains identical to the original so that it can be placed without difficulty in its standard position between the head and the airbox.
Its inner ducts are cylindrical near the horns, to become progressively oval-shaped in correspondence of the butterfly valve. Thanks to this variation of internal shape, the fresh gases are pushed with more energy towards the head which, featuring two intake valves, requires a significant width, offered by the oval section that continues to the end of the manifold.
The two manifolds supplied with the kit are oversized and can be installed only on a worked head without requiring further modifications. The specific horns for the MHR throttle body are calculated and optimized to achieve the maximum yield from the oval sections of the bodies, exploiting the perfect harmonization of the entire duct.
| Use | Racing |
| Level of compatible elaboration | Bi- Cilindro 4 tiempos 560 cc Code 3115423 |
 Head working | Double Power Camme Code 5915981 |
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Documents and videos
Vehicle compatibility (2 vehicles)
Yamaha(2)
- T MAX 530 ie 4T LC 2012→2014 (J409E)
- T MAX 530 ie 4T LC 2015→2016 (J409E)
1616722
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Yamaha
- Vehicle
- Yamaha T MAX 530 ie 4T LC 2012→2014 (J409E)
Yamaha T MAX 530 ie 4T LC 2015→2016 (J409E)
