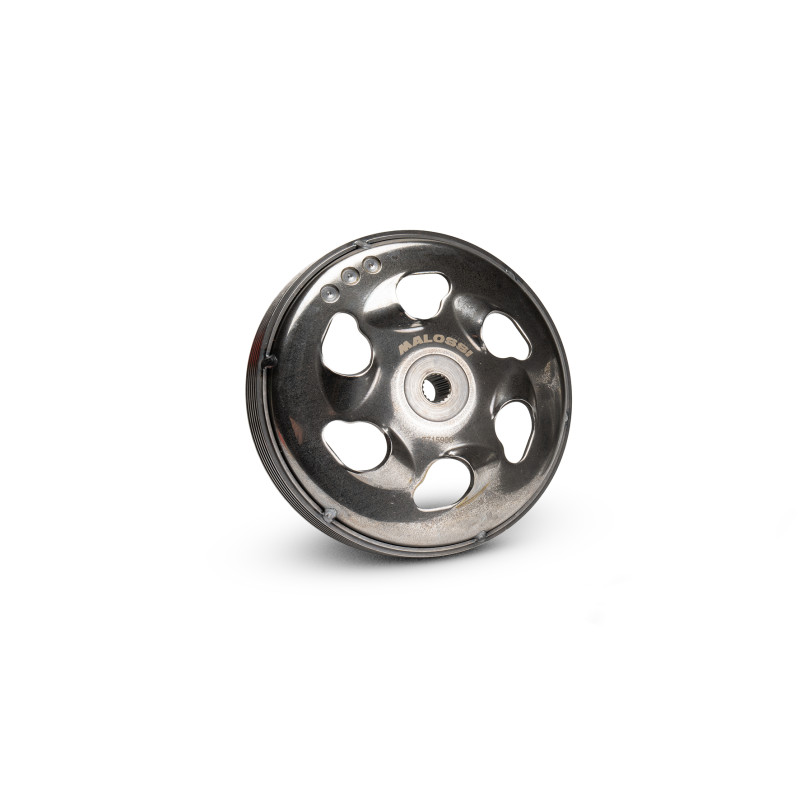

Clutch Bell with Reinforced Cooling Ring
The clutch bells with reinforced cooling ring consist of a finned annular reinforcement producing excellent heat dissipation caused primarily from stand still starts and quick accelerations from low speeds.
This technological innovation resulted from extensive testing within the Scooter racing circuit.
The clutch bell design is based on the following principals:
greater heat transfer surface area (finned section) lowers the working temperature of the clutch bell which dramatically increases the systems durability.
The clutch system is enormously stressed in city street riding, starts uphill and tight turn exits with a passenger.
That is why Malossi has fine tuned the Maxi Wing Clutch Bell to protect your clutch.
We must not discard the fact that the finned reinforcement ring is also a safeguard against failure. It has been designed to resist the elevated centrifugal forces due to large rotational speeds generated by high performance engines. Keep in mind that centrifugal force increases by the square of the rotational speed.
Technical Specifications
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Data sheet
POWER UP CLUTCH BASKET TECHNICAL FEATURES In high-strength steel with hardening surface treatment to improve resistance to wear, and consequently its service life. A TIG welded reinforcement ring on the outer bell diameter to efficiently counteract the centrifugal force developed by the higher rotation speed. For original clutch and Malossi POWER UP CLUTCH SYSTEM.
Clutch Bell with Reinforced Cooling Ring The clutch bells with reinforced cooling ring consist of a finned annular reinforcement producing excellent heat dissipation caused primarily from stand still starts and quick accelerations from low speeds. This technological innovation resulted from extensive testing within the Scooter racing circuit. The clutch bell design is based on the following principals: greater heat transfer surface area (finned section) lowers the working temperature of the clutch bell which dramatically increases the systems durability. The clutch system is enormously…
Clutch Bell with Reinforced Cooling Ring The clutch bells with reinforced cooling ring consist of a finned annular reinforcement producing excellent heat dissipation caused primarily from stand still starts and quick accelerations from low speeds. This technological innovation resulted from extensive testing within the Scooter racing circuit. The clutch bell design is based on the following principals: greater heat transfer surface area (finned section) lowers the working temperature of the clutch bell which dramatically increases the systems durability. The clutch system is enormously…
Clutch Bell with Reinforced Cooling Ring The clutch bells with reinforced cooling ring consist of a finned annular reinforcement producing excellent heat dissipation caused primarily from stand still starts and quick accelerations from low speeds. This technological innovation resulted from extensive testing within the Scooter racing circuit. The clutch bell design is based on the following principals: greater heat transfer surface area (finned section) lowers the working temperature of the clutch bell which dramatically increases the systems durability. The clutch system is enormously…
Technical Specifications Clutch Bell forged using Fe P04 deep-drawing steel; Carbon steel centre hub made of round stock and TIG welded; Surface hardened through nitriding; Finned reinforcement ring, made of machined carbon steel, black oxide surface finish, press fit; 100% dynamically balanced.
Clutch Bell with Reinforced Cooling Ring The clutch bells with reinforced cooling ring consist of a finned annular reinforcement producing excellent heat dissipation caused primarily from stand still starts and quick accelerations from low speeds. This technological innovation resulted from extensive testing within the Scooter racing circuit. The clutch bell design is based on the following principals: greater heat transfer surface area (finned section) lowers the working temperature of the clutch bell which dramatically increases the systems durability. The clutch system is enormously…
Maxi Clutch Bell Technical Specifications Clutch Bell forged using Fe DC04 deep-drawing steel; Carbon steel centre hub made of round stock and TIG welded; Anti-vibration band welded using a 3 point 120° pattern; 100% dynamically balanced; Surface hardened through nitriding.
Maxi Clutch Bell Technical Specifications Clutch Bell forged using Fe DC04 deep-drawing steel; Carbon steel centre hub made of round stock and TIG welded; Anti-vibration band welded using a 3 point 120° pattern; 100% dynamically balanced; Surface hardened through nitriding.
Technical Specifications Clutch Bell forged using Fe P04 deep-drawing steel; Carbon steel centre hub made of round stock and TIG welded; Anti-vibration band welded using a 3 point 120° pattern; 100% dynamically balanced; Surface hardened through nitriding.
Clutch Bell with Reinforced Cooling Ring The clutch bells with reinforced cooling ring consist of a finned annular reinforcement producing excellent heat dissipation caused primarily from stand still starts and quick accelerations from low speeds. This technological innovation resulted from extensive testing within the Scooter racing circuit. The clutch bell design is based on the following principals: greater heat transfer surface area (finned section) lowers the working temperature of the clutch bell which dramatically increases the systems durability. The clutch system is enormously…
Technical Specifications Clutch Bell forged using Fe P04 deep-drawing steel; Carbon steel centre hub made of round stock and TIG welded; Surface hardened through nitriding; Finned reinforcement ring, made of machined carbon steel, black oxide surface finish, press fit; 100% dynamically balanced.
Clutch Bell with Reinforced Cooling Ring The clutch bells with reinforced cooling ring consist of a finned annular reinforcement producing excellent heat dissipation caused primarily from stand still starts and quick accelerations from low speeds. This technological innovation resulted from extensive testing within the Scooter racing circuit. The clutch bell design is based on the following principals: greater heat transfer surface area (finned section) lowers the working temperature of the clutch bell which dramatically increases the systems durability. The clutch system is enormously…
Maxi Clutch Bell Technical Specifications Clutch Bell forged using Fe DC04 deep-drawing steel; Carbon steel centre hub made of round stock and TIG welded; Anti-vibration band welded using a 3 point 120° pattern; 100% dynamically balanced; Surface hardened through nitriding.
Clutch Bell with Reinforced Cooling Ring The clutch bells with reinforced cooling ring consist of a finned annular reinforcement producing excellent heat dissipation caused primarily from stand still starts and quick accelerations from low speeds. This technological innovation resulted from extensive testing within the Scooter racing circuit. The clutch bell design is based on the following principals: greater heat transfer surface area (finned section) lowers the working temperature of the clutch bell which dramatically increases the systems durability. The clutch system is enormously…
Clutch Bell with Reinforced Cooling Ring The clutch bells with reinforced cooling ring consist of a finned annular reinforcement producing excellent heat dissipation caused primarily from stand still starts and quick accelerations from low speeds. This technological innovation resulted from extensive testing within the Scooter racing circuit. The clutch bell design is based on the following principals: greater heat transfer surface area (finned section) lowers the working temperature of the clutch bell which dramatically increases the systems durability. The clutch system is enormously…
