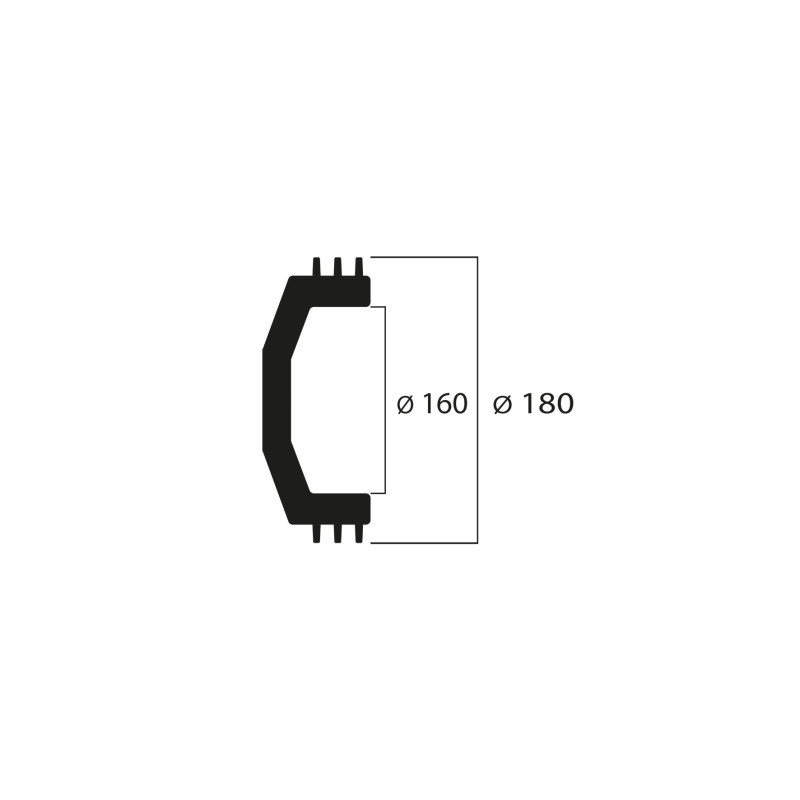

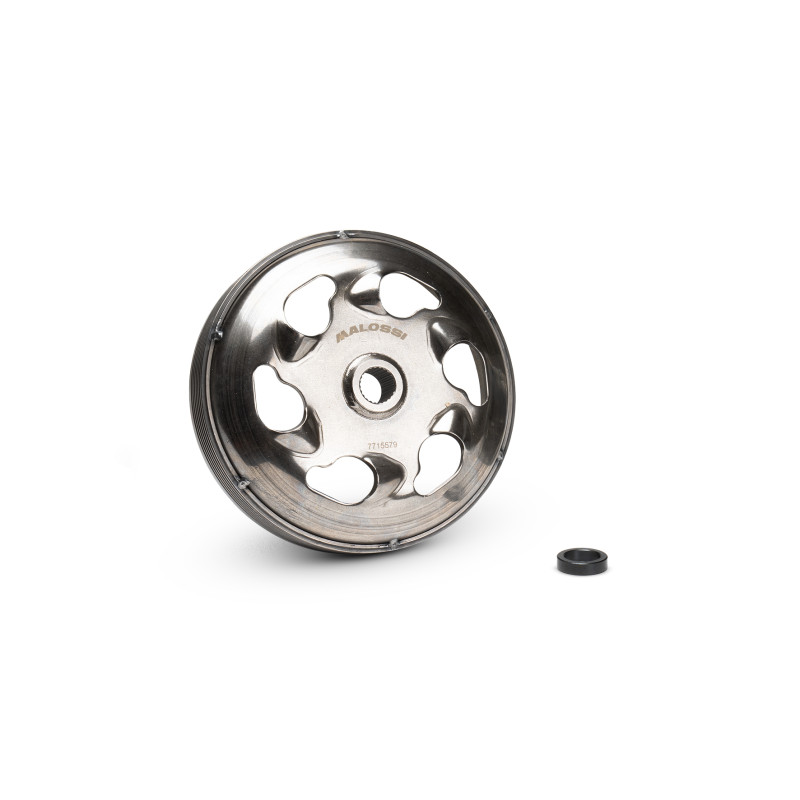

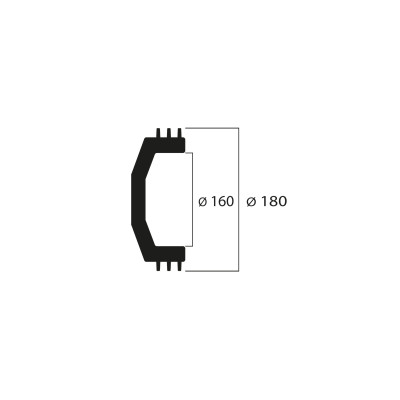

MALOSSI - MAXI WING CLUTCH BELL inner Ø 160 mm 1674 grams
7718431
€69.94
€61.55
Save 12%
Handling 4-5 days
Clutch Bell with Reinforced Cooling Ring The clutch bells with reinforced cooling ring consist of a finned annular reinforcement producing excellent heat dissipation caused primarily from stand still starts and quick accelerations from low speeds. This technological innovation resulted from extensive testing within the Scooter racing circuit. The clutch bell design is based on the following principals: greater heat transfer surface area (finned section) lowers the working temperature of the clutch bell which dramatically increases the systems durability. The clutch system is enormously…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
Clutch Bell with Reinforced Cooling Ring
The clutch bells with reinforced cooling ring consist of a finned annular reinforcement producing excellent heat dissipation caused primarily from stand still starts and quick accelerations from low speeds.
This technological innovation resulted from extensive testing within the Scooter racing circuit.
The clutch bell design is based on the following principals:
greater heat transfer surface area (finned section) lowers the working temperature of the clutch bell which dramatically increases the systems durability.
The clutch system is enormously stressed in city street riding, starts uphill and tight turn exits with a passenger.
That is why Malossi has fine tuned the Maxi Wing Clutch Bell to protect your clutch.
We must not discard the fact that the finned reinforcement ring is also a safeguard against failure. It has been designed to resist the elevated centrifugal forces due to large rotational speeds generated by high performance engines. Keep in mind that centrifugal force increases by the square of the rotational speed.
Technical Specifications
- Bell housing made of ductile steel and deep drawn.
- Spline hub made of special steel, machined, welded and broached.
- Frictional working surface machined to tight tolerances.
- Dynamically balanced.
- Nitride surface hardened.
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Documents and videos
Vehicle compatibility (31 vehicles)
Aprilia(6)
- ATLANTIC SPRINT - Arrecife 400 4T LC (PIAGGIO M348M)
- ATLANTIC SPRINT - Arrecife 500 4T LC (PIAGGIO M273M)
- SCARABEO 400 ie 4T LC 2007→
- SCARABEO 500 4T LC
- SCARABEO Light 400 ie 4T LC 2007→
- SCARABEO Light 500 ie 4T LC 2007→ (M343M)
BMW(4)
- C 400 X 400 ie 4T LC euro 4 2019→2020
- C 400 X 400 ie 4T LC euro 5 2021→
- C GT 400 ie 4T LC euro 4 2019→2020
- C GT 400 ie 4T LC euro 5 2021→
Gilera(2)
- FUOCO 500 ie 4T LC euro 3
- NEXUS 500 ie 4T LC euro 2-3
Malaguti(1)
- SPIDERMAX GT 500 4T LC (PIAGGIO M341M)
PGO(1)
- BUG RACER 500 4T LC (PIAGGIO)
Peugeot(3)
- GEOPOLIS 400 4T LC euro 3
- SATELIS 400 4T LC euro 3 ←2014 (PIAGGIO)
- SATELIS 500 4T LC euro 3
Piaggio(14)
- BEVERLY 400 ie 4T LC euro 3 (M345M)
- BEVERLY 500 ie 4T LC euro 2-3
- BEVERLY CRUISER 500 ie 4T LC euro 3
- BEVERLY TOURER 400 ie 4T LC euro 3 (M345M)
- MP3 400 ie 4T LC euro 3 (MASTER M474M)
- MP3 500 ie 4T LC euro 3
- MP3 500 ie 4T LC euro 4 2017→
- MP3 HPE Business ABS ASR 500 ie 4T LC euro 4 2020→
- MP3 HPE Sport ABS ASR 500 ie 4T LC euro 4 2020→
- MP3 HPE Sport Advanced 500 ie 4T LC euro 4 2020→
- X10 500 ie 4T LC euro 3
- X8 400 ie 4T LC euro 3 (M521M)
- X9 Evolution - Street 500 4T LC
- XEvo 400 ie 4T LC euro 3 (M521M)
7718431
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Aprilia
BMW
Gilera
Malaguti
PGO
Peugeot
Piaggio - Vehicle
- Aprilia ATLANTIC SPRINT - Arrecife 400 4T LC (PIAGGIO M348M)
Aprilia ATLANTIC SPRINT - Arrecife 500 4T LC (PIAGGIO M273M)
Aprilia SCARABEO 400 ie 4T LC 2007→
Aprilia SCARABEO 500 4T LC
Aprilia SCARABEO Light 400 ie 4T LC 2007→
Aprilia SCARABEO Light 500 ie 4T LC 2007→ (M343M)
BMW C 400 X 400 ie 4T LC euro 4 2019→2020
BMW C 400 X 400 ie 4T LC euro 5 2021→
BMW C GT 400 ie 4T LC euro 4 2019→2020
BMW C GT 400 ie 4T LC euro 5 2021→
Gilera FUOCO 500 ie 4T LC euro 3
Gilera NEXUS 500 ie 4T LC euro 2-3
Malaguti SPIDERMAX GT 500 4T LC (PIAGGIO M341M)
PGO BUG RACER 500 4T LC (PIAGGIO)
Peugeot GEOPOLIS 400 4T LC euro 3
Peugeot SATELIS 400 4T LC euro 3 ←2014 (PIAGGIO)
Peugeot SATELIS 500 4T LC euro 3
Piaggio BEVERLY 400 ie 4T LC euro 3 (M345M)
Piaggio BEVERLY 500 ie 4T LC euro 2-3
Piaggio BEVERLY CRUISER 500 ie 4T LC euro 3
Piaggio BEVERLY TOURER 400 ie 4T LC euro 3 (M345M)
Piaggio MP3 400 ie 4T LC euro 3 (MASTER M474M)
Piaggio MP3 500 ie 4T LC euro 3
Piaggio MP3 500 ie 4T LC euro 4 2017→
Piaggio MP3 HPE Business ABS ASR 500 ie 4T LC euro 4 2020→
Piaggio MP3 HPE Sport ABS ASR 500 ie 4T LC euro 4 2020→
Piaggio MP3 HPE Sport Advanced 500 ie 4T LC euro 4 2020→
Piaggio X8 400 ie 4T LC euro 3 (M521M)
Piaggio X9 Evolution - Street 500 4T LC
Piaggio X10 500 ie 4T LC euro 3
Piaggio XEvo 400 ie 4T LC euro 3 (M521M)
