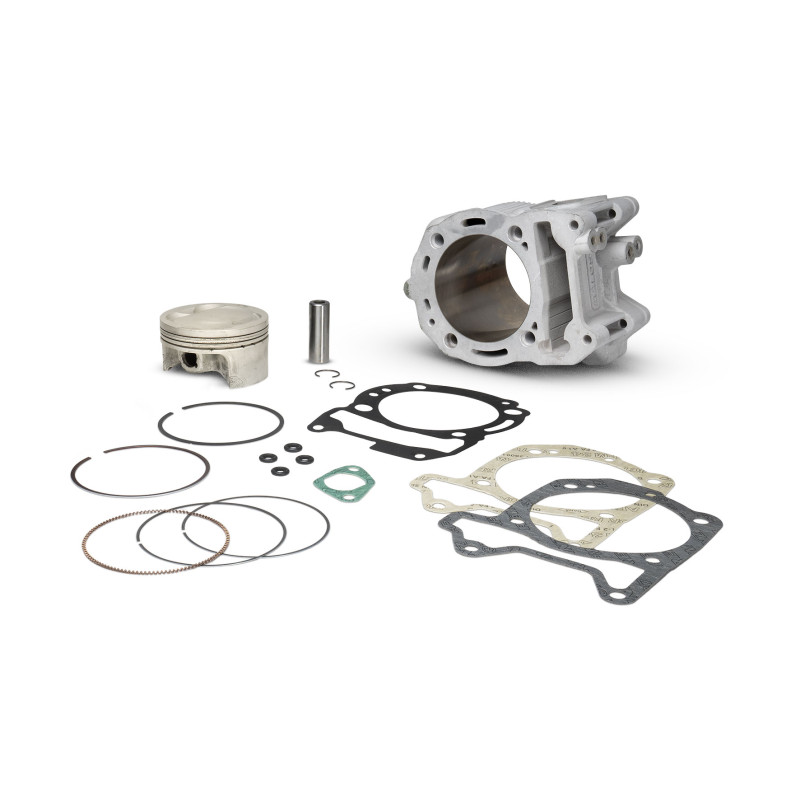

MALOSSI - ALUM-COMPL.CYL. Ø 75,5 pin Ø 15 H2O 4-stroke
3113924
€355.35
€302.05
Save 15%
Handling 4-5 days
COMPLETE CYLINDER 4-STROKE TECHNICAL FEATURES Cylinder Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
COMPLETE CYLINDER 4-STROKE
TECHNICAL FEATURES
Cylinder
- Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances.
- Machining: on machine tools with high precision numerical control.
- Cylinder-piston connection with an allowance of 0.05 mm.
- Recalculated and upgraded heat exchange surfaces.
Piston
- Ultra compact with 3 rings.
- Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.
- Machining on machine tools with numerical control.
- Lightened and reinforced.
- Upgraded heat exchange surfaces.
Piston rings
- Compression - special rings with high sliding ease and very high mechanical resistance, in chromium-plated S10 spheroidal cast-iron.
- 1st scraper - ring in chromium-plated S10 spheroidal cast iron.
- 2nd three - piece scraper ring made of chromium-plated steel alloy.
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Documents and videos
Vehicle compatibility (24 vehicles)
Aprilia(4)
- ATLANTIC - Arrecife 250 4T LC (PIAGGIO M237M)
- SCARABEO 250 4T LC (PIAGGIO M285M)
- SCARABEO Light 250 ie 4T LC 2007→
- SPORTCITY 250 ie 4T LC euro 3 (PIAGGIO M288M)
Benelli(1)
- ADIVA AD 250 4T LC euro 2
Derbi(2)
- GP1 250 4T LC euro 2-3
- RAMBLA 250 ie 4T LC euro 3
Gilera(1)
- NEXUS 250 ie 4T LC euro 3
Malaguti(3)
- MADISON 3 250 4T LC (PIAGGIO)
- MADISON RS 250 4T LC (PIAGGIO M237M)
- PHANTOM MAX 250 4T LC (PIAGGIO M361M)
Peugeot(2)
- GEOPOLIS 250 ie 4T LC euro 3
- SATELIS 250 4T LC euro 3
Piaggio(9)
- BEVERLY 250 4T LC euro 1-2 (M285M)
- BEVERLY 250 ie 4T LC euro 3
- BEVERLY S 250 ie 4T LC euro 3
- MP3 250 ie 4T LC euro 3 (QUASAR M472M)
- X7 250 ie 4T LC euro 3 (QUASAR M622M)
- X8 250 4T LC euro 2
- X8 250 ie 4T LC euro 3 (QUASAR)
- X9 Evolution 250 4T LC (M237M)
- XEvo 250 ie 4T LC euro 3 (QUASAR)
Vespa(2)
- GTS 250 ie 4T LC
- GTV 250 ie 4T LC
3113924
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Aprilia
Benelli
Derbi
Gilera
Malaguti
Peugeot
Piaggio
Vespa - Vehicle
- Aprilia ATLANTIC - Arrecife 250 4T LC (PIAGGIO M237M)
Aprilia SCARABEO 250 4T LC (PIAGGIO M285M)
Aprilia SCARABEO Light 250 ie 4T LC 2007→
Aprilia SPORTCITY 250 ie 4T LC euro 3 (PIAGGIO M288M)
Benelli ADIVA AD 250 4T LC euro 2
Derbi GP1 250 4T LC euro 2-3
Derbi RAMBLA 250 ie 4T LC euro 3
Gilera NEXUS 250 ie 4T LC euro 3
Malaguti MADISON 3 250 4T LC (PIAGGIO)
Malaguti MADISON RS 250 4T LC (PIAGGIO M237M)
Malaguti PHANTOM MAX 250 4T LC (PIAGGIO M361M)
Peugeot GEOPOLIS 250 ie 4T LC euro 3
Peugeot SATELIS 250 4T LC euro 3
Piaggio BEVERLY 250 4T LC euro 1-2 (M285M)
Piaggio BEVERLY 250 ie 4T LC euro 3
Piaggio BEVERLY S 250 ie 4T LC euro 3
Piaggio MP3 250 ie 4T LC euro 3 (QUASAR M472M)
Piaggio X7 250 ie 4T LC euro 3 (QUASAR M622M)
Piaggio X8 250 4T LC euro 2
Piaggio X8 250 ie 4T LC euro 3 (QUASAR)
Piaggio X9 Evolution 250 4T LC (M237M)
Piaggio XEvo 250 ie 4T LC euro 3 (QUASAR)
Vespa GTS 250 ie 4T LC
Vespa GTV 250 ie 4T LC
