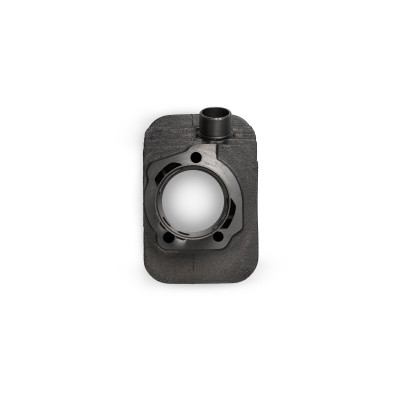

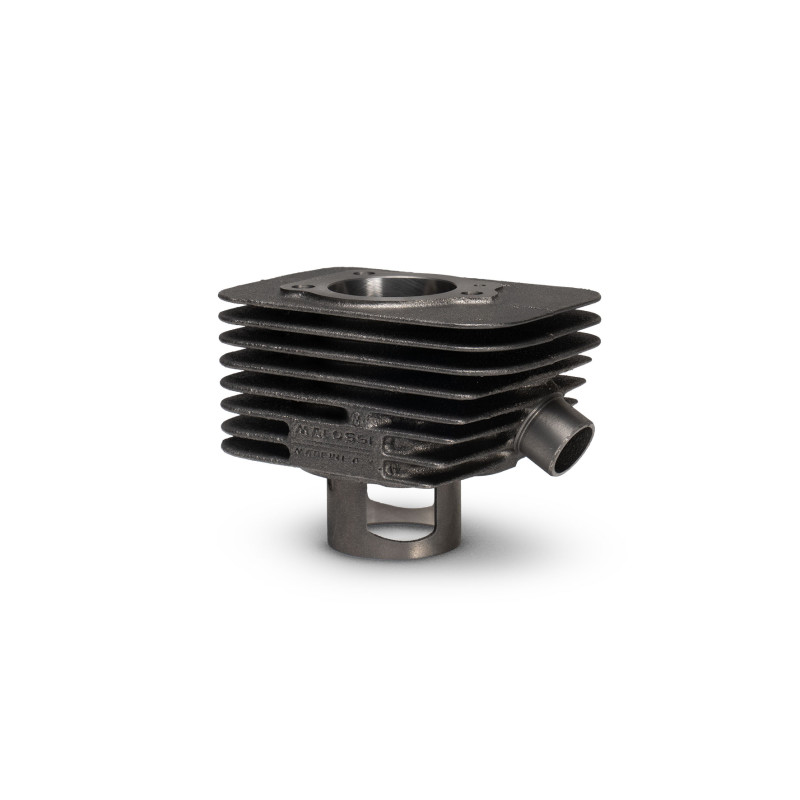

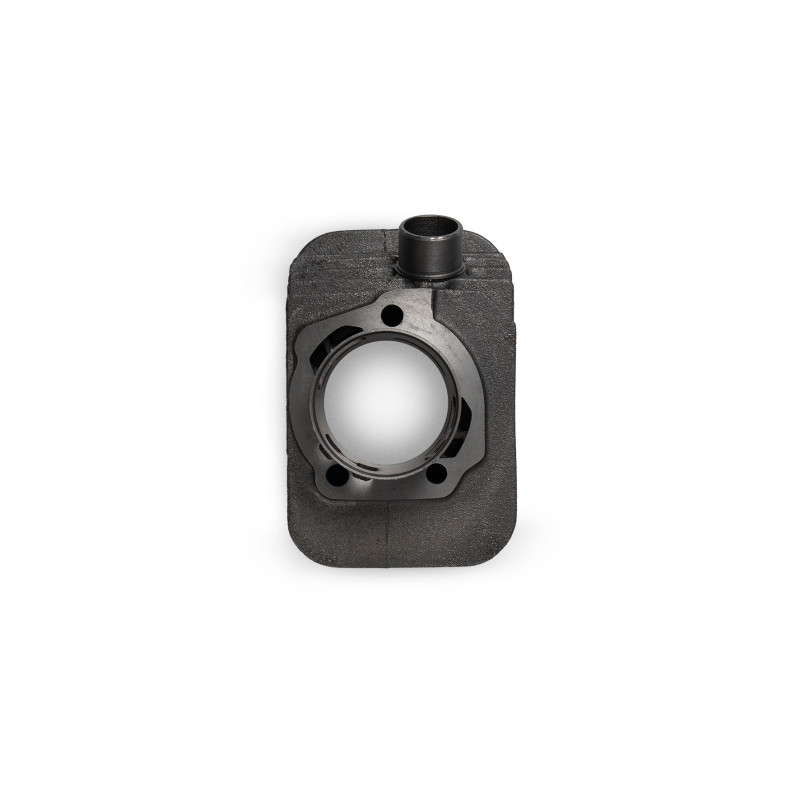

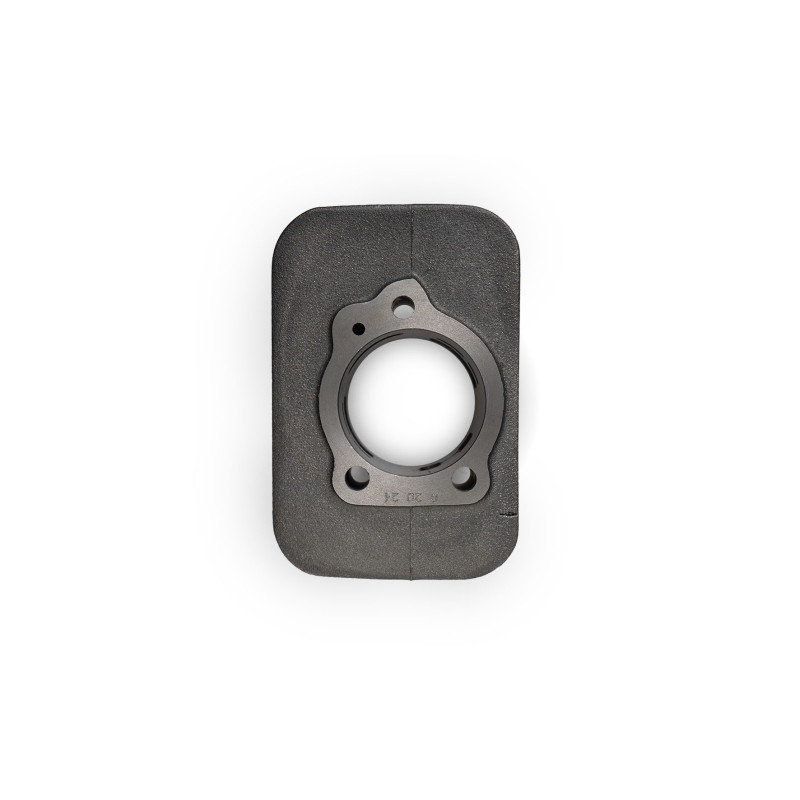

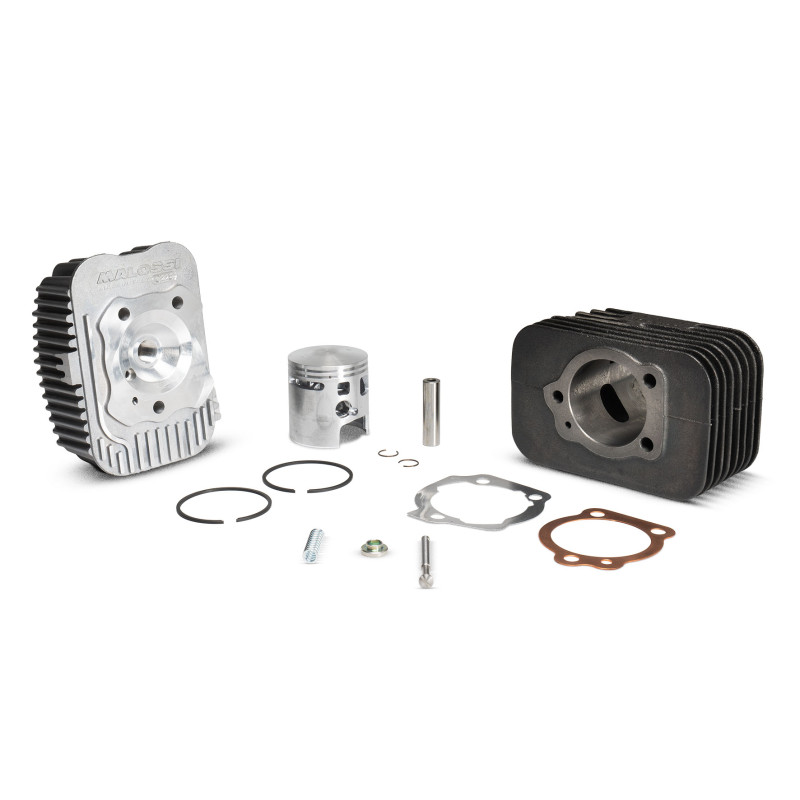

MALOSSI - CAST-I-CYLINDER KIT Ø 46,5 pin Ø 10
3118734
€198.68
€168.88
Save 15%
Handling 4-5 days
PIAGGIO CAST-I-CYLINDERS KIT Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
PIAGGIO CAST-I-CYLINDERS KIT
Fun without complications
(6 transfer ports – 2 ring piston)
Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type.
For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained within a range of 20 microns maximum of tolerance.
The cylinder kit provides an increase in performance in terms of power and torque due to its new cast iron cylinder. The technical aspects of the bore and the exhaust fitting have been kept the same, but its complete redesign has led to the complete replacement of the port mapping, which now allows optimal coupling not only with our crankcases, but even with the original ones. Assembly of the cylinder kit on original crankcases requires only the boring of the cylinder liner hole.
Comparisons to previous version: the exhaust has been redesigned both in terms of its reprofiled and resized geometries and its timing, which is tuned to intake times. The intake ports are perfectly symmetrical at the cylinder inlet and the flow path has a completely different orientation of the fresh gases at the entrance to the chamber. The rear transfer ports are the true revolutionary addition that have been redesigned using ‘low profile chamber’ technology with an improved tilt and, more importantly, a calculated continuity of flow-through areas. The union of the two rear inlets, with the classic “H” shape, allows optimisation of the pumping work, transferring as much energy as possible with minimal flow losses. These innovations result in greater uniformity in scavenging between the left and right sides, which leads to improved combustion and, consequently, an immense increase in the performance characteristics of two-stroke engines.
What's the result?
An unparalleled increase in performance, which puts our cylinders at the top of the range of cast iron cylinders on the market today!
| Use | Urban/Sport |
| Power range Ø 46.5 | 8-10 cv @8.500 rpm |
| Suitable tuning set-up
| Original or homologated exhaust  |
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Documents and videos
Vehicle compatibility (8 vehicles)
Italjet(1)
- PACK 50 2T
Piaggio(7)
- BOSS 50 2T
- BOXER 50 2T
- BRAVO 50 2T
- CIAO 50 2T
- CIAO PX 50 2T
- GRILLO 50 2T
- SI 50 2T
3118734
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Italjet
Piaggio - Vehicle
- Italjet PACK 50 2T
Piaggio BOSS 50 2T
Piaggio BOXER 50 2T
Piaggio BRAVO 50 2T
Piaggio CIAO 50 2T
Piaggio CIAO PX 50 2T
Piaggio GRILLO 50 2T
Piaggio SI 50 2T
Components and spare parts
Availability: 3 In Stock
16 other products in the same category:
Availability: 3 In Stock

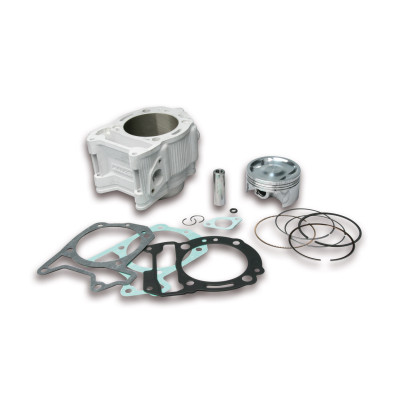

TECHNICAL SPECIFICATIONS Cylinder Bore Ø 75.5 mm; Stroke 63 mm; Displacement 282; Compression ratio 12.5:1. Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high…
Availability: 3 In Stock
Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…
Availability: 1 In Stock
Availability: 3 In Stock
Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…
Availability: 3 In Stock
Technical data Material: alluminium Cooling: liquid Bore: 45,5 mm Stroke: 39,1 mm Capacity 65 Compression ratio: 13,4:1 Timing system: 6 ports
Availability: 1 In Stock

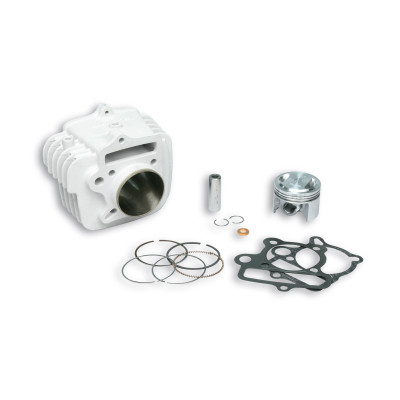

CYLINDERS PIT BIKE (Ducar - Lifan - Jialing 110 - 125 - 140 cc engines) TECHNICAL FEATURES Cylinder - Material: Aluminium alloy with high content of silicon, hardened and tempered, silicon carbide and galvanised nickel coated cylinder sleeves, diamond honed surface finished with a double criss-cross pattern while maintaining extremely tight tolerances. - High precision numerical controlled machining. - Cylinder-Piston matched sets within 0.05 mm. - Heat exchange surfaces redesigned and increased. Piston - Ultra compact with 3 piston rings. - Material: Special aluminium-silicon alloy with low…
