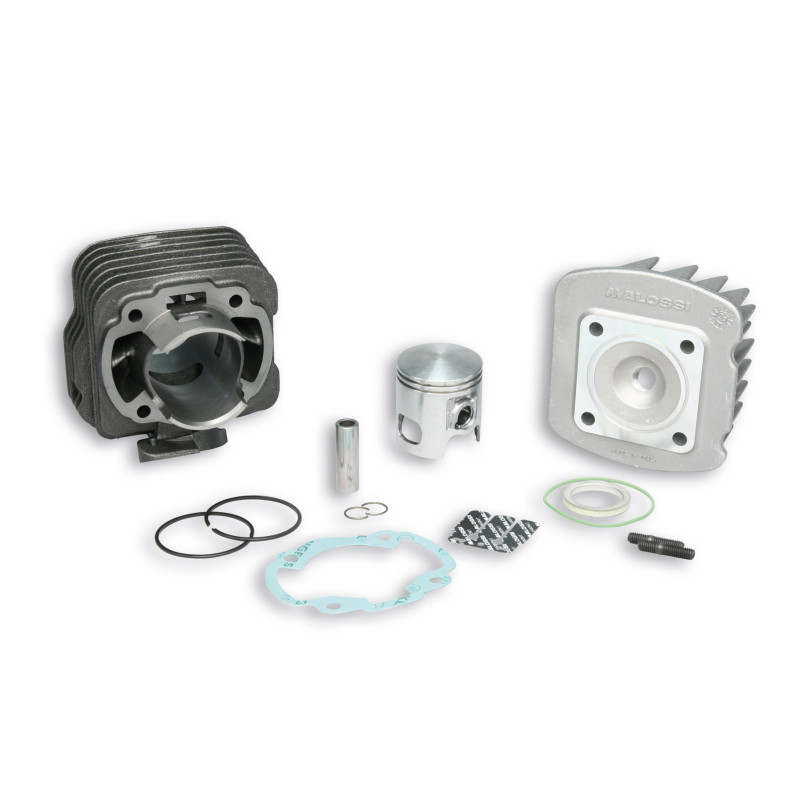

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

The most powerful cylinder kit ever produced by Malossi: over 32 HP at 14,000 RPM. With its large displacement, this kit is exclusively for liquid-cooled motorcycles. Specifically designed for top-level racing, it features the latest evolution of Malossi’s iconic 7-port technology. The standout feature is the support provided to the main rear transfer ports through the use of two ports opposite the exhaust. The cylinder has a close deck structure paired with a redesigned modular head. The head is designed to enter the cylinder’s combustion chamber, safeguarding the nickel coating in case of…

Technical data Material: alluminium Cooling: air Bore: 39 mm Stroke: 41,8 mm Capacity 49,9 Compression ratio: 12.5:1 Timing system : 6 ports

CYLINDERS PIT BIKE (Ducar - Lifan - Jialing 110 - 125 - 140 cc engines) TECHNICAL FEATURES Cylinder - Material: Aluminium alloy with high content of silicon, hardened and tempered, silicon carbide and galvanised nickel coated cylinder sleeves, diamond honed surface finished with a double criss-cross pattern while maintaining extremely tight tolerances. - High precision numerical controlled machining. - Cylinder-Piston matched sets within 0.05 mm. - Heat exchange surfaces redesigned and increased. Piston - Ultra compact with 3 piston rings. - Material: Special aluminium-silicon alloy with low…

Technical data Material: cast iron Cooling: liquid Bore: 57.5 mm Stroke: 42 mm Capacity 110 Compression ratio: 13.5:1 Timing system : 6 transferts

COMPLETE CYLINDER 4-STROKE TECHNICAL FEATURES Cylinder Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing…

TECHNICAL FEATURES Cylinder Bore : Ø 44 mm Stroke : 43.6 mm Displacement : 66.3 cc Compression ratio : 12.01 Material : primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances Machining: on machine tools with high precision numerical control Cylinder-piston connection with an allowance of 0.05 mm Recalculated and upgraded heat exchange surfaces Piston Ultra compact with 3 rings Material : special aluminium alloy with high…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

Force Master is renewed! Besides its improved fuel curves, efforts from Malossi's technical staff resulted with a rev limiter increase of 1,000/1,500 RPM depending on the vehicle, making Force Master 2 an even higher performing ECU! Force Master 2 allows to change the injection in order to fit perfectly the new Malossi 4-stroke cylinder kit. This CDI has been scheduled with 4 different maps so as to be coupled perfectly with your vehicle whatever its setting is! TECHNICAL FEATURES Cylinder Bore: Ø 63 mm Stroke: 58.6 mm Displacement: 182.58 cc Compression ratio: 10.6:1. Material: primary…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

Technical features Cylinder Bore: Ø 63 mm Stroke: 58.7 mm Displacement: 183 cc Compression ratio: 11.27 Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high silicon…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…
