Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

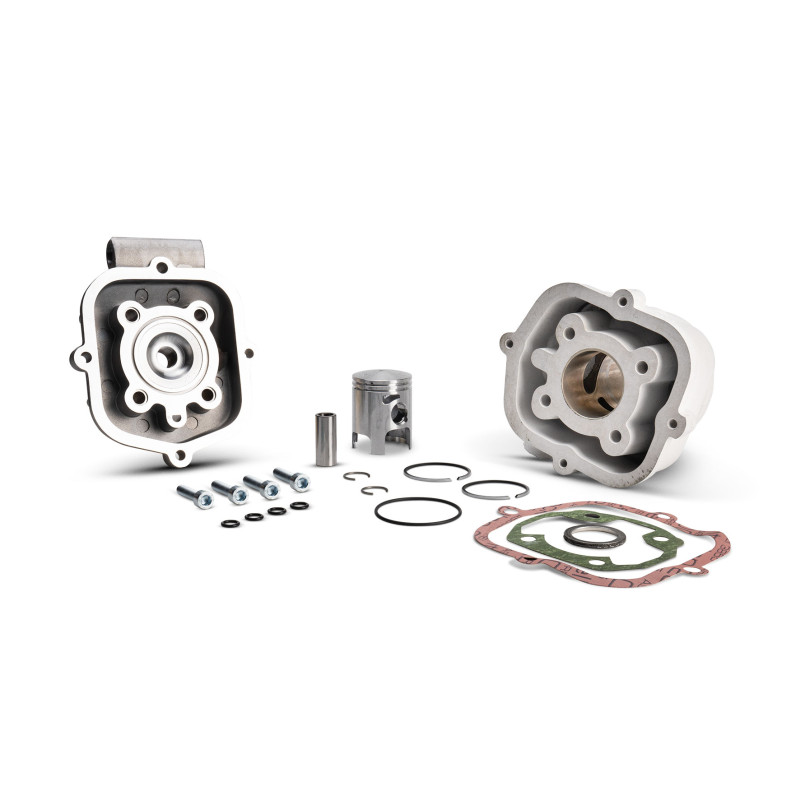

ALUMINIUM CYLINDER Cylinders obtained by gravity die-casting in permanent steel moulds. Material: hardened and tempered high silicon content primary aluminium alloy. Machining: on numerically controlled high precision machine tools. Cylinder liner with silicon carbide metal-spray coating on a galvanic nickel matrix, cross-honed with passes with diamonds for very tight tolerances. Heat exchange surfaces recalculated. Exhaust and transfer ports designed and tested for maximum thermodynamic performance. Rings in very strong nodular cast iron with ground, wear-resistant, hard chrome metal-spray…

Super T-Max Twin Cylinder 4-Stroke 560 cc Malossi is proud to offer "Super T-Max", a completely new gamma of products for the most popular Yamaha Maxi-Scooter and like always "Made In Italy"! Techincal features Bore: Ø 70 mm Stroke: 73 mm Displacement: 560 cc Compression Ratio: 1:12 Max. HP @ 7800 RPM Twin Cylinder Single Block: Special Al-Si-Cu alloy, hardened and stress relieved. Cylinder liners: Cermetal (Ni-Ca-Sil) coated and machined with extreme precision in our state of the art work cells. Cross-honed at 110°/130°. Ø 70 forged pistons, pin 16 with 3 piston rings: special Al-Si-Cu…

COMPLETE CYLINDER 4-STROKE TECHNICAL FEATURES Cylinder Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing…

MHR REPLICA CYLINDER KIT The MHR Replica line of cylinder was created especially for the International Scooter Trophy - 70cc Automatic Class. These cylinder kits were designed to guarantee maximum performance in this category, while at the same time assuring extremely long product life. In order to guarantee these special characteristics, Malossi MHR Replica cylinder kit have pistons with two chrome-plated rectangular segmants and a compression ratio of 13.8:1, plus torque value of 7.35 N.m. (o.75 Kgm) at 8.000 rpm and power of 6.6 Kw (9 C.V.) at 8.500 rpm. The MHR line is the results of…

BIG DEPS 4 MHR Ø 47 Cylinder kit The cylinder draws its peculiar characteristics from the BIG DEPS range: the same aluminium alloy, barrel with nickel-chromium coating, the same redesigned central core and identical ring washing strategy. The support surface in the front part of the cylinder continues to be worked with high precision diamond tools and has 4 holes for fixing of the exhaust flange. The result has translated into a further and significant increase in performance! Finally, the most reliable and safe strategy of coupling and centring between cylinder and head has also been applied…

Testa Rossa Flanged Mount 70 cc Maximum performance, flanged design, only for liquid-cooled scooters (7 ports and exhaust crossbar - piston with 1 segment - modular head - required use of C-One Malossi case - engine shaft with connecting rod different from the original). Testa Rossa Flanged Mount 94 cc The most powerful cylinder ever to be produced by Malossi. High capacity, flanged design, only for liquid-cooled scooters (7 ports and exhaust crossbar - piston with 1 segment - modular head - required use of RC-One Malossi case - engine shaft with connecting rod different from the original).…

Technical features Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures. Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C. Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity). Inner surface coating: effected using silicon carbide on a…

VESPA NEVER DIES Aluminium cylinder kit Ø 68,5 Afurther upgrade for the timeless Ø 68.5 cylinder kit! 1983 The aluminium cylinder with 68,5 mm diameter - turning point in Vespa tuning - was born. Made of Nicasil aluminium, with super light piston and 1.2 mm semi trapezoidal rings, it becomes a legend, a real musthave for all Vespa fans. 2008 The cylinder is updated, by adding the head with hemispherical combustion chamber and central spark plug. 2013 The cylinder, always made of Nicasil aluminium, has been completely changed concerning both main and rear ports and exhaust port as well.…

Technical data Material: cast iron Cooling: air Bore: 50 mm Stroke: 37,8 mm Capacity 74 Compression ratio: 11:01 Timing system: 4 ports

Ø 47 BIG DEPS 4 MHR Universal cylinder kit for mopeds The cylinder kit Ø 47 BIG DEPS 4 MHR combines the best aspects of the BIG DEPS with absolutely innovative and unique features. Designed for all the Ciao, Si, Bravo, Boss and Grillo mopeds, it is at the top of the range of the already extensive family of tuning kits for Mopeds. The drilling, unlike the other components in the range, involves fixing the cylinder exclusively to the Malossi MP-One casing by means of 4 studs thanks to which, in addition to distributing the forces during operation in a much more efficient manner, our technicians…

CYLINDERS PIT BIKE (Ducar - Lifan - Jialing 110 - 125 - 140 cc engines) TECHNICAL FEATURES Cylinder - Material: Aluminium alloy with high content of silicon, hardened and tempered, silicon carbide and galvanised nickel coated cylinder sleeves, diamond honed surface finished with a double criss-cross pattern while maintaining extremely tight tolerances. - High precision numerical controlled machining. - Cylinder-Piston matched sets within 0.05 mm. - Heat exchange surfaces redesigned and increased. Piston - Ultra compact with 3 piston rings. - Material: Special aluminium-silicon alloy with low…

Malossi, whose expertise in balancing a vast experience with the latest technology, embraced this new challenge: to bring to the racetrack a fuel injected two stroke engine. With the new INJECTION TECH range of products a new chapter is written, an answer, the racing world was anticipating, to satisfy the growing number of Malossi Trophy Races for 70cc scooters. Technical features Cast iron cylinder - Technology Material: special self-lubricating, wear-resistant, highly refined cast iron alloys, obtained by Shell Moulding gravity die-casting Machining: on numerically controlled high precision…
