ALUMINIUM Ø 65 CYLINDER KITS Malossi aluminium cylinder kit: the best balance between component performance and life of the component. The aluminium cylinder kit produced by Malossi s.p.A. is designed and manufactured with the specific objective of obtaining high combustion efficiency, long life, and a reliability that suits the Malossi name. Owing to the experience gained in the preparation of cylinder kits for race, Malossi engineers have developed the thermodynamics of aluminium cylinder kit to the fullest and designed the inner fuid mechanics of the cylinder kit with fanatical precision…

BIG DEPS 4 MHR Ø 47 Cylinder kit The cylinder draws its peculiar characteristics from the BIG DEPS range: the same aluminium alloy, barrel with nickel-chromium coating, the same redesigned central core and identical ring washing strategy. The support surface in the front part of the cylinder continues to be worked with high precision diamond tools and has 4 holes for fixing of the exhaust flange. The result has translated into a further and significant increase in performance! Finally, the most reliable and safe strategy of coupling and centring between cylinder and head has also been applied…

CYLINDER KIT MHR TECHNICAL FEATURES CYLINDER Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures. Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C. Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity). Inner surface coating: effected using…

BIG BORE Testa Rossa 94 cc The new generation BIG BORE engine! Stud bolts, only for liquid-cooled scooters (7 ports and exhaut crossbar - piston with 1 segment - modular head - required boring of original case or C-One Malossi case - engine shaft with connecting rod different from the original). Deriving directly from seven port technology, which animates the revolutionary Flanged Mount, BIG BORE Testa Rossa cylinders represent the latest success achieved thanks to the efforts and studies that Malossi has continued to devote to engines intended for original Piaggio and Yamaha cases and, with…

Technical features Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures. Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C. Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity). Inner surface coating: effected using silicon carbide on a…

Technical features Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures. Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C. Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity). Inner surface coating: effected using silicon carbide on a…

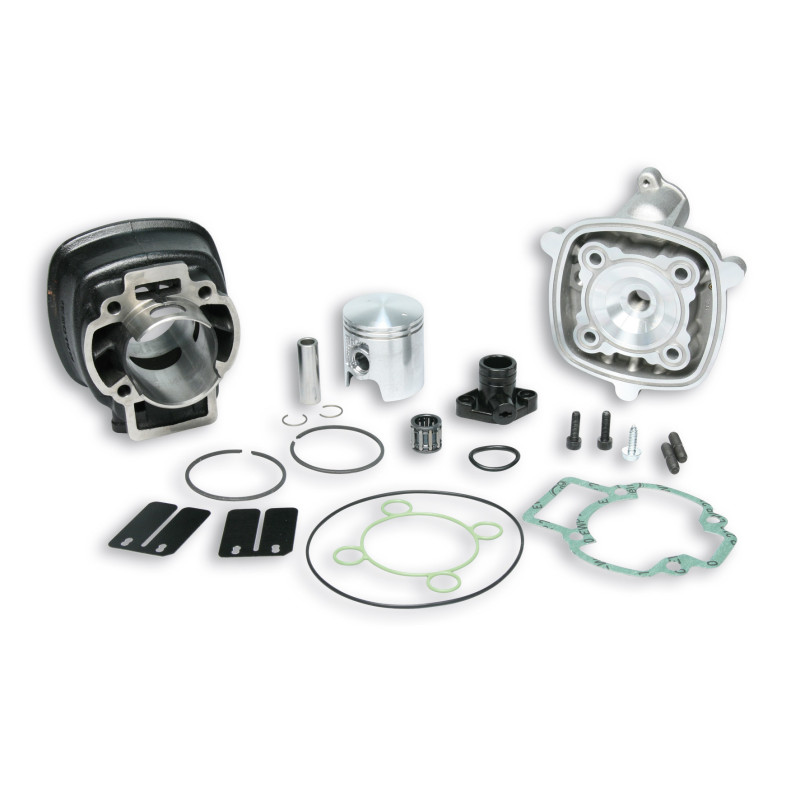

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

TECHNICAL SPECIFICATIONS Cylinder Bore Ø 75.5 mm; Stroke 63 mm; Displacement 282; Compression ratio 12.5:1. Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high…

The cylinder has a close deck structure paired with a redesigned modular head. With this cylinder, the engine benefits from reduced loads on the pistons and bearings , thereby extending its lifespan. Additionally, friction is significantly minimized, resulting in increased engine efficiency, along with a notable reduction in noise and vibrations . The exhaust system accompanying the 100 cc kit is the result of targeted engineering, designed to enhance performance and perfect the fluid dynamics of the new Malossi cylinder. Technical features Cooling: H2O Porting: 7 transfer ports Material:…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

The cylinder has a close deck structure paired with a redesigned modular head. The volumes and flows have been revolutionized , to unleash all the power this cylinder has to offer. No compromises: a carburetor between 30 and 34 mm is necessary. To ensure perfect synergy and maximize on-road performance, the 100cc kit should be paired with our crankshaft , which has been renewed with a 100 mm connecting rod . With this cylinder, the engine benefits from creduced loads on the pistons and bearings , thereby extending its lifespan. Additionally, friction is significantly minimized, resulting in…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

CYLINDER KIT Ø 63 ALUMINIUM completely new cylinder kit has been created, designed overall to obtain the maximum result in terms of performance and durability. Every aspect of the system has been studied to maximise the mechanical resistance, the fluid dynamics and improve combustion: the result is a top-of-the-range kit in terms of construction quality and technological development. TECHNICAL FEATURES Cylinder Built from scratch, in high-strength aluminium alloy and cylinder sleeve with nickel-chromium coating. Consisting of an even thickness central core around the cylinder sleeve and the…
