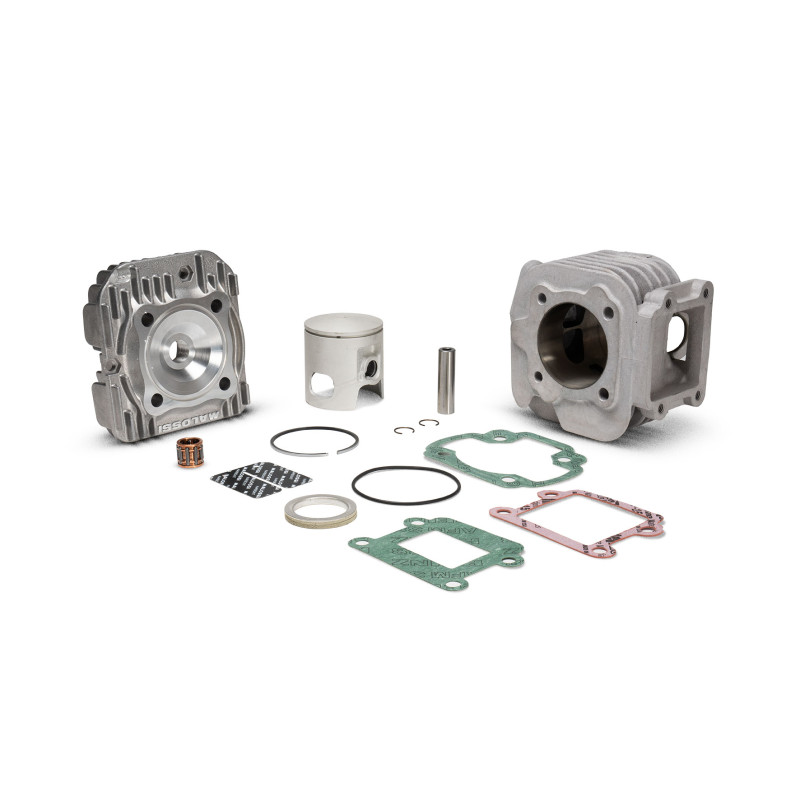

MALOSSI - ALUMIN-CYL. KIT Ø 47 pin Ø 10 MHR
    MALOSSI - ALUMIN-CYL. KIT Ø 47 pin Ø 10 MHR

MALOSSI - ALUMIN-CYL. KIT Ø 47 pin Ø 10 MHR

31 7559
€301.54
€256.31 Save 15%
Handling 4-5 days

CYLINDER KIT MHR TECHNICAL FEATURES CYLINDER Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures. Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C. Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity). Inner surface coating: effected using…

Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Quantity
Add to wishlist
In Stock

  Do you shop outside the EU?

click for Info!

  Specialized team

click here and write to us!

  Ask for info via WhatsApp!

Click HERE

  Found a lower price?

Write to us HERE

Many Secure Payment Methods, Credit Cards or PayPal

CYLINDER KIT MHR

TECHNICAL FEATURES

CYLINDER

  • Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures.
  • Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C.
  • Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity).
  • Inner surface coating: effected using silicon carbide on a nickel matrix with heat treatment that guarantees extreme hardness (around 600 HVO, 1/5) and excellent resistance to wear.
  • Internal machining of cylinder: using special machines that allow a degree of finish on the cylinder barrel walls whose roughness corresponds with the angles set at the design stage (grinding process using special stone).
  • Port and exhaust diagrams: designed and manufactured especially for racing. The definition of the port and exhaust diagrams has requested considerable effort on the part of our engineers both on engine test stands and the circuits on which the trophy is held.

PISTON

  • Material: special aluminium alloy with a very high percentage of silicon and titanium that guarantees both excellent heat resistance and strain strength upon temperature variation.
  • External coating: graphite coating that guarantees a very low friction coefficient
  • Structure: reinforced in order to offer resistance to the stress suffered by cylinder units used for top-level competition, but at the same time light enough to reduce inertial force.
  • Ring: 1 mm nodular-cast-iron single ring with rectangular cross section and hard-chromium coating on outer surface.

PISTON RINGS

  • Rings in very strong modular cast iron with ground, wear-resistant, hard chrome metal-spray coating on the contact surface.

HEAD

  • Material: special alluminium alloy with a very high heat exchange coefficient.
  • Geometry of heat exchange surfaces recalculated and increased.
  • Combustion chamber completely-designed to obtain a high compression ratio with a very high turbolece.
  • Machining: numerically controlled machines.

Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use

Vehicle compatibility (31 vehicles)

Aprilia(2)
  • AMICO 50 2T
  • SR 50 2T ←1993
Fantic(1)
  • BIG WHEEL 50 2T
Garelli(1)
  • PONY 50 2T
Italjet(3)
  • BAZOOKA 50 2T
  • PISTA 2 50 2T
  • SCOOP 50 2T
LEM(2)
  • FLASH 50
  • GHIBLI 50
MBK(12)
  • BOOSTER 50 2T euro 0-1
  • BOOSTER 50 2T euro 2 (A137E)
  • BOOSTER NAKED 50 2T euro 2 (A137E)
  • BOOSTER NG 50 2T euro 0-1
  • BOOSTER NG 50 2T euro 2 (A137E)
  • BOOSTER ROCKET 50 2T euro 0-1
  • BOOSTER ROCKET 50 2T euro 2 (A137E)
  • BOOSTER SPIRIT 50 2T euro 0-1
  • SORRISO 50 2T ←1995
  • STUNT 50 2T euro 0-1
  • STUNT 50 2T euro 2
  • TARGET 50 2T
Yamaha(10)
  • BW'S 50 2T euro 0-1
  • BW'S 50 2T euro 2 (A137E)
  • BW'S NG 50 2T euro 0-1
  • BW'S NG 50 2T euro 2 (A137E)
  • BW'S Original/Naked 50 2T euro 2 2010→ (A137E)
  • CRZ 50 2T
  • CT 50 2T
  • SLIDER 50 2T
  • SPY 50 2T
  • ZUMA 50 2T

Frequently asked questions

Faq

  • Looking at the barrel, I noticed strange marks on the exhaust sleeve. Is it normal for them to be there?

    This is a deliberate machining. As high temperatures are reached at this point with strong expansion, this machining was done to lower the point in order to avoid seizing.

31 7559

Data sheet

Country of origin
Italy
Vehicle brand
Aprilia
Fantic
Garelli
Italjet
LEM
MBK
Yamaha
Vehicle
Aprilia AMICO 50 2T
Aprilia SR 50 2T ←1993
Fantic BIG WHEEL 50 2T
Garelli PONY 50 2T
Italjet BAZOOKA 50 2T
Italjet PISTA 2 50 2T
Italjet SCOOP 50 2T
LEM FLASH 50
LEM GHIBLI 50
MBK BOOSTER 50 2T euro 0-1
MBK BOOSTER 50 2T euro 2 (A137E)
MBK BOOSTER NAKED 50 2T euro 2 (A137E)
MBK BOOSTER NG 50 2T euro 0-1
MBK BOOSTER NG 50 2T euro 2 (A137E)
MBK BOOSTER ROCKET 50 2T euro 0-1
MBK BOOSTER ROCKET 50 2T euro 2 (A137E)
MBK BOOSTER SPIRIT 50 2T euro 0-1
MBK SORRISO 50 2T ←1995
MBK STUNT 50 2T euro 0-1
MBK STUNT 50 2T euro 2
MBK TARGET 50 2T
Yamaha BW'S 50 2T euro 0-1
Yamaha BW'S 50 2T euro 2 (A137E)
Yamaha BW'S NG 50 2T euro 0-1
Yamaha BW'S NG 50 2T euro 2 (A137E)
Yamaha BW'S Original/Naked 50 2T euro 2 2010→ (A137E)
Yamaha CRZ 50 2T
Yamaha CT 50 2T
Yamaha SLIDER 50 2T
Yamaha SPY 50 2T
Yamaha ZUMA 50 2T
