The most powerful cylinder kit ever produced by Malossi: over 32 HP at 14,000 RPM. With its large displacement, this kit is exclusively for liquid-cooled motorcycles. Specifically designed for top-level racing, it features the latest evolution of Malossi’s iconic 7-port technology. The standout feature is the support provided to the main rear transfer ports through the use of two ports opposite the exhaust. The cylinder has a close deck structure paired with a redesigned modular head. The head is designed to enter the cylinder’s combustion chamber, safeguarding the nickel coating in case of…

Made of the same high-strength aluminium alloy as our racing cylinders and nickel-chrome coating. The central core profile has been revamped around the ports to increase the heat exchange surface and improve the air cooling flow, allowing the fresh air to enter the combustion chamber at optimal temperature and pressure conditions, thus improving the volumetric efficiency of the engine. There is a support surface in the front part of the cylinder that has been machined and finished with high-precision tools, with four threaded holes required to connect it to the pipe assembly. The most…

BIG DEPS 4 MHR Ø 47 Cylinder kit The cylinder draws its peculiar characteristics from the BIG DEPS range: the same aluminium alloy, barrel with nickel-chromium coating, the same redesigned central core and identical ring washing strategy. The support surface in the front part of the cylinder continues to be worked with high precision diamond tools and has 4 holes for fixing of the exhaust flange. The result has translated into a further and significant increase in performance! Finally, the most reliable and safe strategy of coupling and centring between cylinder and head has also been applied…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

Technical features Built from scratch, in high-strength aluminium alloy and cylinder sleeve with nickel-chromium coating. Consisting of an even thickness central core around the cylinder sleeve and the ports, a constant heat exchange is ensured, therefore, a controlled intake temperature of the gases in the chamber and an optimal heat exchange at the exhaust. It has aerodynamically profiled cooling fins around the core, designed to be penetrated with the best possible efficiency by the cooling air. The major innovation lies in the totally revamped and coated ports, introducing the latest CVF,…

Technical features Cylinder 125 cc: Bore: Ø 67 mm Stroke: 47 mm Displacement: 166 200 cc: Bore: Ø 67 mm Stroke: 58 mm Displacement: 200 Compression ratio: 12:1 Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3…

Force Master is the innovative CDI which allows to change the injection in order to fit perfectly the Malossi 4-stroke cylinder kit. This CDI has been scheduled with different maps so as to be coupled perfectly with your vehicle whatever its setting is! Complete cylinder I-TECH 4 STROKE Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control.…

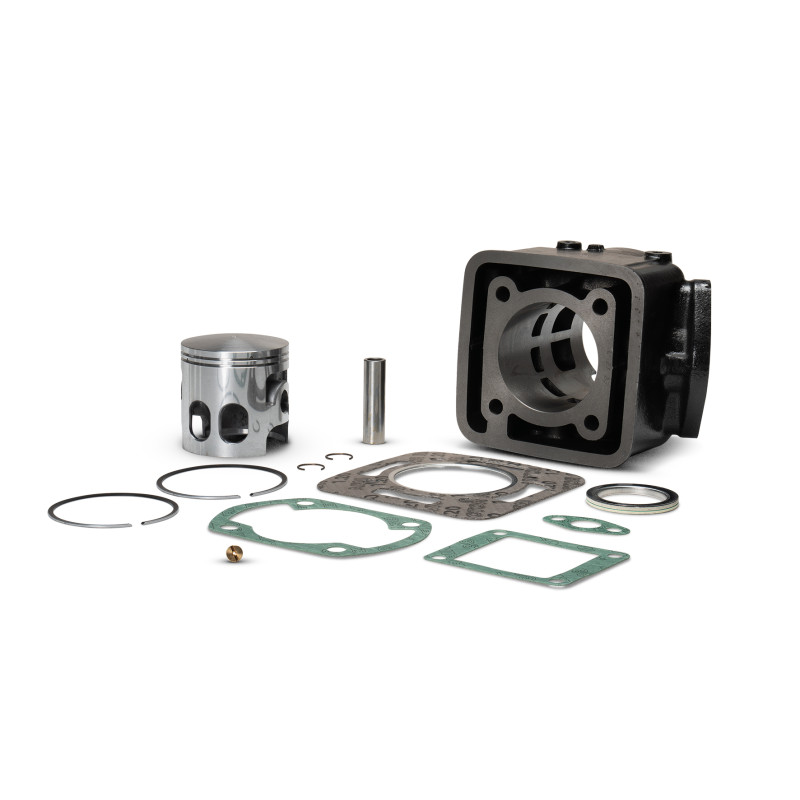

Cylinder Material: special self-lubricating, wear-resistant, highly refined cast iron alloys, obtained by Shell Moulding gravity die-casting. Machining: on numerically controlled high precision machine tools. Recalculated and increased heat exchange surfaces. Exhaust and transfer ports designed and tuned for maximum thermodynamic performance. Dimensional and surface finish quality control performed according to Malossi's internal specifications. Cylinder and piston selected for a 100% fit of 0.010-0.005 mm. Checking of all the seals carried out. Piston Material: special aluminium alloy with…

Complete cylinder with CDI FORCE MASTER 2 I-TECH 4-stroke These absolutely reliable high performance oversized cylinders are designed and manufactured with CadCam system at Malossi premises in Calderara di Reno (Bologna), using known and proven calculations and technologies to redefine the new thermo-fluid dynamic cycle and the cooling system, as well as structural calculations. These cylinders resulted to be exceptional for their amazing acceleration performance. During the development process original cdis alone proved not to be sufficient to provide an adequate fuel supply to the engine.…

Malossi, whose expertise in balancing a vast experience with the latest technology, embraced this new challenge: to bring to the racetrack a fuel injected two stroke engine. With the new INJECTION TECH range of products a new chapter is written, an answer, the racing world was anticipating, to satisfy the growing number of Malossi Trophy Races for 70cc scooters. Technical features Cast iron cylinder - Technology Material: special self-lubricating, wear-resistant, highly refined cast iron alloys, obtained by Shell Moulding gravity die-casting Machining: on numerically controlled high precision…
