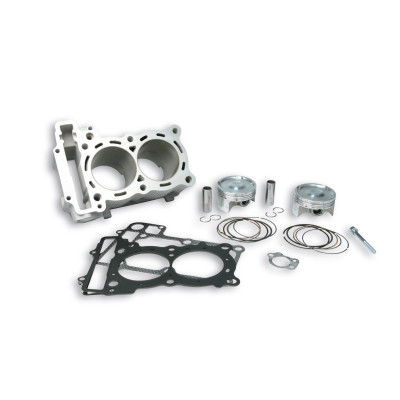

Super T-Max Twin Cylinder 4-Stroke 560 cc Malossi is proud to offer "Super T-Max", a completely new gamma of products for the most popular Yamaha Maxi-Scooter and like always "Made In Italy"! Techincal features Bore: Ø 70 mm Stroke: 73 mm Displacement: 560 cc Compression Ratio: 1:12 Max. HP @ 7800 RPM Twin Cylinder Single Block: Special Al-Si-Cu alloy, hardened and stress relieved. Cylinder liners: Cermetal (Ni-Ca-Sil) coated and machined with extreme precision in our state of the art work cells. Cross-honed at 110°/130°. Ø 70 forged pistons, pin 16 with 3 piston rings: special Al-Si-Cu…

MHR REPLICA CYLINDER KIT The MHR Replica line of cylinder was created especially for the International Scooter Trophy - 70cc Automatic Class. These cylinder kits were designed to guarantee maximum performance in this category, while at the same time assuring extremely long product life. In order to guarantee these special characteristics, Malossi MHR Replica cylinder kit have pistons with two chrome-plated rectangular segmants and a compression ratio of 13.8:1, plus torque value of 7.35 N.m. (o.75 Kgm) at 8.000 rpm and power of 6.6 Kw (9 C.V.) at 8.500 rpm. The MHR line is the results of…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

Force Master is the innovative CDI which allows to change the injection in order to fit perfectly the Malossi 4-stroke cylinder kit. This CDI has been scheduled with different maps so as to be coupled perfectly with your vehicle whatever its setting is! Complete cylinder I-TECH 4 STROKE Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control.…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

The cylinder has a close deck structure paired with a redesigned modular head. With this cylinder, the engine benefits from reduced loads on the pistons and bearings , thereby extending its lifespan. Additionally, friction is significantly minimized, resulting in increased engine efficiency, along with a notable reduction in noise and vibrations . The exhaust system accompanying the 100 cc kit is the result of targeted engineering, designed to enhance performance and perfect the fluid dynamics of the new Malossi cylinder. Technical features Cooling: H2O Porting: 7 transfer ports Material:…

Technical features Cylinder Bore: Ø 63 mm Stroke: 58.6 mm Displacement: 182.58 cc Compression ratio: 10.6:1 Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances Machining: on machine tools with high precision numerical control Cylinder-piston connection with an allowance of 0.05 mm Recalculated and upgraded heat exchange surfaces Piston Ultra compact with 3 rings Material: special aluminium alloy with high silicon…

Technical data Material: alluminium Cooling: liquid Bore: 47 mm Stroke: 37,8 mm Capacity 65 Compression ratio: 13:01 Timing system: 6 ports

MHR REPLICA CYLINDER KIT The MHR Replica line of cylinder was created especially for the International Scooter Trophy - 70cc Automatic Class. These cylinder kits were designed to guarantee maximum performance in this category, while at the same time assuring extremely long product life. In order to guarantee these special characteristics, Malossi MHR Replica cylinder kit have pistons with two chrome-plated rectangular segmants and a compression ratio of 13.8:1, plus torque value of 7.35 N.m. (o.75 Kgm) at 8.000 rpm and power of 6.6 Kw (9 C.V.) at 8.500 rpm. The MHR line is the results of…

COMPLETE CYLINDER 4-STROKE TECHNICAL FEATURES Cylinder Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing…

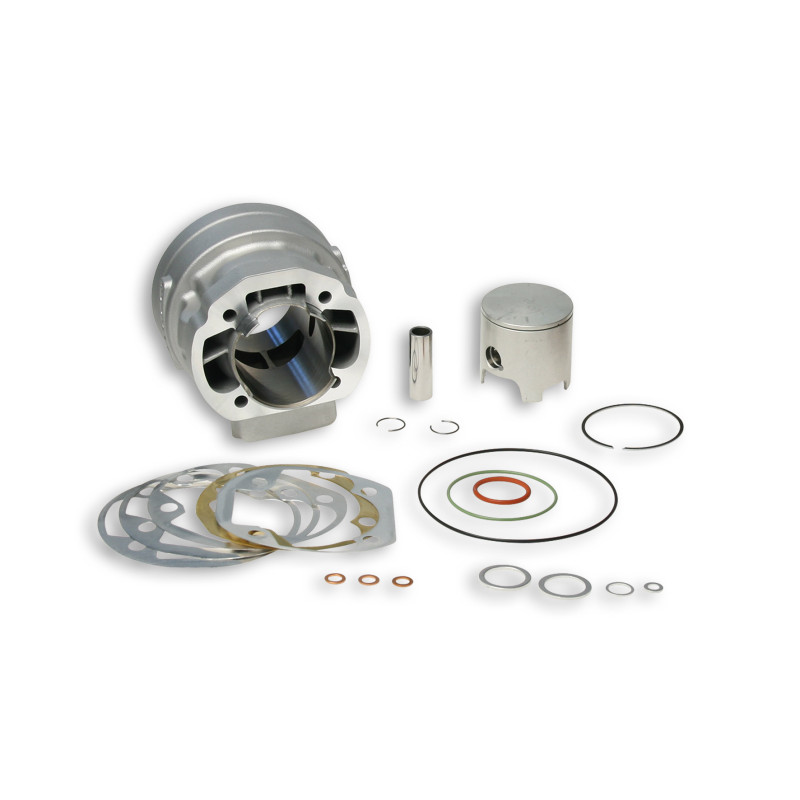

BIG BORE Testa Rossa 94 cc The new generation BIG BORE engine! Stud bolts, only for liquid-cooled scooters (7 ports and exhaut crossbar - piston with 1 segment - modular head - required boring of original case or C-One Malossi case - engine shaft with connecting rod different from the original). Deriving directly from seven port technology, which animates the revolutionary Flanged Mount, BIG BORE Testa Rossa cylinders represent the latest success achieved thanks to the efforts and studies that Malossi has continued to devote to engines intended for original Piaggio and Yamaha cases and, with…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…
