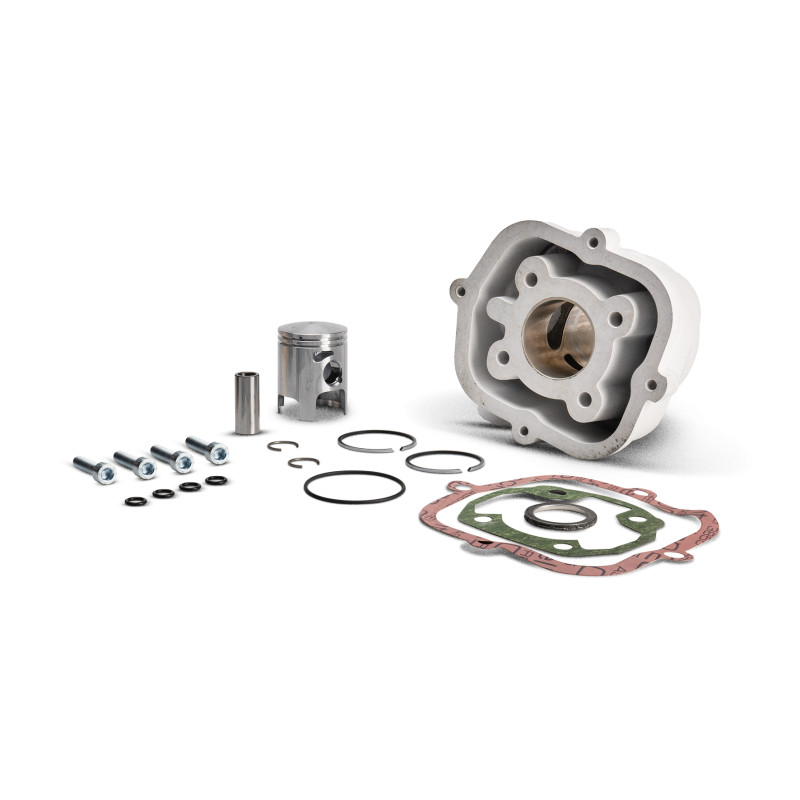

Ø 47 BIG DEPS 4 MHR Universal cylinder kit for mopeds The cylinder kit Ø 47 BIG DEPS 4 MHR combines the best aspects of the BIG DEPS with absolutely innovative and unique features. Designed for all the Ciao, Si, Bravo, Boss and Grillo mopeds, it is at the top of the range of the already extensive family of tuning kits for Mopeds. The drilling, unlike the other components in the range, involves fixing the cylinder exclusively to the Malossi MP-One casing by means of 4 studs thanks to which, in addition to distributing the forces during operation in a much more efficient manner, our technicians…

Tecnical data Material: alluminium Cooling: air Bore: 40 mm Stroke: 39,1 mm Capacity: 50 cc Compression ratio: 11,8:1 Timing system: 5 ports

Vespa ET3 125 Cylinder THE NEW LEGEND Malossi is proud to introduce to its public the total renewal of a real legend, one of the most long-lived and successful projects ever linked to our trade mark: the new and amazing cylinder for Vespa ET3 125. This time wholly aluminium made . The story of this cylinder kit starts in 1982 when, for the first time in a cast iron cylinder with this ring, an oring is used as seal gasket between head and cylinder: a refined solution representing so far the state of the art. Malossi has taken a blank paper to redesign its project, drawing it up new from the…

MHR REPLICA CYLINDER KIT The MHR Replica line of cylinder was created especially for the International Scooter Trophy - 70cc Automatic Class. These cylinder kits were designed to guarantee maximum performance in this category, while at the same time assuring extremely long product life. In order to guarantee these special characteristics, Malossi MHR Replica cylinder kit have pistons with two chrome-plated rectangular segmants and a compression ratio of 13.8:1, plus torque value of 7.35 N.m. (o.75 Kgm) at 8.000 rpm and power of 6.6 Kw (9 C.V.) at 8.500 rpm. The MHR line is the results of…

VESPA NEVER DIES Aluminium cylinder kit Ø 68,5 Afurther upgrade for the timeless Ø 68.5 cylinder kit! 1983 The aluminium cylinder with 68,5 mm diameter - turning point in Vespa tuning - was born. Made of Nicasil aluminium, with super light piston and 1.2 mm semi trapezoidal rings, it becomes a legend, a real musthave for all Vespa fans. 2008 The cylinder is updated, by adding the head with hemispherical combustion chamber and central spark plug. 2013 The cylinder, always made of Nicasil aluminium, has been completely changed concerning both main and rear ports and exhaust port as well.…

Big Bore Testa rossa Cylinder kits The new generation BIG BORE Testa rossa cylinder kits! Stud bolts, only for liquid-cooled scooters. (7 ports and exhaust crossbar - piston with 1 segment - modular head - required boring of original case - engine shaft with connecting rod different from the original). Deriving directly from seven port technology, which animates the revolutionary Flanged Mount, BIG BORE Testa Rossa cylinders represent the latest success achieved thanks to the efforts and studies that Malossi has continued to devote to engines intended for original Piaggio and Yamaha cases…

Technical features Cylinder Bore: Ø 63 mm Stroke: 58.6 mm Displacement: 182.67 cc Compression ratio: 11.15:1 Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high…

Testa Rossa Flanged Mount 70 cc Maximum performance, flanged design, only for liquid-cooled scooters (7 ports and exhaust crossbar - piston with 1 segment - modular head - required use of C-One Malossi case - engine shaft with connecting rod different from the original). Testa Rossa Flanged Mount 94 cc The most powerful cylinder ever to be produced by Malossi. High capacity, flanged design, only for liquid-cooled scooters (7 ports and exhaust crossbar - piston with 1 segment - modular head - required use of RC-One Malossi case - engine shaft with connecting rod different from the original).…

CYLINDER KIT MHR modular head The new MHR MODULAR-HEAD CYLINDER KITS are the natural evolution of the MHR MALOSSI line. The result of the research of its engineers, they have been a decisive factor in the victories of the official national and European teams in the cross and speed trophies. Malossi is happy to be able to guarantee that all riders taking part in the coming season National and European Trophies will have a product offering excellent quality and performance. CYLINDER Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

COMPLETE CYLINDER 4-STROKE TECHNICAL FEATURES Cylinder Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances. Machining: on machine tools with high precision numerical control. Cylinder-piston connection with an allowance of 0.05 mm. Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings. Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing…

Fun without complications (6 transfer ports – 2 ring piston) Malossi cast iron thermal units, the first and simplest step to modifying your motorcycl’s engine, are the best choice for continued use of the exhaust system of an approved series or type . For these thermal units, the elevated feature of durability of cast iron is combined with the almost manically high quality standards of Malossi, one of the few companies to demand the most from even this class of thermal units. Into this is inserted the most rigid selections for the joining of the cylinder and the piston, strictly maintained…

CAST-IRON CYLINDER KITS Malossi is glad to present the new line of cylinder kits which have been designed for the latest generation scooters. They are unique tools able to defeat the traffic black-out of our cities. They are highly reliable and they have an exceptional torque. They have been studied to support a prolonged stress and can offer high accelerations even on highly pendent roads. They do not know neither fatigue nor wear. Cylinders made of selected lamellar cast iron alloys with recalculated cooling surface. Strengthened pistons made of aluminium alloys with high silicon content,…
