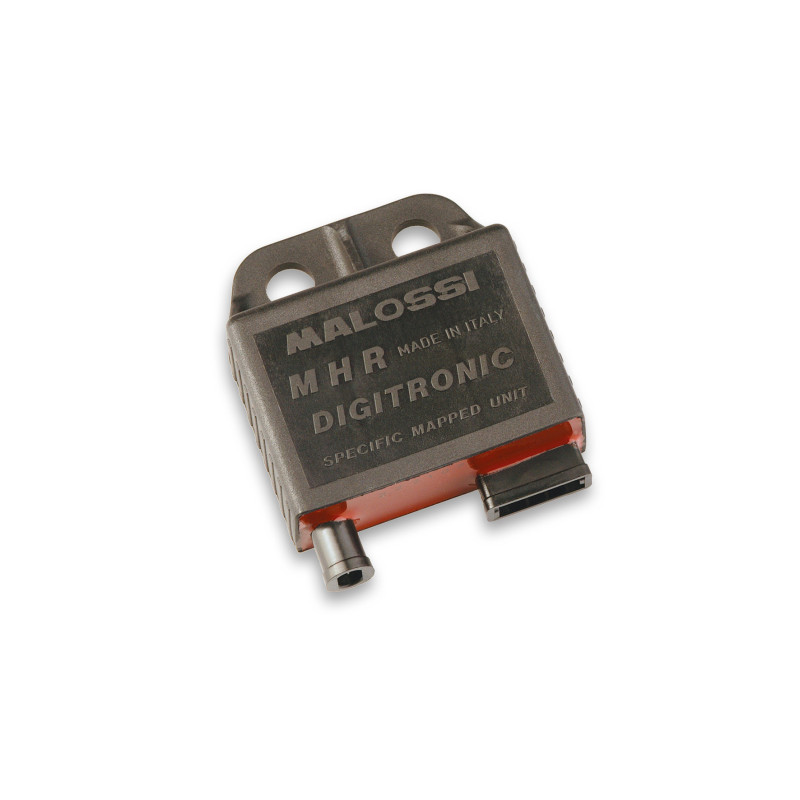

MALOSSI - DIGITRONIC VARIABLE ADVANCE digital elec.contr.
5511399
€178.65
€151.85
Save 15%
Handling 4-5 days
ELECTRONIC COILS The continuous development of electronics in the automotive segment led Malossi to the creation and marketing of a complete line of electronic coils for scooters to be used on the street and for races which is at the highest level of technology. Each electronic coil model was expressly studied for the scooter it will be fitted on, and this is the reason why after endless tests on the bench, on rollers and on the racing track an optimal start up map (fixed or variable) has been prepared in order to obtain the best performances of the vehicle. The Malossi electronic coils were…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
ELECTRONIC COILS
The continuous development of electronics in the automotive segment led Malossi to the creation and marketing of a complete line of electronic coils for scooters to be used on the street and for races which is at the highest level of technology.
Each electronic coil model was expressly studied for the scooter it will be fitted on, and this is the reason why after endless tests on the bench, on rollers and on the racing track an optimal start up map (fixed or variable) has been prepared in order to obtain the best performances of the vehicle. The Malossi electronic coils were designed to allow also a very easy assembling, since they are interchangeable with the original boxes. They are compact and ergonomic, so they can be connected perfectly to the original connectors.
Furthermore, these coils allow the elimination of the rpm limiter installed on some standard power boxes, enabling in this way the full exploitation of the engine's power and torque even at the highest regimes, up to 20.000 rpm. These electronic coils are based on capacitive discharges, therefore they allow maximum limitation of circuit transients during voltage discharge, while obtaining a virtually perfect peak voltage on the spark plug (35.000 - 50.000 volts depending on the engine regime); moreover they grant extremely high discharge voltages and currents with surprising steadiness with respect to engine rpm variation.
Technical features
- Feeding of the electronic coil: original
- Maximum number of revolutions/minute: 20.000
- Voltage discharge: 35.000 – 50.000 volt
- Advance: variable
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Documents and videos
Vehicle compatibility (8 vehicles)
Gilera(2)
- RUNNER FX 125 2T LC
- RUNNER FXR - SP 180 2T LC
Italjet(2)
- DRAGSTER 125 2T LC
- DRAGSTER 180 2T LC
Piaggio(4)
- HEXAGON 125 2T LC
- HEXAGON 150 2T LC
- HEXAGON LX 125 2T LC
- HEXAGON LXT 180 2T LC
5511399
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Gilera
Italjet
Piaggio - Vehicle
- Gilera RUNNER FX 125 2T LC
Gilera RUNNER FXR - SP 180 2T LC
Italjet DRAGSTER 125 2T LC
Italjet DRAGSTER 180 2T LC
Piaggio HEXAGON 125 2T LC
Piaggio HEXAGON 150 2T LC
Piaggio HEXAGON LX 125 2T LC
Piaggio HEXAGON LXT 180 2T LC
