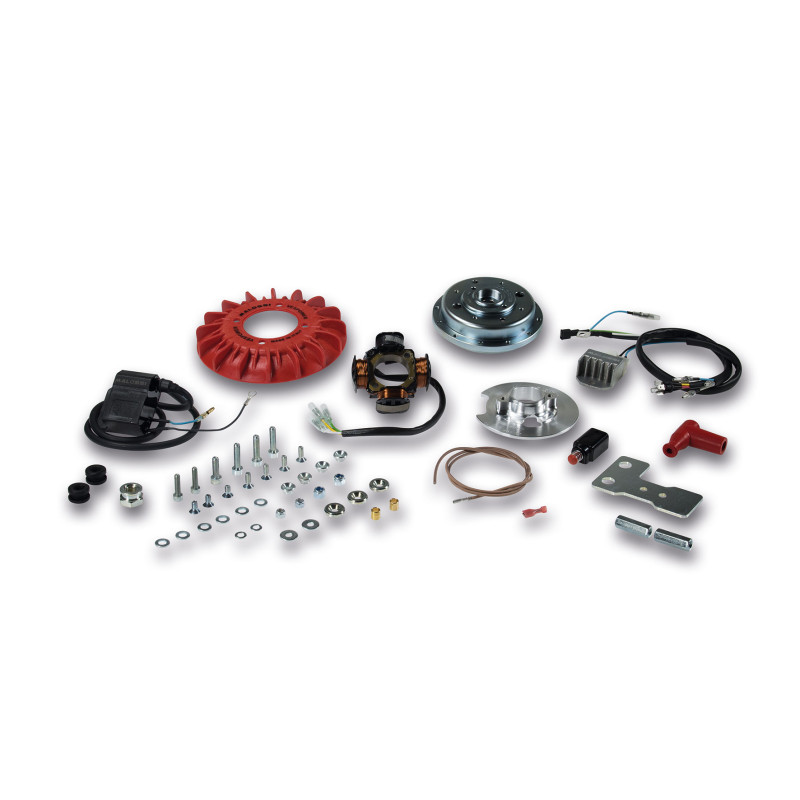

Range of complete ignitions for vintage gear Vespa.
In order to allow an easy and perfect installation, a specific version for each model has been studied.
The new ignition range features:
Code | Applications | Crankshaft | Static | Moment | Note |
5518177 | GL 150 2T euro 0 | 17 | (*) 1,8 | (*) 54 | You need to replace all the lamps (from 6 to 12 V) respecting original power expressed in Watts. |
| 5516951 | ET3 Primavera 125 2T (**) Primavera 125 2T | 19 | 1,2 | 28 | You need to replace all the lamps (from 6 to 12 V) respecting original power expressed in Watts. |
| 5516952 | SPECIAL 50 | 19 | 1,2 | 28 | You need to replace all the lamps (from 6 to 12 V) respecting original power expressed in Watts. |
| 5516953 (***) | COSA 125 - 150 - 200 2T PX 125 - 150 euro 0-1-2-3 PX E 200 2T | 20 | 1,2 | 28 | - |
| 5516955 | ET3 Primavera 125 2T (**) Primavera 125 2T | 20 | 1,2 | 28 | You need to replace all the lamps (from 6 to 12 V) respecting original power expressed in Watts. |
| 5517175 | PX 125 - 150 2T euro 0-1-2-3 PX E 200 2T | 20 | 1,2 | 28 | Only for vehicles with electric starter. |
| 5518372 | ETS 125 PK 50 - 125 - PK HP 50 PK XL 50 - 125 | 20 | 1,2 | 28 | There is no need to replace the light bulbs. |
| 5516956 (***) | COSA 125 - 150 - 200 2T PX 125 - 150 euro 0-1-2-3 PX E 200 2T | 20 | 0,9 | 17 | Ignition with further lightened inertia flywheel is available, void of external set up for additional masses. |
| 5516958 | ET3 Primavera 125 2T (**) Primavera 125 2T | 20 | 0,9 | 17 | Ignition with further lightened inertia flywheel is available, void of external set up for additional masses. |
NB:
(*) Values refer to flywheel with magnets, additional mass and 6 connecting screws.
(**) For proper fitting you have to modify the ignition wiring supplied into the kit.
(***) For versions without parking optional wiring is available art. 5515703: battery charger kit, consisting of wires and voltage regulator.
As optional you can get the additional flywheel masses, which allow to adapt the ignition to the own vehicle according to its set-up, thus further increasing the moment of inertia.
You can choose between two versions with different weight and moment of inertia:
Code | Applications | Dimensions | Static weight gr. | Moment |
| 1715715 | For ALL VESPower EXCEPT art. 5516956 art. 5517175 | 144x105x18 | 824 | 34 |
| 1715716 | For ALL VESPower EXCEPT art. 5516956 art. 5517175 | 134x105x18 | 420 | 19 |
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Data sheet
Technical features: High-quality resistor spark plug cap, which ensures constant resistance with minimal variations in overload conditions. External body made with a robust rubber structure featured by excellent resistance to intense heat and mechanical stress. Special rubber rings positioned internally and at the ends allowing to avoid external discharge even in conditions of high humidity.
12 Volt (90 watt) 4 pole stator. It IS necessary to change all of the original bulbs!
ELECTRONIC COILS The continuous development of electronics in the automotive segment led Malossi to the creation and marketing of a complete line of electronic coils for scooters to be used on the street and for races which is at the highest level of technology. Each electronic coil model was expressly studied for the scooter it will be fitted on, and this is the reason why after endless tests on the bench, on rollers and on the racing track an optimal start up map (fixed or variable) has been prepared in order to obtain the best performances of the vehicle. The Malossi electronic coils were…

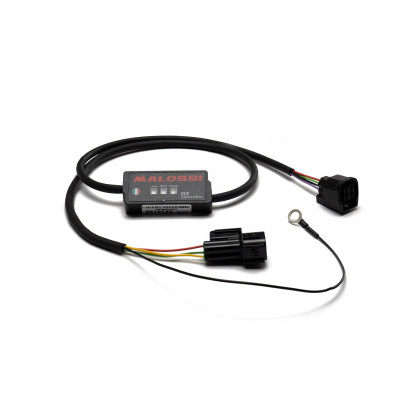

The use of the new O 2 controller allows for carburetion management in the area where the Lambda sensor controls the air/petrol mixture to be introduced into the combustion chamber. This device is able to make the Lambda sensor work at a value other than stoichiometric, improving the A/F (Air/Fuel ratio) to improve torque and power while respecting the engine’s DNA. Malossi’s research and development department’s main objective is to ensure that each vehicle has a calibration designed to optimise performance and consumption. The evolution that engine control systems have undergone in recent…

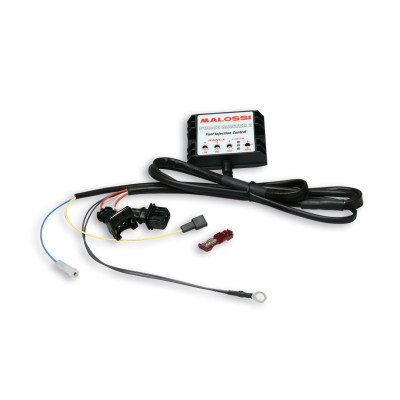

Besides its improved fuel curves, efforts from Malossi’s technical staff resulted with a rev limiter increase of 1.200 RPM depending on the vehicle, making Force Master an even higher performing ECU! Force Master allows to change the injection in order to fit perfectly the Malossi 4-stroke and original cylinders. Carburation adjusting ± 20% at min/medium/max RPM limiter : + 1.200 RPM Original 9.800 - Malossi 11.000 4 different maps : curve 0 : original exhaust system, original cylinder, original head, original camshaft and original filter curve 1 : original exhaust system, Malossi cylinder,…
Malossi is proud to offer its new Digitronic ECU with variable ignition timing! Compared to the original ECU, Malossi has completely modified the ignition timing performance maps and increased the rev limit by 1000 RPMs. The new Digitronic controls the ignition timing, SAS valve, and PTC heater performance maps. Ignition Timing Performance Map The ignition timing is controlled by performing a linear interpolation of a tri-dimensional performance map, containing 16 break points for engine speed and 8 break points for engine temperature. SAS Valve Performance Map The secondary air supply to the…
Besides its improved fuel curves, efforts from Malossi’s technical staff resulted with a rev limiter increase of 1,000 RPM depending on the vehicle, making Force Master an even higher performing ECU! Force Master allows to change the injection in order to fit perfectly the Malossi 4-stroke and original cylinders. Carburation adjusting ± 20% at min/medium/max RPM limiter : + 1000 RPM Original 9.000 - Malossi 10.000 (*) 4 different maps : curve 0 : original exhaust system, original cylinder, original head, original camshaft and original filter curve 1 : Malossi exhaust system with db killer,…
Besides its improved fuel curves, efforts from Malossi’s technical staff resulted with a rev limiter increase of 1300 RPM depending on the vehicle, making Force Master an even higher performing ECU! Force Master allows to change the injection in order to fit perfectly the Malossi 4-stroke and original cylinders. Carburation adjusting ± 6% at min/medium/max RPM limiter : + 1300 RPM Original 9.200 - Malossi 10.500 (*) 3 different maps : curve 1 : original exhaust system, original cylinder, Malossi manifold, original head, original camshaft and original filter curve 2 : original exhaust system,…
With an all-new look, the Force Master 2.1 control unit is much easier to configure. Making products more ergonomic and easy to use has always been a Malossi goal: Force Master 2.1 is a contemporary, adequate and super performing product. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter. Technical details Carburation adjusting ±…
The Injtronic engine control unit is the natural evolution of the original Piaggio system and enhances vehicle performance. The latest generation 32 bit microprocessor and hardware designed according to the most recent automotive quality standards make up the RACING DNA of this device. Designed to be plug & play, in other words compatible with the original sensors and actuators, the control unit only needs simple throttle calibration to synchronize the engine electronic control system. The calibrations and fine-tuning allow for a definite increase in engine performance. Technical features…
Besides its improved fuel curves, efforts from Malossi’s technical staff resulted with a rev limiter increase of 2,250 RPM depending on the vehicle, making Force Master an even higher performing ECU! Force Master allows to change the injection in order to fit perfectly the Malossi 4-stroke and original cylinders. Carburation adjusting ± 20% at min/medium/max RPM limiter : + 2,250 RPM Original 9.250 - Malossi 11.500 4 different maps : curve 0 : original exhaust system, cylinder with kit Malossi ø 63 mm 125 cc., original head, original camshaft and original filter curve 1 : Malossi exhaust…
When preparing motors, ignition usually gets secondary attention. Yet this component is of vital importance since it is the one that manages the exact moment in which to ignite the spark on the glow plug and regulates the amount of current that determines the quality of the spark in order to obtain optimal combustion. Both in prepared and original engines, replacement with a newer and more performing ignition is an operation that can breathe new life into the engine itself and allows for more efficient and simple fine tuning. alossi and its team of engineers are proud to announce Power , the…
LIMITLESS Have you heard of the theory that argues we use only twenty per cent of our brain? With Force Master 3 you'll use a hundred per cent... of your engine! To improve our most advance control module, we designed with vision, starting with the milestones achieved so far. Thus was conceived Force Master 3, a futuristic control module both in hardware and in software. INTEGRATED LAMBDA EMULATOR The original control module of the scooter, for analysis of the air/fuel ratio and to adjust the carburetion accordingly, normally interfaces with the lambda sensor installed on the silencer. force…

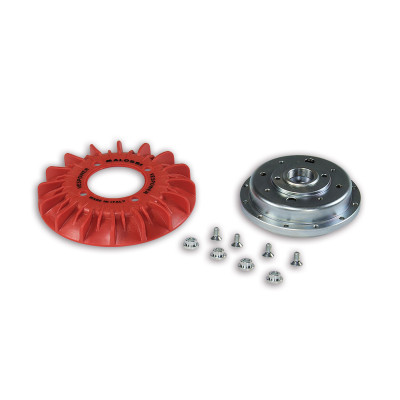

Light flywheel (885 g for a 16.2 kg/cm2 moment of inertia) hot moulded and designed to resist the highest amount of rotations!
