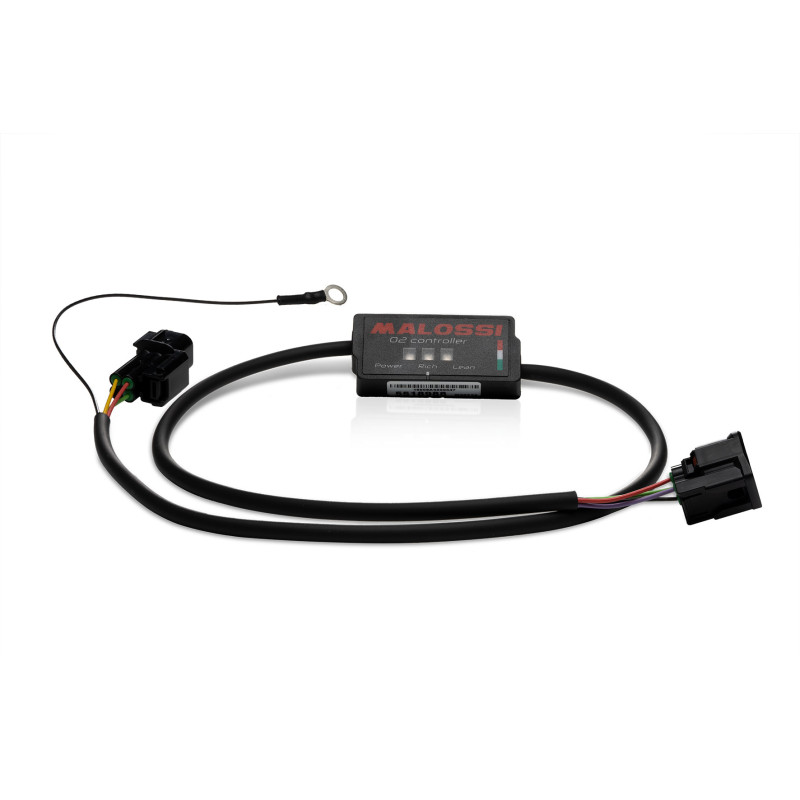

MALOSSI - O2 controller - lambda emulator
5518988B
€148.50
€126.23
Save 15%
Handling 4-5 days
The use of the new O 2 controller allows for carburetion management in the area where the Lambda sensor controls the air/petrol mixture to be introduced into the combustion chamber. This device is able to make the Lambda sensor work at a value other than stoichiometric, improving the A/F (Air/Fuel ratio) to improve torque and power while respecting the engine’s DNA. Malossi’s research and development department’s main objective is to ensure that each vehicle has a calibration designed to optimise performance and consumption. The evolution that engine control systems have undergone in recent…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
The use of the new O2 controller allows for carburetion management in the area where the Lambda sensor controls the air/petrol mixture to be introduced into the combustion chamber. This device is able to make the Lambda sensor work at a value other than stoichiometric, improving the A/F (Air/Fuel ratio) to improve torque and power while respecting the engine’s DNA.
Malossi’s research and development department’s main objective is to ensure that each vehicle has a calibration designed to optimise performance and consumption.
The evolution that engine control systems have undergone in recent years has led to the design of this new version. The emulation of the Lambda sensor signals now corresponds perfectly to the original sensor, while the appearance has been refined and enhanced with an essential optical interface, which emulates the real operation of the device.
The Power LED indicates correct power supply, while the remaining two LEDs show the carburetion status. After ignition of the vehicle, the power and Rich (rich carburetion) led lights up. After a period of sensor warm up, if you are in the Lambda closed loop control area, you will see the two Rich and Lean LEDs light up alternately. This type of action highlights the correct functioning of the device through continuous calibration of the A/F title.
Can be mounted in combination with the Force Master controller.
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Documents and videos
Vehicle compatibility (9 vehicles)
Piaggio(1)
- BEVERLY HPE 300 ie 4T LC euro 5 2021→ (M21M)
Vespa(8)
- GTS HPE 300 ie 4T LC euro 5 2021→2022 (MD31M)
- GTS Super HPE 300 ie 4T LC euro 5 2021→2022 (MD31M)
- GTS Super RACING SIXTIES HPE 300 ie 4T LC euro 5 2021→2022 (MD31M)
- GTS Super Sport HPE 300 ie 4T LC euro 5 2021→2022 (MD31M)
- GTS Super Tech HPE 300 ie 4T LC euro 5 2021→2022 (MD31M)
- GTS Touring HPE 300 ie 4T LC euro 5 2021→2022 (MD31M)
- SEI GIORNI HPE 300 ie 4T LC euro 5 2021→2022 (MD31M)
- SEI GIORNI II EDITION HPE 300 ie 4T LC euro 5 2021→2022 (MD31M)
Frequently asked questions
Faq
-
Can I fit the emulator with a cat-free exhaust?
The emulator has been designed for use with catalytic converters. If the catalytic converter is removed, the correct operation of the device cannot be guaranteed.
5518988B
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Piaggio
Vespa - Vehicle
- Piaggio BEVERLY HPE 300 ie 4T LC euro 5 2021→ (M21M)
Vespa GTS HPE 300 ie 4T LC euro 5 2021→2022 (MD31M)
Vespa GTS Super HPE 300 ie 4T LC euro 5 2021→2022 (MD31M)
Vespa GTS Super RACING SIXTIES HPE 300 ie 4T LC euro 5 2021→2022 (MD31M)
Vespa GTS Super Sport HPE 300 ie 4T LC euro 5 2021→2022 (MD31M)
Vespa GTS Super Tech HPE 300 ie 4T LC euro 5 2021→2022 (MD31M)
Vespa GTS Touring HPE 300 ie 4T LC euro 5 2021→2022 (MD31M)
Vespa SEI GIORNI HPE 300 ie 4T LC euro 5 2021→2022 (MD31M)
Vespa SEI GIORNI II EDITION HPE 300 ie 4T LC euro 5 2021→2022 (MD31M)
