ELECTRONIC COILS The continuous development of electronics in the automotive segment led Malossi to the creation and marketing of a complete line of electronic coils for scooters to be used on the street and for races which is at the highest level of technology. Each electronic coil model was expressly studied for the scooter it will be fitted on, and this is the reason why after endless tests on the bench, on rollers and on the racing track an optimal start up map (fixed or variable) has been prepared in order to obtain the best performances of the vehicle. The Malossi electronic coils were…

MHR Team II ignition is a great innovation!!! Manages multiple maps simultaneously without having to resort to a hand-held device, with just a simple click. Ability to shift the selected map by moving the OFFSET (± 2°). The inner rotor ignition systems designed by Malossi are based on the state-of-the-art technology applied to racing. Such a new system resulted from the need to overcome the technical limitations imposed by conventional flywheel ignition, which cannot ensure consistent performance over 10,000 rpm and causes severe setting-up problems for racing vehicles. We made the control…

Besides its improved fuel curves, efforts from Malossi’s technical staff resulted with a rev limiter increase depending on the vehicle, making Force Master an even higher performing ECU! Force Master allows to change the injection in order to fit perfectly the Malossi 4-stroke and original cylinders. Carburation adjusting ± 20% at min/medium/max RPM limiter : Original 9.800 - Malossi 9.800 4 different maps : curve 0 - vehicle version 125 cc : original exhaust system, Malossi cylinder, original head, original camshaft and original filter curve 1 - vehicle version 125 cc : Malossi exhaust…

The use of the new O 2 controller allows for carburetion management in the area where the Lambda sensor controls the air/petrol mixture to be introduced into the combustion chamber. This device is able to make the Lambda sensor work at a value other than stoichiometric, improving the A/F (Air/Fuel ratio) to improve torque and power while respecting the engine’s DNA. Malossi’s research and development department’s main objective is to ensure that each vehicle has a calibration designed to optimise performance and consumption. The evolution that engine control systems have undergone in recent…

Current generator sealed with shock ? resistant injection of insulating and waterproof resin.

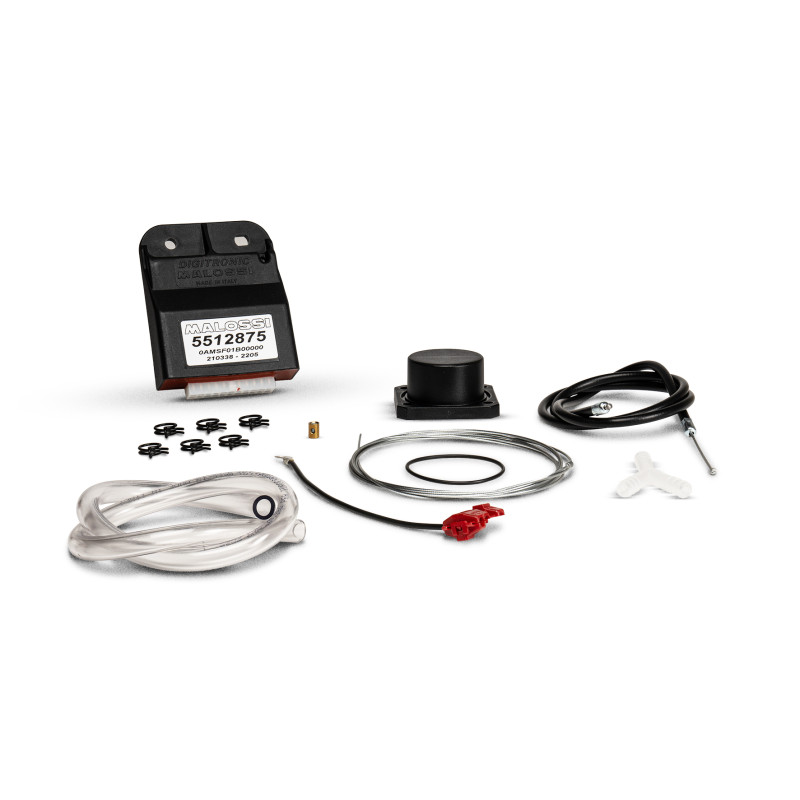

Malossi is proud to offer its new Digitronic ECU with variable ignition timing! Compared to the original ECU, Malossi has completely modified the ignition timing performance maps and increased the rev limit to 15,000 RPMs. The new Digitronic controls the ignition timing and SAS valve. Ignition Timing Performance Map The ignition timing is controlled by performing a linear interpolation of a tri-dimensional performance map, containing 16 break points for engine speed and 8 break points for engine temperature. SAS Valve Performance Map The secondary air supply to the base of the throttle body…

Besides its improved fuel curves, efforts from Malossi’s technical staff resulted with a rev limiter increase of 2,200 RPM depending on the vehicle, making Force Master an even higher performing ECU! Force Master allows to change the injection in order to fit perfectly the Malossi 4-stroke and original cylinders. Carburation adjusting ± 6% at min/medium/max RPM limiter : + 2,200 RPM Original 7.800 - Malossi 10.000 3 different maps : curve 0 : original exhaust system, original cylinder, original head, original camshaft and original filter curve 1 : original exhaust system, cylinder with kit…

Besides its improved fuel curves, efforts from Malossi’s technical staff resulted with a rev limiter increase of 1.200 RPM depending on the vehicle, making Force Master an even higher performing ECU! Force Master allows to change the injection in order to fit perfectly the Malossi 4-stroke and original cylinders. Carburation adjusting ± 20% at min/medium/max RPM limiter : + 1.200 RPM Original 9.800 - Malossi 11.000 4 different maps : curve 0 : original exhaust system, original cylinder, original head, original camshaft and original filter curve 1 : original exhaust system, Malossi cylinder,…

With an all-new look, the Force Master 2.1 control unit is much easier to configure. Making products more ergonomic and easy to use has always been a Malossi goal: Force Master 2.1 is a contemporary, adequate and super performing product. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter. Technical details Carburation adjusting ±…

The use of the new O 2 controller allows for carburetion management in the area where the Lambda sensor controls the air/petrol mixture to be introduced into the combustion chamber. This device is able to make the Lambda sensor work at a value other than stoichiometric, improving the A/F (Air/Fuel ratio) to improve torque and power while respecting the engine’s DNA. Malossi’s research and development department’s main objective is to ensure that each vehicle has a calibration designed to optimise performance and consumption. The evolution that engine control systems have undergone in recent…

When preparing motors, ignition usually gets secondary attention. Yet this component is of vital importance since it is the one that manages the exact moment in which to ignite the spark on the glow plug and regulates the amount of current that determines the quality of the spark in order to obtain optimal combustion. Both in prepared and original engines, replacement with a newer and more performing ignition is an operation that can breathe new life into the engine itself and allows for more efficient and simple fine tuning. Malossi and its team of engineers are proud to announce Power , the…

ELECTRONIC COILS The continuous development of electronics in the automotive segment led Malossi to the creation and marketing of a complete line of electronic coils for scooters to be used on the street and for races which is at the highest level of technology. Each electronic coil model was expressly studied for the scooter it will be fitted on, and this is the reason why after endless tests on the bench, on rollers and on the racing track an optimal start up map (fixed or variable) has been prepared in order to obtain the best performances of the vehicle. The Malossi electronic coils were…
