TWINS MAXI SUSPENSIONS COMFORT & SAFETY The original ones do their job, but these do it better. Malossi TWINS shock absorbers deliver a stiffer, more responsive, and sportier ride . Your vehicle immediately changes attitude: more control, more stability, more fun on the road. Your vehicle immediately changes attitude: more control, more stability, more fun on the road. And yes, they’re adjustable . Thanks to the preloaded spring setting, you can tailor them to your weight, load, road type, or riding style. Technical data Type: oil-pneumatic Use: road Shock absorber rod d. 12mm in C43…

It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation. Ø 36 mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration. LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound). Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE + PB). Polyester resin SEALTHANE grade 9345 scraper ring. 38NCD4…

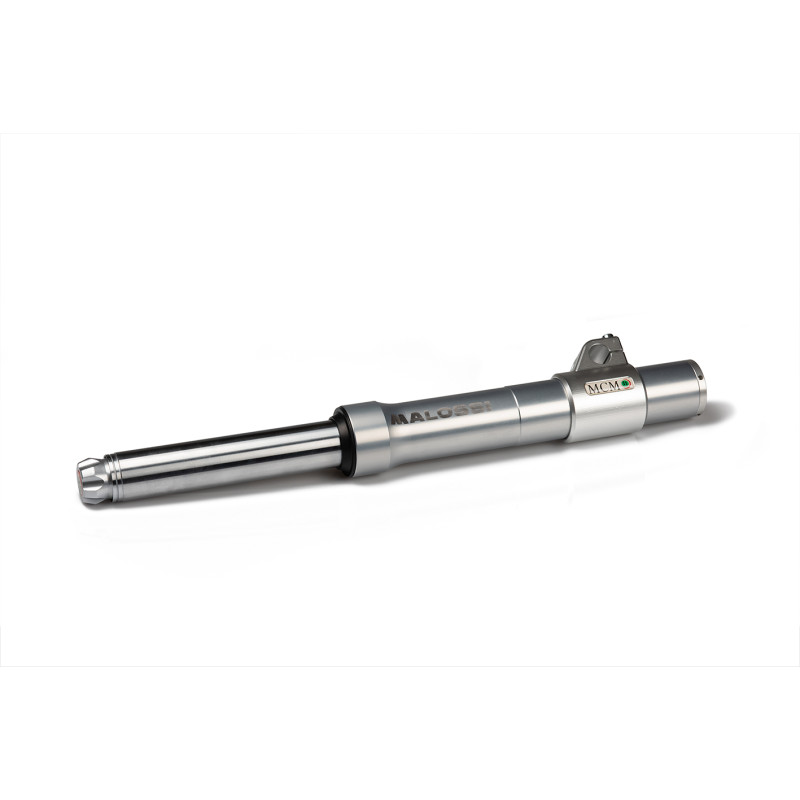

Racing forks with the highest performance This forks were studied and designed using the best technology currently available world wide in the cross racing sector. Malossi chose the most technologically advanced materials, thus producing stems in Anticorodal , a special aluminium alloy, and machining them from the solid. Fork tubes have a larger diameter and they have been lapped with chromium coating. The F37R front forks are machined entirely from the solid in order to obtain the shape and structural strength required to withstand the elevated loads applied during competition. Technical…

Technical features 36 mm telescopic tubes in special steel, ground and lapped with titanium coating for exceptional smoothness of movement. Stem in special extruded aluminium alloy (Anticorodal), machined from the solid using NC machines and anodized. Wheel couplings in special aluminium alloy machined from the solid by chip machining. Single-cartridge hydraulic piston system with sliding on D.U. bushes and oscillating oil-seal bush to keep friction to an absolute minimum. Adjustement of spring loading. Adjustement of rebound braking. Adjustement of compression braking. Range of fork 110 mm.

This range of shock absorbers was born thanks to our firm’s desire to offer their customers a range of products of superior class, capable of granting great riding comfort coupled with matchless driving safety. The technical characteristics of these special shock absorbers demonstrate they are the most technically advanced on the market today. Oil-gas shock absorber with adjustable spring preload.

TWINS MAXI SUSPENSIONS COMFORT & SAFETY The original ones do their job, but these do it better. Malossi TWINS shock absorbers deliver a stiffer, more responsive, and sportier ride . Your vehicle immediately changes attitude: more control, more stability, more fun on the road. Your vehicle immediately changes attitude: more control, more stability, more fun on the road. And yes, they’re adjustable . Thanks to the preloaded spring setting, you can tailor them to your weight, load, road type, or riding style. Technical data Type: oil-pneumatic Use: road Shock absorber rod d. 12mm in C43…

TWINS MAXI SUSPENSIONS COMFORT & SAFETY The original ones do their job, but these do it better. Malossi TWINS shock absorbers deliver a stiffer, more responsive, and sportier ride . Your vehicle immediately changes attitude: more control, more stability, more fun on the road. Your vehicle immediately changes attitude: more control, more stability, more fun on the road. And yes, they’re adjustable . Thanks to the preloaded spring setting, you can tailor them to your weight, load, road type, or riding style. Technical data Type: oil-pneumatic Use: road Shock absorber rod d. 12mm in C43…

It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation. Ø 36 mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration. LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound). Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE + PB). Polyester resin SEALTHANE grade 9345 scraper ring. 38NCD4…

RS24/10-R shock absorbers Hydraulic pneumatic shock absorbers with variable suspension. The RS24/10-R rear shock absorber for maxi scooters consists of a single body crossed by a newly-designed hydraulic circuit that allows all adjustments to be integrated while maintaining the same dimensions as the original shock absorber, without reducing the overall dimensioning of the hydraulic brake. The shock absorber is fitted with no less than 4 adjustment devices: 1 - Wheelbase adjustment device. Turn to modify the height of the rear axle - 2mm + 8mm with respect to the original. 2 - Extension…

Fine adjustment kit of the spring preload for original fork Adjustment range: from -5 to +25 mm Thanks to this new Malossi kit you can adjust the spring preload of your fork, thus varying its compression with endless possible adjustments from a minimum of -5 mm to a maximum of +25 mm! -5 mm: allows to release the spring in comparison with the original preload +25 mm: allows to preload the spring in comparison with the original preload Technical features: Extremely light, completely made of 6000 series aluminium alloy (with magnesium and silicon) Range of the preload adjustment plug: -5 / +25…
