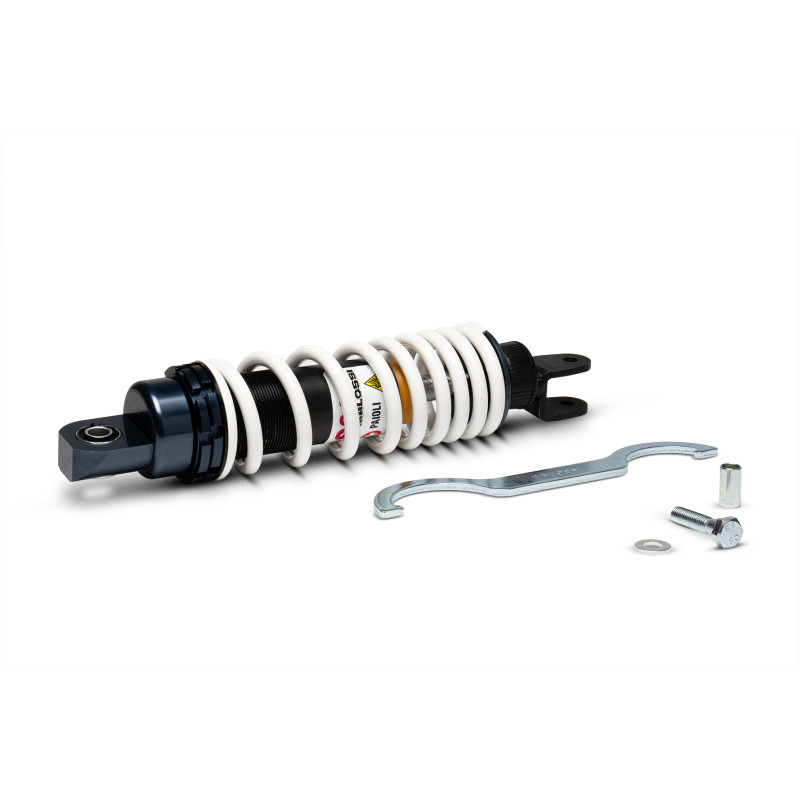

MALOSSI - REAR SHOCK ABSORBER RS24 - wheelbase 267 mm
46 7588
€298.33
€253.58
Save 15%
Handling 4-5 days
It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation. Ø 36 mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration. LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound). Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE + PB). Polyester resin SEALTHANE grade 9345 scraper ring. 38NCD4…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation.
- Ø 36 mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration.
- LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound).
- Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE + PB).
- Polyester resin SEALTHANE grade 9345 scraper ring.
- 38NCD4 alloy steel shock absorber rod ø 14 mm, hardened and tempered with hard chrome deposit thickness 25/30 microns (superficial hardness of the untreated shaft HRC 55/60).
| Code | Inter-axis mm | Stroke mm | |
| 46 7588 | rear | 267 | 42 |
| 46 7900 | front | 205 | 60 |
| 46 8308 | rear | 294 | 65 |
| 4611641 | rear | 410 | 85 |
| 4612962 | rear | 290 | 54 |
| 4613598 | rear | 316 | 45 |
| 4614615 | front | 257 | 90 |
4615218 | rear | 336 | 86 |
4620074 | rear | 336 | 86 |
4617065 | rear | 360 | 70 |
4617076 | front | 275 | 58 |
| 4617558 | front | 227 | 75 |
| 4619983 | front | 225 | 60 |
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
