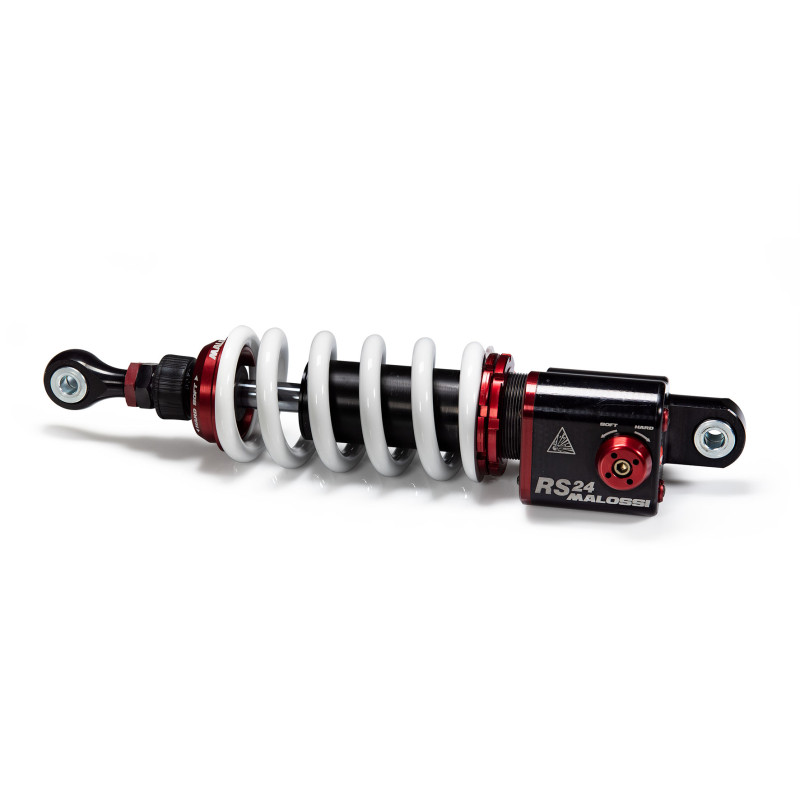

MALOSSI - REAR SHOCK ABSORBER RS24/10-R - wheelbase 350 mm
4618047B
€540.00
€459.00
Save 15%
Handling 4-5 days
RS24/10-R shock absorbers Hydraulic pneumatic shock absorbers with variable suspension. The RS24/10-R rear shock absorber for maxi scooters consists of a single body crossed by a newly-designed hydraulic circuit that allows all adjustments to be integrated while maintaining the same dimensions as the original shock absorber, without reducing the overall dimensioning of the hydraulic brake. The shock absorber is fitted with no less than 4 adjustment devices: 1 - Wheelbase adjustment device. Turn to modify the height of the rear axle - 2mm + 8mm with respect to the original. 2 - Extension…
Attention: Universal Product
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
This product is indicated as universal, it may not be compatible with your motorcycle.
Please make sure before purchasing it
Do you shop outside the EU?
click for Info!
Specialized team
click here and write to us!
Ask for info via WhatsApp!
Click HERE
Found a lower price?
Write to us HERE
Many Secure Payment Methods, Credit Cards or PayPal
RS24/10-R shock absorbers
Hydraulic pneumatic shock absorbers with variable suspension.
The RS24/10-R rear shock absorber for maxi scooters consists of a single body crossed by a newly-designed hydraulic circuit that allows all adjustments to be integrated while maintaining the same dimensions as the original shock absorber, without reducing the overall dimensioning of the hydraulic brake.
The shock absorber is fitted with no less than 4 adjustment devices:
1 - Wheelbase adjustment device.
Turn to modify the height of the rear axle - 2mm + 8mm with respect to the original.
2 - Extension adjustment to change the brake during re-opening of the shock absorber after being compressed .
3 - Adjustment of the spring pre-load to increase or decrease the “initial” load of the shock absorber and consequently to determine the greater or lesser initial rigidity of the system, i.e. the effort required to start the suspension by adjusting the agility, manoeuvrability and stability of the vehicle.
ATTENTION: Adjustment of the spring pre-load must be performed according to the extension, the weight of the vehicle and the rider with possible passengers. 4 - Compression adjustment to control the brake when closing the shock absorber and varying of the behaviour of this in relation to the unevenness of the ground. It is possible to use a more rigid but more stable sporting set-up or a gentler more comfortable touring configuration. The regulation acts at low shock absorbing speeds, that is during operation of the shock absorber on bends or when traversing slightly accentuated holes. At high speeds, instead, when, for example, pronounced potholes are present, perhaps in a completely straight line, a brake consists of a 20mm sintered piston with a specially calibrated valve pack.
The RS24/10-R is equipped with two nitrogen tanks for rod compensation. This system is used to completely modify the load curves depending on the pressure of each chamber, that is the handling modes during compression and extension, and guarantees greater compactness to the shock absorber with respect to the system with a single external tank, reduced friction and greater dispersion of the heat produced by functioning of the system.
- Body and fittings in anodised ergal, internal components in hard anodised ergal, 16 mm rod with thick hard chrome
- Double acting 40 diameter piston (compression and extension)
- Diaphragms in technical material with low friction and high durability
- Neoprene pad for Yamaha T Max 530, Kymco AK 550
- Polyurethane pad for BMW C 600/650
- Low viscosity index oil to minimise variations in hydraulic brake behaviour according to temperature
Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
Documents and videos
Vehicle compatibility (2 vehicles)
Kymco(2)

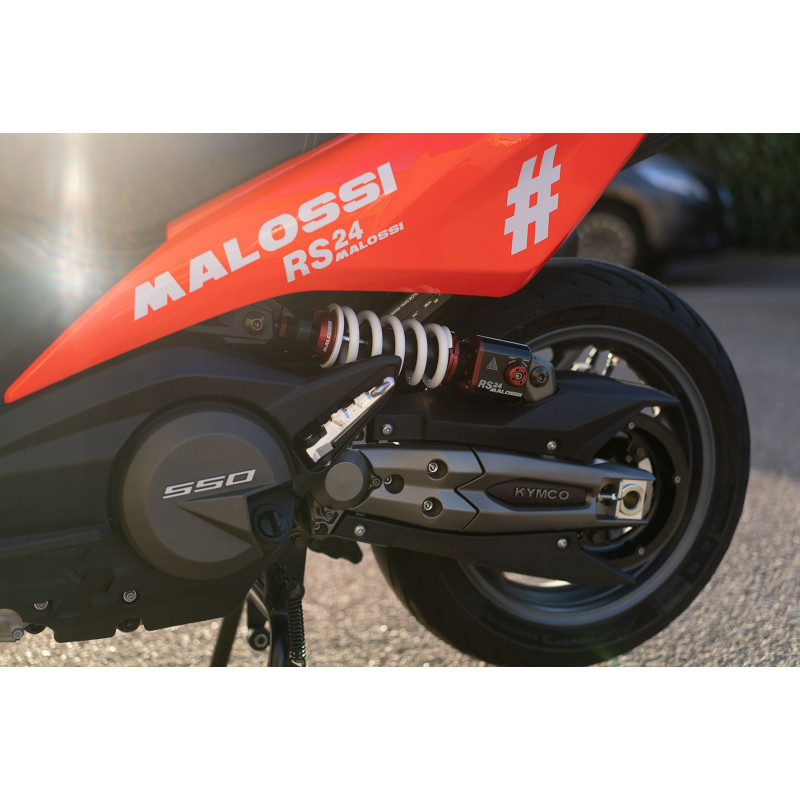

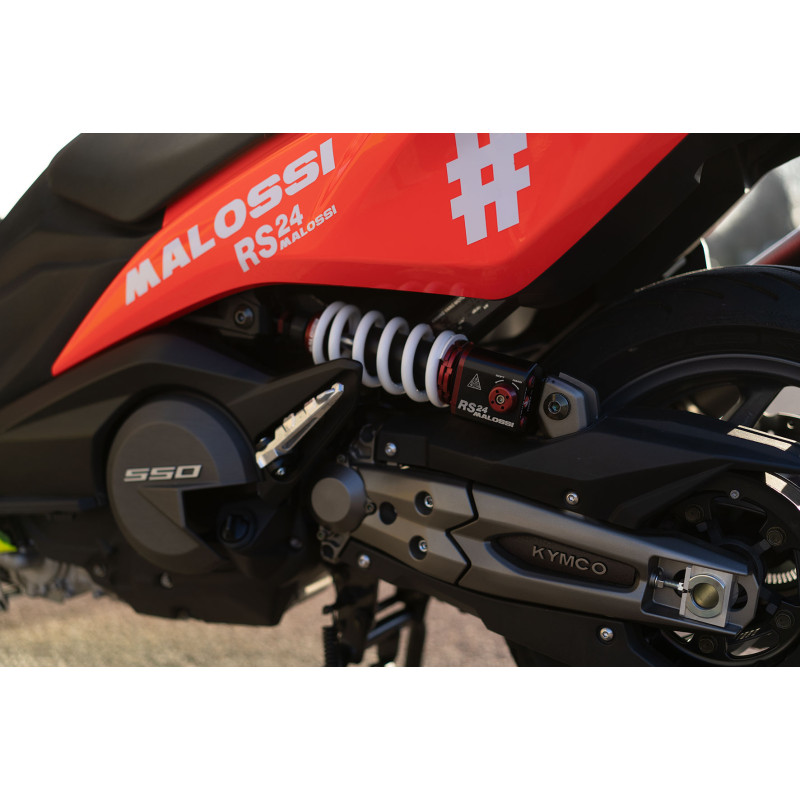

- AK 550 ie 4T LC euro 4 2017→2020 (SAA1)
- AK 550 ie 4T LC euro 5 2021→ (SBA1)
Frequently asked questions
Faq
-
If it discharges, can the shock absorber be remanufactured or does it have to be changed?
Our shock absorbers are removable and can be remanufactured at a specialised centre.
4618047B
Data sheet
- Country of origin
- Italy
- Vehicle brand
- Kymco
- Vehicle
- Kymco AK 550 ie 4T LC euro 4 2017→2020 (SAA1)
Kymco AK 550 ie 4T LC euro 5 2021→ (SBA1)
